Coca cola Filling Prodcution Line (DCGF40-40-10)

FOB Price:Price can be negotiated

Production Capacity:200 sets per year

Payment Terms: T/T Or L/C

Update Time:2025-07-05

Contact Supplier

Product Description

Coca Cola Filling Prodcution Line (DCGF40-40-10):

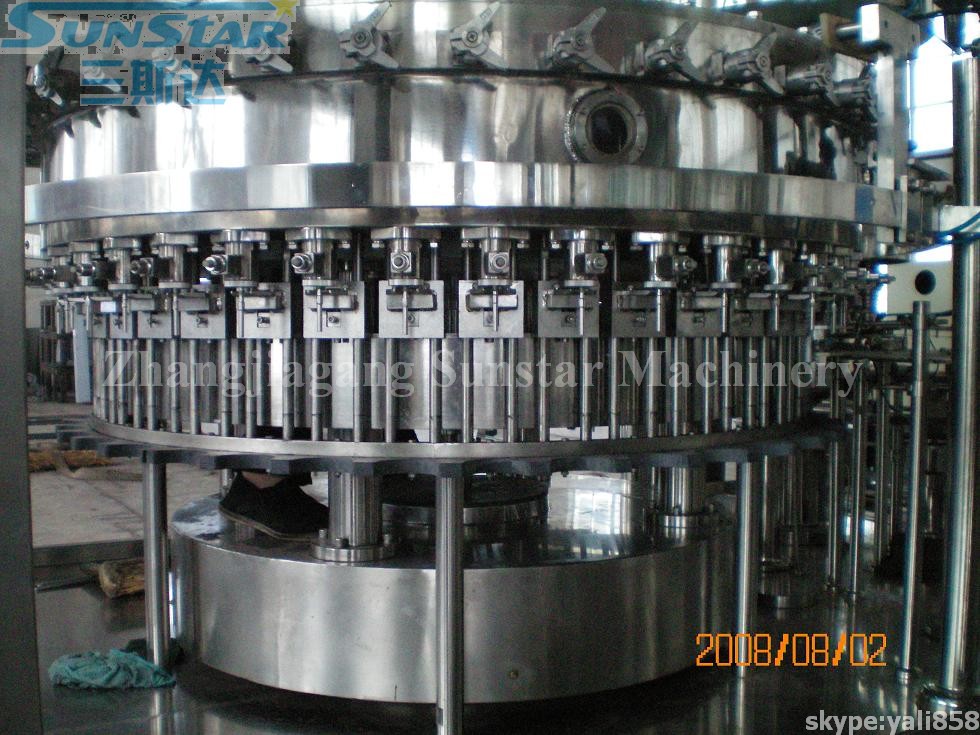

Coca cola Filling Prodcution Line (DCGF40-40-10)--- The coca cola filling production line was used for washing, filling and capping carbonated beverage, like Coco cola, soda water, carbonated Flavour water and so on. The filling type is isobaric pressure filling, to prevent the CO2 drink to form when filling. It combines washing, bottling and capping into one machine. The full procedure is automatics. The adjustment for bottle type of each unit is fulfilled by turning handle; it is simple, easy and quick. The machine applies advance Mitsubishi programmable controller (PLC) to control machine’s auto-running, the input bottle chain way changes its speed by frequency converter. Cooperate more stable and reliable.The isobaric filling method (D type machine) is applied for PET bottle; plastic bottle to fill CO2 contained drinks. It is the ideal top choice equipment of drinks enterprise.
The machine includes several sections listed bellows:
(1). Drive unit
(2). Locating bottle device
(3). Input bottle device
(4). Rinsing bottle device
(5). Rinsing-filling transferring bottle device
(6). Filling device
(7). Filling-capping transferring bottle device
(8). Capping device
(9). Cap unscrambling device
(10). Output bottle device
(11). Frame
(12). Electric control system

Technical parameter:

Model:DCGF40-40-10

Capacity: 12000-15000B/h(base on 500ml)

Filling temperature: 0 -5 ℃

Spraying pressure: 0.2-0.25Mpa

Filling pressure:0.15-0.35Mpa

Bottle type: plastic bottle

Bottle diameter: 50 -110mm

Bottle height: 170 -330mm

Coca cola filling production machine, coca cola filling production line, coca cola making machine, coca cola process machine, coca cola bottling machine, coca cola packing machine
