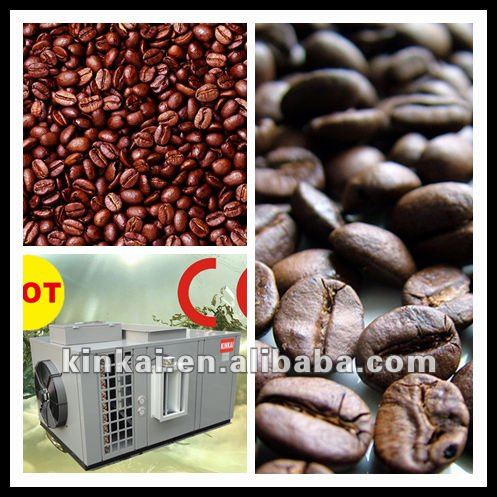

cocoa bean or powder Air source drying machine heat pump dryer,China Kinkai price supplier

Product application :

Product introduction:

1.Heat pump dryer running cost just as 40% of oil dryer, 50% of coal burning boiler, 30% of electric boiler.Heat pump dehumidification drying method of the closed cycle, saving costs; no exhaust waste heat emissions, no noise pollution, environmental protection;

2.Using our patented technology: circulating heating & dehumidification, broaden the application of a dehumidifier in industrial drying, drying performance better than ordinary heat pump dehumidification drying energy saving over 30%;

3.median and low temperature drying method(15-50 °C /60 °C /80 °C ),similar nature drying.

4.Drying process material no deformation, no cracking, no-discoloration,no deterioration, and no oxidation, thorough drying, after drying and rehydration, less loss of nutrients, the long storage period, more than any conventional drying equipment to more effectively protect the color of the dried material, smell, taste, individual

form and active ingredients;

5.adopt closed type circulating heating or cooling drying,suitable for inflammable and explosive materials, poisonous material,Pungent odor of materials,easily oxidized material etc;

6.installation and operation easily,just need connecting with drying chamber by wind pipe;

7.adopt international brand name compressor, expansion valve etc;

8.many protection: phase protection, lack phase protection, overloading protection, high pressure protection and low pressure protection etc.

9.Nice design, small dimension.

10.intelligent controller, make sure heat pump dryer stable working.

  How they work?

Following is the working principle drawing

Heat Pumps operate in a similar way to a refrigerator – but in reverse. Heating and cooling are achieved by moving a refrigerant through various indoor and outdoor coils and components. A compressor, condenser, expansion valve and Evaporator are used to change the state of refrigerant from a liquid to hot gas and from a gas to cold liquid.



MODEL				JK10RD	JK06RD
Suitable for drying chamber		m3		30-50	20-30
Input power		KW		11.25	6.2
Heating capacity		KW		35	22
Cooling capacity		KW		25	16
Dehydration capacity		L/H		40	20
Temperature		°C		60/75	60/75
Working ambient temperature		°C		-10~45	-10~45
Refrigerant				Mixture type	Mixture type
Compressor type				Scroll	Scroll
Compressor brand		Brand		Copeland/Danfoss	Copeland/Danfoss
Compressor quantity		units		2	1
Noise		dB(A)		60	60
Power supply		V		380	380
Frequency		HZ		50	50
Fan motor for drying 1		Power input		550W	1100W
(1 units)		Wind volume		5870m3/H	8513m3/H
		Rotate speed		1400R/M	2900R/M
Fan motor for drying 2		Power input		750W
(1 units)		Wind volume		4426m3/H
		Rotate speed		2900R/M
Fan motor for exchange air		Power input		150W	250W
(1 units)		Wind volume		2000m3/H	2000m3/H
		Rotate speed		700R/M	700R/M
Fan motor for exchange fresh air		Power input		6W	6W
		OPEN		Exchange fresh air	Exchange fresh air
		CLOSE		Drying	Drying
Fan motor for evaporator		Power input		2*550W	780W
(2 units)		Wind volume		2*6000m3/H	6000m3/H
		Rotate speed		2*1410R/M	1410R/M
Wind pipe connector size 1		mm		400*400	400*400
(2 supply-air outlet )
Wind pipe connector size 2		mm		1150*560	1150*435
(1 supply-air outlet)
Dimension(L*W*H)		mm		2055*1370*1690	2170*1490*1300
Weight	Net weight	Kg		480	300
	Gross weight			540	350
