cocoa grinder machine cocoa powder machine fine grinding mill spice grinder corn crusher industrial ,China haixiang price supplier

cocoa grinder machine cocoa powder machine fine grinding mill spice grinder corn crusher industrial

FOB Price:Price can be negotiated

Payment Terms: US $800 - 5,000 / Set

Update Time:2025-05-13

Contact Supplier

Product Description

The machine is applied in the industries of pharmaceutics,chemical .food and etc.

Specifications

1. Model WF Micronizer Machine
2.Model:WF
3.Size of input:less than 1
4.size of output:10-200

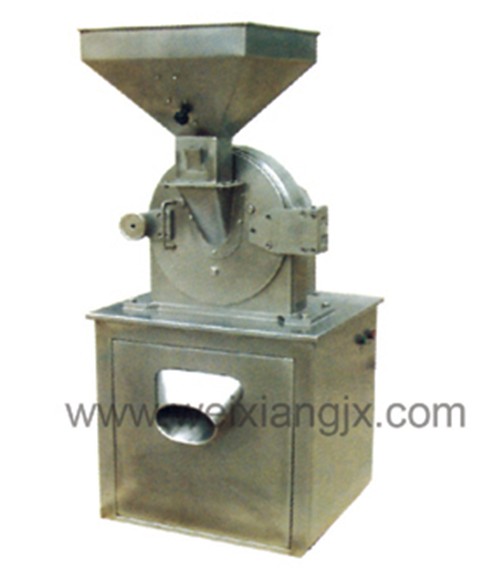

Model WF Micronizer

Main Application:

Model WF Micronizer is widely used in the industries of pharmaceutics,chemical and foodstuff.

Operating Principle:

There are two options of the machine,hammer rotor and Cutter disc.For the hammer rotor,material is fed from the hopper and gets crushed by the hammer rotor with high speed.Processed material runs to the exit automatically because of the rotary centrifugal force.the machine is designed according to GMP standard and made of stainless stell.The advantages of it are very little dust,high utilization of the raw material and cost reduction.Its performance is up to the international advanced level.

Nowadays, Jiangyin Haixiang Machinery Co.,ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Name of equipment	Model	Production Capacity ( kg/h )	Spindle speed ( r/min)( rpm )	Feeding Size ( mm)	size of output granules ( crushing fineness ) (mm)	crushing Motor Power ( kw)	overall dimension mm	Weight KG
Model B Universal Crushing Set	15B	10-50	6000	6	60-120	2.2	550400850	85
	20B	60-150	4500	6	40-120	4	5506001250	180
	30B	100-300	3800	6	40-120	5.5	6007001450	250
	40B	160-800	3400	10	40-120	7.5	8009001550	360
	60B	300-1000	2800	12	40-120	15	9009001880	550
	80B	400-2000	2000	12	40-120	22	11009501960	850
	100B	500-3000	1500	12	40-120	30	135010002100	1200

	Capacity(kg/h)	Size of input granules	Size of output granules
WF180B	30-120	less than 1	10-200
WF130B	20-150	less than 1	10-200

Power(KW)	Overall Size(L×W×H)	Weight(kg)
2.2	450×550×1350	80
1.1	400×500×1250	55

the machine are made by the matericals Stainless Steel and according with GMP standards

the above pic and details are just for your ref , if you are interested in it , pls contact me directly as the below information,I will show you more parameters of the machine.

we could customized the machine as your oder

skype: Lala_jiangyin

Condition:	New	Type:	Pulverizer	Place of Origin:	Jiangsu China (Mainland)
Brand Name:	haixiang	Model Number:	15	Voltage:	100-300V
Power(W):	3-11KW	Dimension(LWH):	4005001250mm	Weight:	55KG
Certification:	ISO9001,accord with GMP standard	Warranty:	one year warranty	After-sales Service Provided:	Engineers available to service machinery overseas
