cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling ,China TOPSPACK price supplier

cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling
FOB Price:Price can be negotiated
Production Capacity:50 Set/Sets per Month
Update Time:2025-06-09
Product Description

High Efficiency, Corrosion Resistance
1,material:Ss 304
2,Have cooling function
3,price competitive
4,High efficient

Main Use:

Grinder is mainly applied to food (sesame seeds, red dates, sugar, rice, corn, starch, oats, flour, beans, peas, Lentils and spices, cocoa powder, POTATO powder, coffee, salt, milk, onion, dehydrated vegetables, glucose , oat hull, husk, herbal flavors and fragrances), chemical (polyethylene, PVC, polystyrene, polyvinyl alcohol, limestone, gypsum, paints, pigments) grinding, especially for oily, viscous material.



Main features:

Grinding machine inside adopts high-speed rotary grinding wheel cutter, machine inside is with large air volume, not easy to get heating. It has advantage of stable running, easy disassembly and cleaning, low noise, good effect for the smash.

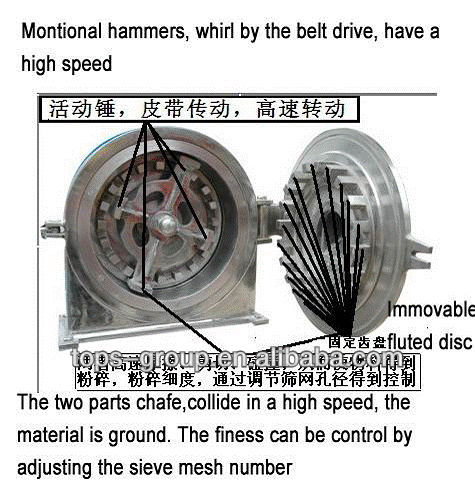

Work Principle:

1. The raw material is sent into the machine hopper by the feeder conveyor, then leaks into the crashing cabin.

2. The leather belt driven by motor spurs the motional hammers whirling in a high speed, the hammers chafe, collide with the immovable fluted disc in a high speed, then the raw material is ground.

3. The ground powder will leaks from the screen stencil, gets out from the discharge hole, stored inside the bag.



Technical parameters:

Model

TP-GM- 20 B

TP-GM-30B

TP-GM-40B

TP-GM-60B

Capacity (kg / h)

60-100

100-300

160-800

500-1500

Feed size (mm)

<6

<10

<12

<15

Grinding fineness (mesh)

3-120

Spindle speed (r / min)

4500

3800

3400

2800

 Motor Power (k w)

4

5.5

7.5

11

Weight (kg)

150

250

380

550

Dimensions (mm) (L× W× H)

960*750*1750

1000×900×1680

1200×650×1550

1350×750×1680







cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling cocoa grinder machine/coffee beans grinder machine, Chocolate Fine Grinding Machine |coffee milling











Our Promise

Top and consistent quality, Reliable and excellent after-sale service!

Type:
Other
Condition:
New
Application:
Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware
Packaging Type:
Cartons,Case
Packaging Material:
Glass,Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
3p 380V
Power:
4/5.5/7.5/11
Place of Origin:
Shanghai China (Mainland)
Brand Name:
TOPSPACK
Model Number:
TP-GM-20/30/40/60B
Weight:
150/250/380/550
Dimension(L*W*H):
960*750*1750/1000*900*1680/1200*650*1550/1350*750*1680
Certification:
CE Certificate
Model:
TP-GM-20/30/40/60B
Capacity (kg / h):
60-100/100-300/160-800/500-1500
Feed size (mm):
<6/<10/<12/<15
Grinding fineness (mesh):
3-120
Spindle speed (r / min):
4500/3800/3400/2800
Motor Power (k w):
4/5.5 /7.5/11
Weight (kg):
150/250/380/550
Dimensions (mm) (L* W* H):
960*750*1750/1000*900*1680/1200*650*1550/1350*750*1680
