cocoa powder filling machine,China Paixie price supplier

cocoa powder filling machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $10,000 - 22,000 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

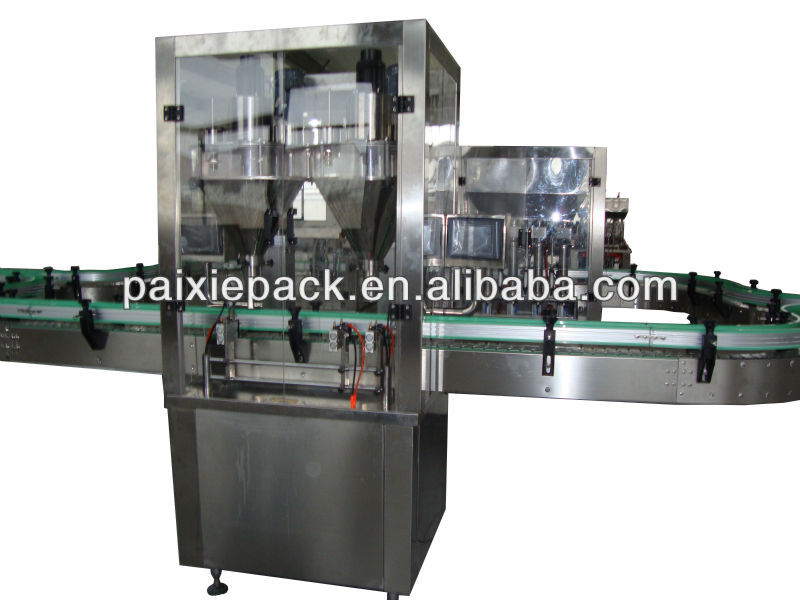

COCOA POWDER Filling Machine
easy to oprate
Long service life
High quality and reasonable price
design life of 10 years

Powder filling machine

(line)bottle putting table-filling machine-capping machine-labeling machine-package table

Overview:
This Machine adopt auger to measure and fill powder and granular, with high filling speed and filling accuracy. The auger is driven by servo motor. It fits more to the fluidic or low-fluidity materials, like coffee powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.

Parameter:

Powder filling machine	1 filling nozzle	2 filling nozzles	4 filling nozzles
Packaging Weight	10-3000gram
Metering Mode	Auger rotation filling
Accuracy	10-100gr ≤±1%/ 100- 500g ≤±0.8%/ 500-3000gr ≤±0.5%
packaging Speed	1000-1200bottles/hour (200g)	2000-2500bottles/hour (200g)	4000-4500bottles/hour (200g)
Power Supply	3p380V 50-60Hz
Total Power	1.2kw	1.5Kw	1.8Kw
Total Weight	500Kg	700Kg	1000Kg
Overall Dimensions	1500×800×1850mm	20008001850	28008001850
Hopper Volume	22L	22L *2	22L *4

The surface of whole machine is made by stainless steel 304. Knockdown transparent hopper is easy cleaned.
The hopper is specially made with a cover and a mix in it to prevent dust and make the powder even.
The metering system is adjustable auger, which is driven by servo motor, with quick speed and high filling accuracy.

PLC+ Human-computer touch screen control system: easy adjustment and easy operation. It also can save the parameters for later use.

The powder filling machine can be used with the capping machine, labeling machine and so on.

The machines can be customized according the samples and your requirement. please contact us by email. i will reply to you in time with the detailes.

Type:	Filling Machine	Condition:	New	Application:	Food,Beverage,Commodity,Medical,Chemical
Packaging Type:	Cartons,Cans,Bottles,Barrel	Packaging Material:	Plastic,Metal,Glass,Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220v or 380v	Power:	1.5kw
Place of Origin:	Shanghai China (Mainland)	Brand Name:	Paixie	Model Number:	PX-PF1200
Dimension(LWH):	11009802100	Weight:	850kg	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	material quality:	ss304 and ss316

Company Profile

Name: Shanghai Paixie Packing Machinery Co., Ltd.

Main Products: filling machine,packing machine,mixer machine,sealing machine,filling line

Business Type: Manufacturer

Total Employees: 11 - 50 People

Established Year: 2012

Main Markets: Domestic Market, Mid East, Africa, South America, Oceania

Address: Minhang

Shanghai Paixie Pacing Machinery CO.,LTD is a manufacturer of Bottle feeding machine, bottle washer,Filling machinefor bottles,filling machine for cans,packaging machine for bags, aerosol spray filling machine,liuqiud filling machine, jam filling machine,labeling machine, mixer machine, Sealing machine, capping machine,Charging machine, Weigher, Ink Jet Printer, Water-bath Checking, Capping machine, Air compressor, etc, with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food medicine industry hemical industry and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success! more
