Cocoa Powder Grinder Machine With CE,China Jinbao price supplier

Main Usage

This machine is widely applied for such trades as pharmaceutical,chemical and foodstuff ect.It is a new generation coarse crushing equipment combining crushing and dust collection as a whole.

Working Principle
By means of relative motion between movable and fixed fluted discs, the material is crushed by the impact and friction of the teeth and the impact among material. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utitization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.

Detail Pictures of JB Series cocoa powder grinder machine with CE

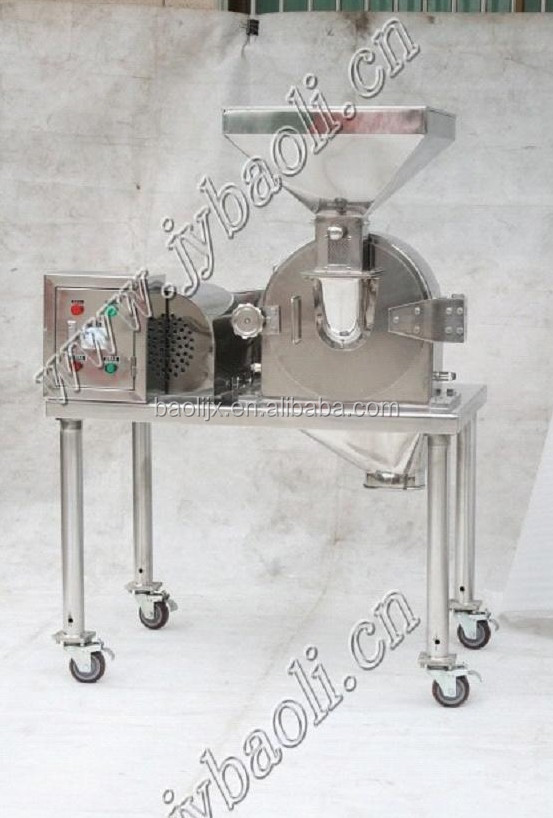

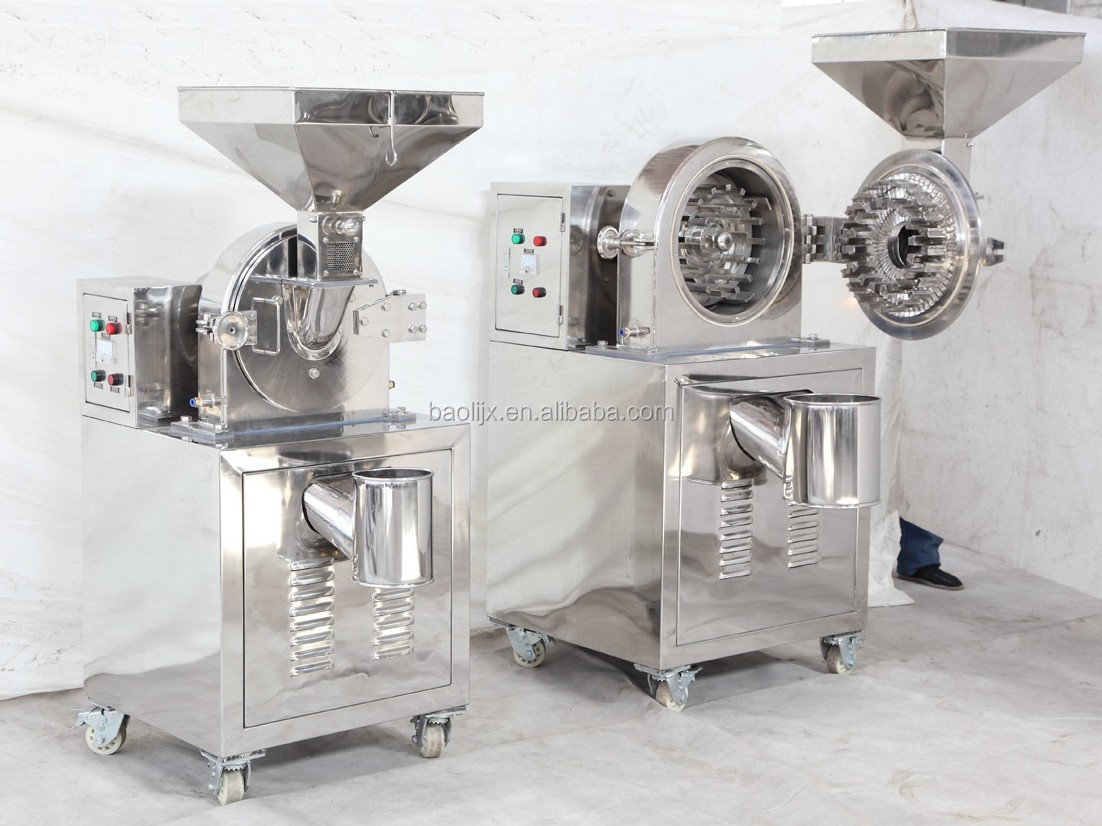

Outside View

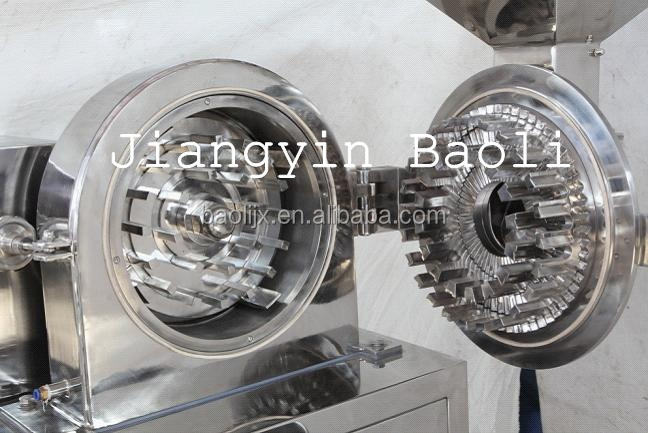

Inner Structure

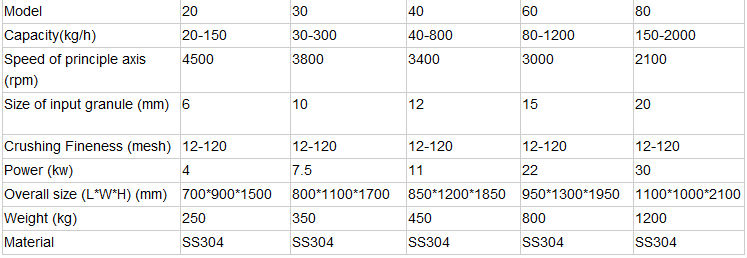

Technical Parameters

Other Recommended

If you want other machines, please contact me !

Our Packing Details

Our Factory

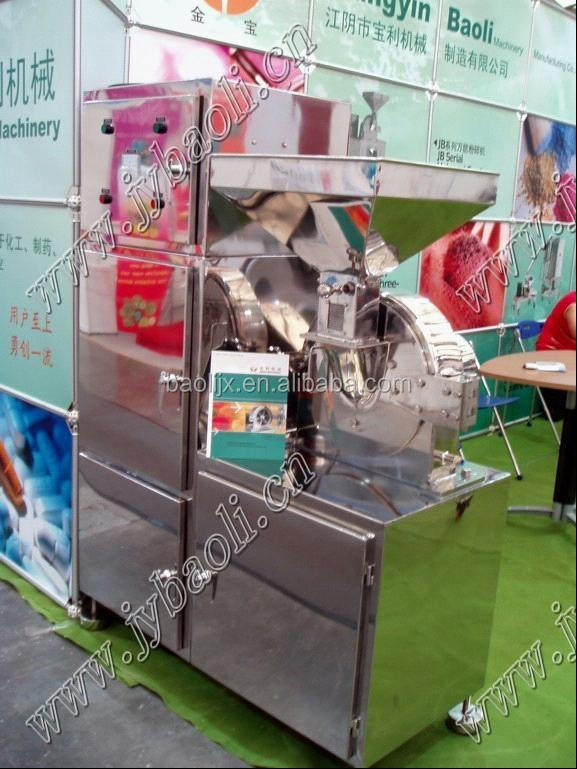

The   Exhibitions We  Attended

Certification

If you want to send inquriy to me about our product, could you please tell me?

1)  What material you want to grind, is it dry, what is the size of feed material ?

2)  What capacity you expect ? (kg/h)

3)  What mesh or mm or micron(size) of the powder you want?

4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.

     (We only provide 3P, because our machines are all for industrial use,not for family.)

5)  Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.

Then our communication will be more efficient.
