JD200 Soup Powder Packaging Machine

Applications of Soup Powder Packaging Machine :

This Soup Powder Packaging Machine is specialized in various powder such as milk powder, coffee powder, seasoning, chemical and medical powder etc packing with preformed stand up pouch, flat bag etc.

Function and Characteristics of Soup Powder Packaging Machine :

1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

3.Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.


4.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and raw materials.


5.The part where touch to the material is made of stainless steel.

Description of Soup Powder Packaging Machine   :

The Soup Powder Packaging Machine is made of 3 parts as follows:

1.JD200-6 rotary packing machine

2.JPL-500 Auger Filler

3.JE-SC3 Screw Elevator

1.Model of JD200-6 Rotary packing machine

1-Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2-Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.

3-Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

4-Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.

5-Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.

6-The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.

7-It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.

8-Use the plastic bearing, don't need put on oil, less pollution.

9-Use no oil vacuum pump, avoid polluting the environment in the production.

10-The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

11-Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

12-With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.

13-The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper

2.Model of JPL-500 Auger Filler:

1-This type can do measuring and filling work. Due to the special design, so it fits more to the flowing or low-fluidity materials, like milk powder, albumen powder, solid drink, white sugar, dextrose, coffee powder, pharmaceuticals, granular additive, dyestuff, and so on.

2-The surface of whole machine is made by stainless steel material except of motor. Knockdown transparent hopper, which could be washed without toolings.

3-Servo motor driving screw is characteristics of no easy abrasion, high-precision orientation, setup rotate speed, stable performance

4-PLC control system is characteristics of stable working, anti-jamming, high precise weighing.

5-Touch screen controller show clearly working status, operation sign, fault state and production statistics. Operation is simple and intuitionistic.

6-Save the parameter of each product to later use. 7 recipes of magisterial formula save at the most.

3.JE-SC3 Screw Elevator:

Charging Capacity: 3m ³ /hour

Hopper Volume: 230L

Powder supply: 3Phase 380V 50Hz/60Hz

Total power: 815W

Overall Dimensions of hopper: 1000x800x900mm

Charging Height: 1800mm

   Main Technical Parameter of Soup Powder Packaging Machine   :

Sample Photo of Soup Powder Packaging Machine  :

Product Process of Soup Powder Packaging Machine : Feeding and giving pouch------Coding date------Open pouch------Filling-----Exhaust and Sealing-----Neaten and finished product output:

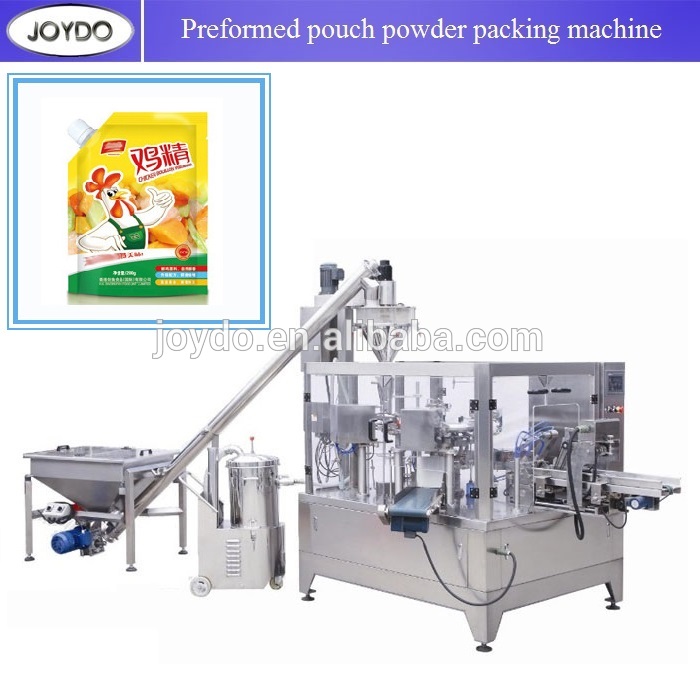

Machine Photo of Soup Powder Packaging Machine  :
