Cocoa Powder Packaging Machine DXDF-80

FOB Price:Price can be negotiated

Production Capacity:60 Set/Sets per Month

Payment Terms: US $3,000 - 8,000 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

COCOA POWDER Packaging Machine
1.PLC control + English display screen
2.Auger filler (1-50 gram)
3.CE,BV certificate

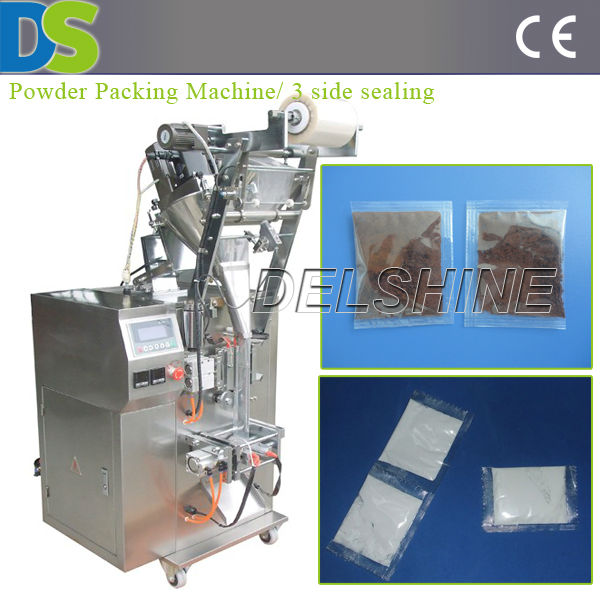

Automatic Cocoa Powder Packaging Machine DXDF-80

The Application of Cocoa Powder Packaging Machine:

It is quantitative packaging for powdery materials in industries of Food, medicine and Chemicals etc. such as powder, milk powder, flour, Spices powder, flower powder etc.

The Packaging Materials of Cocoa Powder Packaging Machine:

The Heat Sealable Laminated Film like BOPP, PET/PE, PET/Plated AL/PE, Paper/PE etc.

The Specifications of Cocoa Powder Packaging Machine:

Model	DXDF-80
Power supply	220V, 50Hz, single phase
Power	1.2 KW
Speed	30-60 bags/min (depend on the material and specification)
Filling capacity	1-50 gram
Film width	Maximum 200mm
Bag size	Length:40-120mm, Width:20-100mm

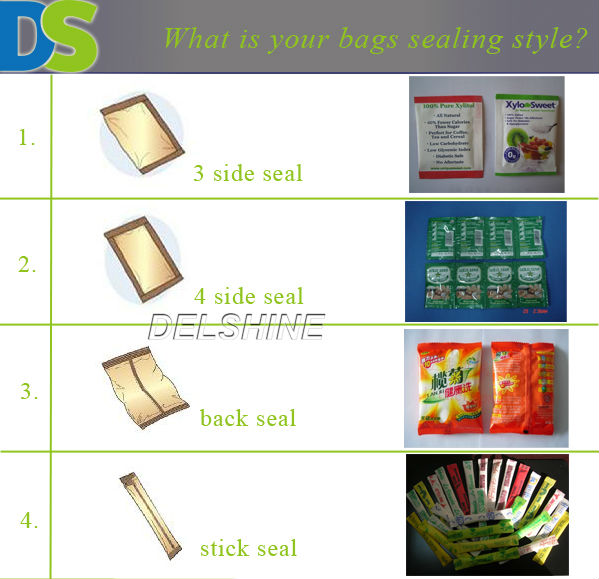

Style of bag sealing	3 side seal / 4 side seal / back seal / stick seal
Measuring method	auger filler
N.W./G.W.	185kg / 250kg
Dimension	(L)1000 x (W)700 x (H)1650 mm

Note: -- C ustomizing the machine as per your specific needs.

-- Additional bag formers and cups available upon request, we cater to different power supply requirements.

The Advantages of Cocoa Powder Packaging Machine:

1- Compact design with caster wheel for easy mobility.

2- PLC control and all parameters can be set and displayed on the English screen.

3- Bag-making system adopts step motor with high precision(error is less than 1mm).

4- Heat sealing controlled by horizontal and vertical temperature controller can be adjusted separately with good heat-balance to ensure the seal in good airtightness and quality, suit for a variety of packaging materials.

5- Automatic and reliable intelligence photocell tracking system.

6- Pneumatic and electric driven system for optional.

7- Customer references available.

The Working Process of Cocoa Powder Packaging Machine:

Automatic weighing—automatic filling—automatic bagging—automatic sealing—automatic cutting—automatic counting—automatic printing.

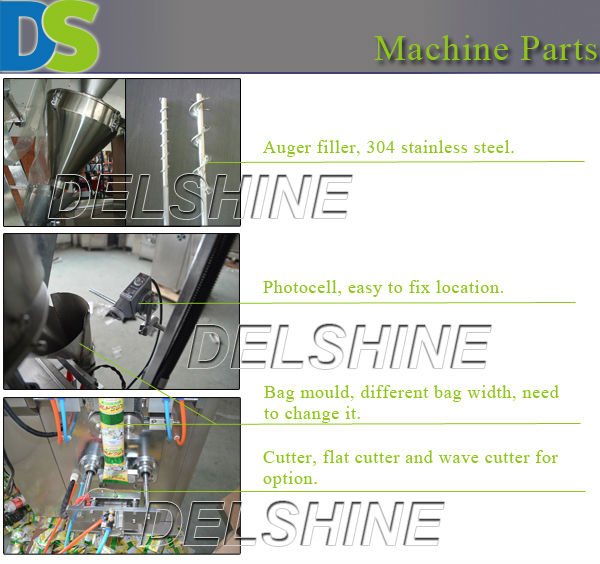

The Optional Parts of Cocoa Powder Packaging Machine:

Warranty and After-Sale Service of Cocoa Powder Packaging Machine:

* 1 year warranty.

** Within warranty period, we will provide free parts for replacement if any problem belongs to us. (delivery cost paid by customer).

*** After the warranty period, the spare parts for replacement are offered based on certain charge.

**** The price we quote doesn't include the on-site installation and testing service, if you need, all the freight fare and accommodation will be paid by buyer.

Contact: Allen Ni

Mob: 0086-13819112630

Skype: allen.delshine

Thank you very much for your inquiry!!!

Condition:	New	Application:	Food, chemical, medicine industry	Packaging Type:	Bags
Packaging Material:	composite film,non-woven fabric,paper-plastic film	Automatic Grade:	Automatic	Driven Type:	Electric and pneumatic for optional
Power:	1.2 KW	Place of Origin:	China (Mainland)	Brand Name:	Delshine
Model Number:	DXDF-80	Measuring range:	1-50 ml	Packing speed:	30-60 bags/min
Measuring mode:	auger filler	Material of machine:	stainless steel 304	Power supply:	AC220V single-phase 50hz/380V 3-phase 50hz
Applicable for:	powder, flour, milk powder, spice powder etc.	Functions:	measuring, bag making, filling, sealing, cutting, counting, printing.	Experience:	more than 10 years
Type:	Packing Machine
