Cocoa powder processing conveyor system

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Update Time:2023-08-24

Contact Supplier

Product Description

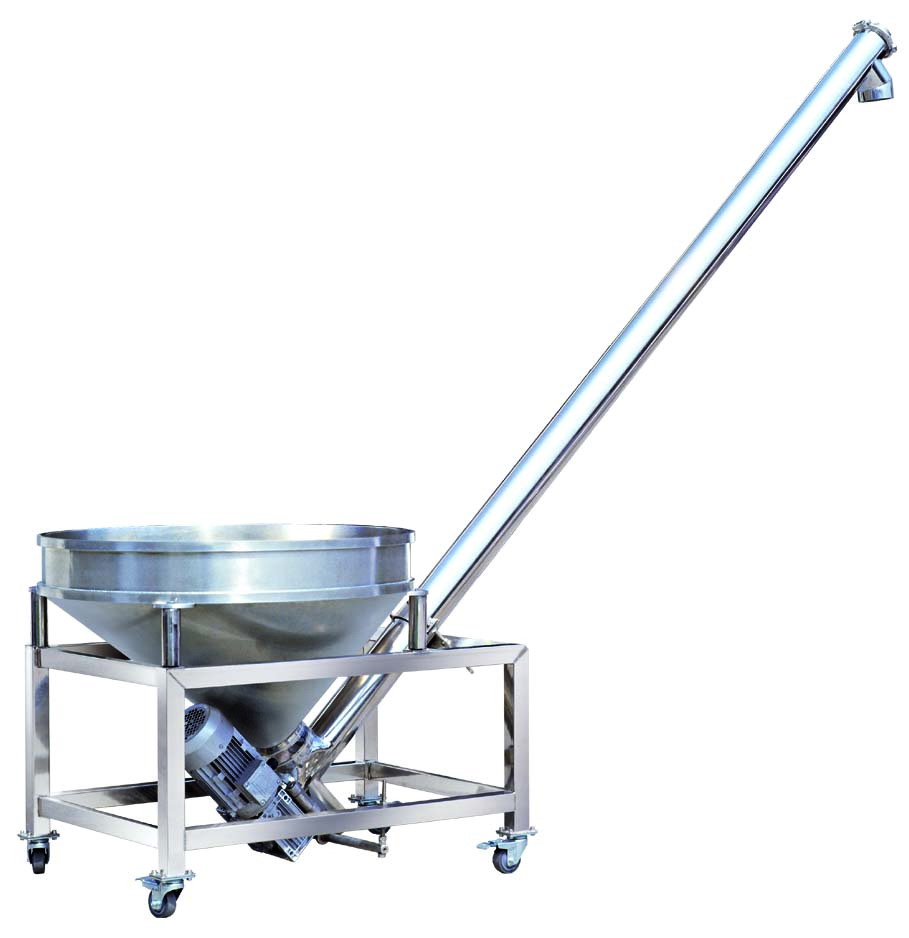

Screw Conveyor uses screw or auger to convey powder products in packaging system.Screw is made of full welded stainless steel.

FM-3G3 Screw Conveyor:

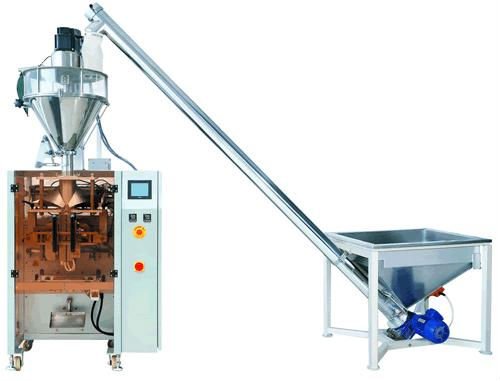

Worked with Packaging Machine for feeding variety powdery products.
Two motors used for screw feeding and hopper vibrating, separately control.
Products storage hopper can be separated from the screw and tube easily.
Flexible Reversible running screw, fast dismountable screw and discharge gate insure easy cleaning.

Name	Screw conveyor
Model	FM-3G3
Construction	Full stainless steel
Conveying capacity	3cbm/h to 7cbm/h
Diameter of pipe	φ102mm;φ114mm;φ141mm;φ219mm
Pipe angle	General 45 degree,30degree,60degree
Discharge Height	General1800mm,and other size available
Hopper size	860x900x1100mm; 150L
Power	550W to 2.5kW
Voltage	3-phase, 380V, 50-60Hz

Condition:	New	Type:	Screw Conveyor	Material:	Stainless Steel
Material Feature:	Heat Resistant	Structure:	Conveyor System	Load Capacity:	500 KG
Place of Origin:	Guangdong China (Mainland)	Brand Name:	FOCUS	Model Number:	FM-3G3
Voltage:	3P 380V 50/60Hz	Power(W):	0.81KKW	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Conveyor type:	Screw and auger filler	Application:	Powder Filling Machine
Screw type:	Flight welded	Drive mode:	Electric motor	Hopper volume:	150 liters
Hopper vibration:	Eletric motor	Screw speed:	Inverter adjustment	Mobile ability:	Feet with wheels
Tube diameter:	102 to 219 mm	Outlet height:	1 to 6 meters

Company Profile

Name: Focus Machinery Co., Ltd.

Main Products: bucket elevator,Belt Conveyor,screw conveyor,Rotary table,vibratory feeder

Business Type: Manufacturer

Total Employees: 51 - 100 People

Established Year: 2008

Main Markets: Domestic Market, North America, Mid East, Western Europe, Southeast Asia

Address: Yang e Industrial Zone,LunjiaoTown,Shunde District,Foshan City.Guangdong Province of China

Focus Machinery Co.,Ltd is an advanced and dynamic factory that has established itself as one of the most qualified conveyors suppliers in China. including bucket elevator, belt conveyor, screw conveyor, rotary table, vibratory feeder,finished conveyor etc.

We supply high quality conveyors, which reach CE standard and have been receiving good feedback from our clients all around the word.

We cherish our workers, they are our biggest asset. we would make sure they work here satisfied and feel valuable.

Your trust would push us forward, let's grow together. more
