cocoa powder vibrating screen,China XBM price supplier

cocoa powder vibrating screen

FOB Price:Price can be negotiated

Production Capacity:55 Set/Sets per Month

Payment Terms: US $1,000 - 50,000 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

COCOA POWDER vibrating screen
simple structure
high screening efficiency
CE , ISO

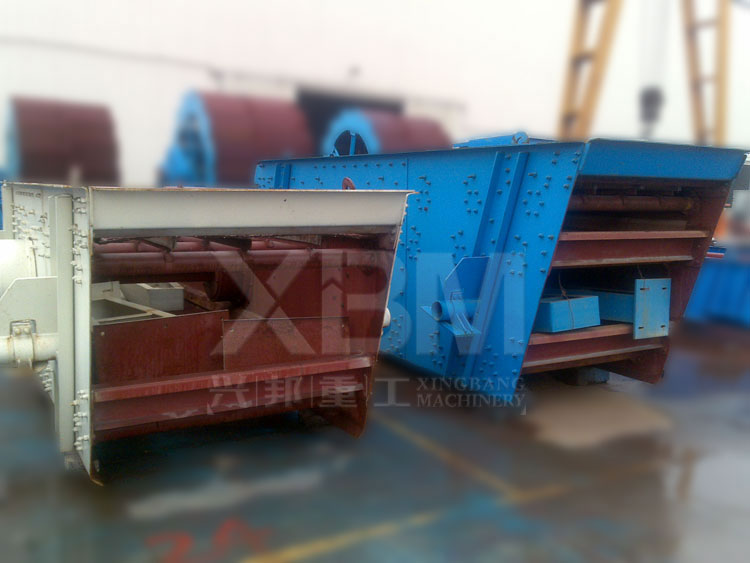

cocoa powder vibrating screen

Description of vibrating screen

Type:Mining Machinery

Feed size:< 400 mm
Production capacity:8-800 T/H

Application: Mining, building materials, transportation, energy, chemical industry product particle size classification.

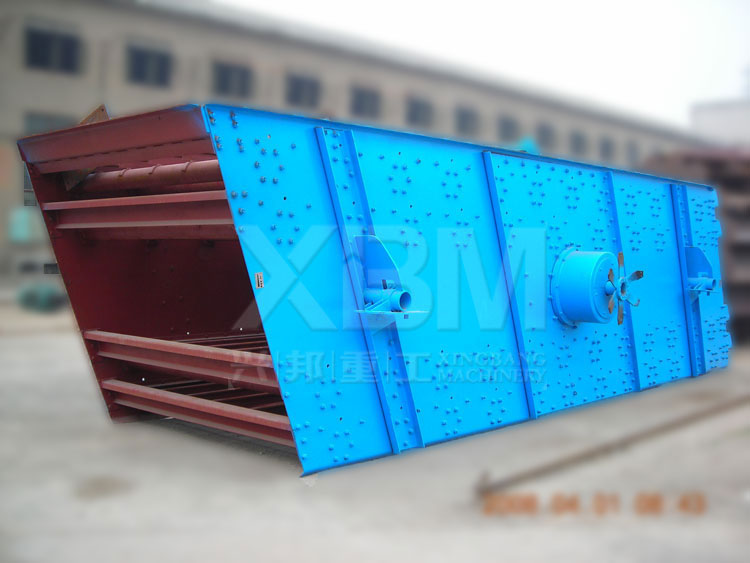

YKSeries cocoa powder vibrating screen absorbs Germany technology with high efficiency. The amplitude of the vibrating screen can be adjusted. The screening line is long and specification of materials is various, and it is also of reliable structure, strong exciting force, high screening efficiency. It is widely used in sieve different sizes of aggregate. It is also applied to coal dressing, ore dressing, building material, electric power and chemical industries.

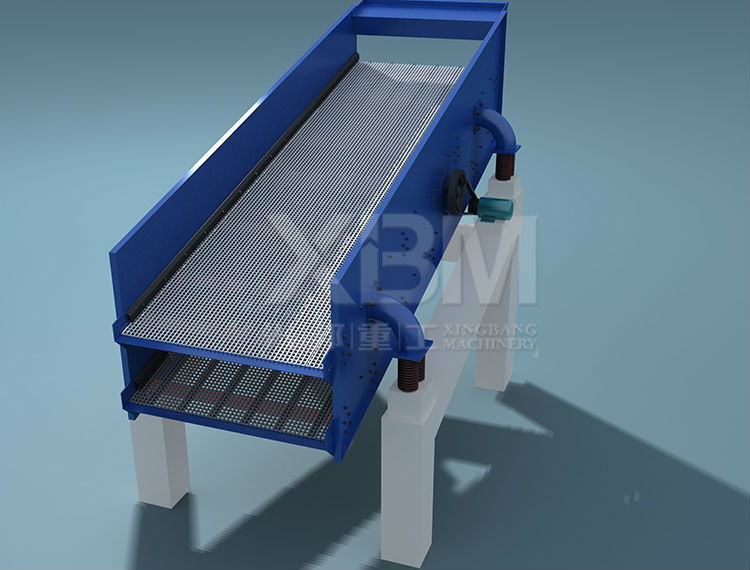

Working Principle and Machine Structure

This series of cocoa powder vibrating screen do circular motion ,it is a new multilayer ,high−efficient vibrating screen. cocoa powder vibrating screen use the eccentric shaft vibration exciter and partial block to adjust the amplitude.long materials streaming line, different screening specifications, it is with reliable structure ,strong vibrating force, and high screening efficiency, low noise, durable, easy maintenance, use safety, etc. the vibrating screen widely used in mining, building materials,

Parameters of vibrating screen

Model	Sieve layer	Sieve area (m²)	Mesh size (mm)	Max feeding size (mm)	Processing capacity (m³/h)	Vibrating Frequency (r/min)	Double amplitude (mm)	Motor power (kw)	Sieve obliquity (°)	Sieve specification (mm)	Total weight (kg)	Dimensions (L×W×H) (mm)
2YK1225	2	6	4-50	400	8-60	800-970	8	5.5	20	1200×2500	3500	2930×1860×870
3YK1225	3	9	4-50	400	10-70	800-970	8	5.5	20	1200×2500	3850	3070×1860×1210
2YK1230	2	7.2	4-50	400	12-78	800-970	8	7.5	20	1200×3000	4200	3430×1860×870
3YK1230	3	10.8	4-50	400	13-80	800-970	8	7.5	20	1200×3700	4600	3570×1860×1210
2YK1237	2	8.88	4-50	400	15-86	800-970	8	7.5	20	1200×3700	4600	4050×1860×870
3YK1237	3	13.22	4-50	400	16-90	800-970	8	7.5	20	1500×3500	5200	4270×1860×1210
2YK1535	2	10.5	5-50	400	20-125	800-970	8	11	20	1500×3500	5890	4120×2210×1230
3YK1535	3	15.75	5-50	400	21-125	800-970	8	11	20	1500×3500	6700	4360×2210×1610
2YK1545	2	13.5	5-50	400	22-150	800-970	8	15	20	1500×4500	6330	5120×2210×1230
3YK1545	3	20.25	5-50	400	22-150	800-970	8	15	20	1500×4500	6800	5360×2210×1610
4YK1545	4	27	5-50	400	22-155	800-970	8	18.5	20	1500×4500	7800	5930×2210×2060
2YK1548	2	14.4	5-50	400	22.5-162	800-970	8	15	20	1500×4800	6980	5420×2210×1230
3YK1548	3	21.6	5-50	400	22.5-162	800-970	11	15	20	1500×4800	7700	5660×2210×1610
4YK1548	4	28.8	5-50	400	22.5-162	800-970	8	18.5	20	1500×4800	8700	6230×2210×2060
2YK1848	2	17.28	5-80	400	25-206	750	8	15	20	1800×4800	9080	5420×2550×1420
3YK1848	3	25.92	5-80	400	32-276	750	8	18.5	20	1800×4800	9600	5660×2550×1780
4YK1848	4	34.54	5-80	400	32-285	750	8	22	20	1800×4800	11100	6290×2550×2160
2YK1854	2	19.44	5-80	400	32-312	800-970	8	18.5	20	1800×5400	10150	5960×2550×1420
3YK1854	3	29.16	5-80	400	32-312	800-970	8	22	20	1800×5400	10840	6260×2550×1780
4YK1854	4	38.88	5-80	400	32-336	800-970	8	30	20	1800×5400	12840	6830×2550×2160
2YK2160	2	25.2	5-100	400	50-475	970	8	30	20	2100×2600	11780	6720×2840×1530
3YK2160	3	37.8	5-100	400	50-475	970	8	30	20	2100×2600	12800	7030×2840×1910
4YK2160	4	50.4	5-100	400	50-497	970	8	37	20	2100×2600	14800	7300×2840×2380
2YK2460	2	28.8	5-100	400	65-550	970	8	37	20	2400×6000	15600	7020×3140×1530
3YK2460	3	43.2	5-100	400	70-620	970	8	37	20	2400×6000	17600	7300×3140×1910
4YK2460	4	57.6	5-100	400	80-680	970	8	45	20	2400×6000	19600	7600×3140×2380
2YK3072	2	14.3	5-100	400	200-700	750	8	22×2	20	3000×7200	23600	7200×4520×4184
3YK3072	3	21.4	5-100	400	230-800	750	8	22×2	20	3000×7200	25500	7200×4520×4684

Note: The parameters are just reference, pls do not hesitate to let me know if you have any questions.

Advantages of vibrating screen

What is advantages of XBM cocoa powder vibrating screen ?

1. The strong vibration of the screen box reduces the phenomenon that the materials block the screen hole, so that the cocoa powder vibrating screen has high screening efficiency and production efficiency.
2. The cocoa powder vibrating screen has simple structure and the dismantling and changing of the screen surface is convenient.
3. The electricity consumed to screen every ton of materials is low.

Personalized reception: Offer the full and personalized service in the whole journey after you come to China.
Lifetime Technical Support: Offer one year of free equipment warranty and lifetime technical support.
Monitor Production Progress: You can monitor production progress personally any time after confirming the order.
Product Delivery: We have developed a long and good relationship with many shipping agents, such as APL, MSK, CSCL, MSC, etc.
Installation and Training: Send technicians to the client site for guiding the installation and adjustment, and training operators to complete the inspection and acceptance together with you.

More XBM service details please click here

Condition:	New	Type:	Circular	Application:	Ore
Place of Origin:	China (Mainland)	Brand Name:	XBM	Model Number:	Various
Voltage:	depend on the model	Power(W):	refer to the model	Dimension(LWH):	different
Weight:	depend on the model	Certification:	ISO 9001, CE,ISO,CE.	Warranty:	14 months
After-sales Service Provided:	Engineers available to service machinery overseas	vibrating screen color:	blue, yellow or customized	machine brand:	XBM
trade type:	factory direct sale	original:	Henan, China	factory area:	10000 ㎡
stuff number:	over 1000	product experience:	over 10 years	famous:	popular in Africa and South America
Transport:	MSK,MSC,CSL,etc.
