Food online > Products > Food Ingredients > Cocoa Ingredients >

cocoa powder weighing and filling machine,China JIABO price supplier

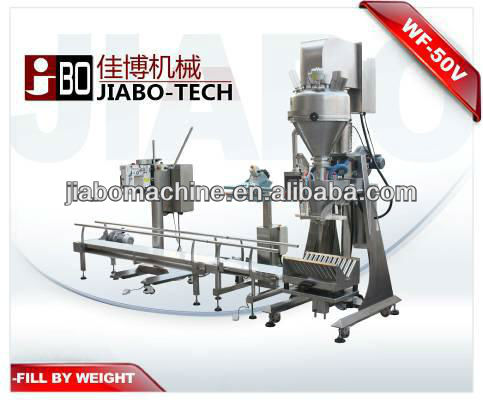

cocoa powder weighing and filling machine

FOB Price:Price can be negotiated

Production Capacity:15 Set/Sets per Month

Payment Terms: US $30,000 - 35,000 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

100L Hopper, Unique horizontal open hopper, easy for clean.
Roller Platform .
Weight: 0-50KG, Capacity:3bags/min

Applications:

Manual filling for free flowing and non free flowing powder & small granule

Fill-By-Weight Filler are use scales and laodcell components to determin an accurate weight reading before, during and after each fill cycle

Bucket, Multi wall paper & plastic bags, cardboard cartons, kraft bag etc

Weight: 0-50KG, Capacity: ≥ 3bags/minute

Filling Machine" ori-width="483" ori-height="400" />

Main Technical Parameters:

Model	WF50V
Products Filled:	Powder& Small Granule
Dosing Technique	Weighing
Filling Mode :	Veritcal auger, servo motor driven
Weigh/Fill Range	0-50KG
Fill Accuracy:	0-10KG, ± 3g, 10-50KG, ± 10g
Fill Speed:	≥ 3bags/minute
Packaging Type :	Bucket, Multi wall paper & plastic bags, cardboard cartons, kraft bag etc
Operation:	Manual Only
Delivery Time	Within 10 weeks.
Special Features:	Turnkey System Avaiable
Power Consumption	Single Phase, 2 4 0V,50HZ ,2.75KW
Air Consumption	0.1m3/minute, 0.6Mpa
Overall Dimension	1 095 × 1372 × 3030 mm
Net Weight	300KG

Characteristic:

n -100L Hopper, Unique horizontal open hopper, easy for clean

n - Fill by weight for big range weighing: 0-50kg

n - Use imported Germany HBM weighing loadcell

n - Auger filler driven by servo motor (Schneider), high accuracy

n - Auger head height adjustable for different pouch size

n - Only change auger can suitable for weight range

n - PLC (Panasonic) Control, Touch screen (Kinco)Operation

n -Dust collector with SS304 cover for powder flying product

n - Innovative molded bag clamp for elminating powder leakage

n -Container can be not only bag, but also ok for bucket, can, tin etc

n -Have level sensor to connect with inclined screw infeeder

n -roller platform with vibrating function

Type:	Filling Machine	Condition:	New	Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware
Packaging Type:	Cartons,Stand-up Pouch,Bags,Pouch	Packaging Material:	Plastic,Paper	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	240V	Power:	2.75KW
Place of Origin:	China (Mainland)	Brand Name:	JIABO	Model Number:	WF-50V
Dimension(LWH):	109513723030mm	Weight:	300KG	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Automatication:	Automatication
