"Cocoa ultrasonic shaking siever ",China shanghai Navector price supplier

"Cocoa ultrasonic shaking siever "

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month screening

Payment Terms: US $1,000 - 5,000 / Unit

Update Time:2014-09-20

Contact Supplier

Product Description

screening
1:GMP ,FDA ,SS304 or SS316L
2.CE &ISO
3.Sieve:5mm-15 micro

screening

1.GMP,FDA ,SS304 or SS316L

2.CE &ISO

3.Sieve:5mm-15 micro


Item	Vibrating Screen
Application	Powder,particle material.Liquid
Mainly Usage	Screening / Separation / Filtration
Diameter	400mm,600mm,800mm,1000mm,1200mm,1500mm
Deck	1-4 Decks
Construction material	Stainless steel 304 & Painted carbon steel
Diameter of top inlet	Φ150,Φ200,Φ250
Diameter of outlet	Φ100,Φ140,Φ150,Φ170,Φ200
Motor	Power: 0.1kw,0.2kw, 0.5kw, 0.7kw, 1.5kw Parameter: 3 phase, 380V, 50HZ or 3 phase, 415V, 50HZ.(Customized)
Package	wooden case
MOQ	1 set
Lead time	15-20 working days


1.Circular screen Separator segregates solids from liquids or dry material into various particle sizes ranging from 51 mm to 0,018 mm (635 mesh) 2.Easy to install, can be equipped to separate up to 5 sizes with up to 4 screen decks incorporated in one Navector Vibro Sifter. 3.Standard models range in size from 400 mm to 1800 mm 4.Screens are easy and fast to change and can be equipped with various cleaning system as: balls, kleeners, starbrush, and the innovative ultrasonic cleaning system 5.The vibro sifter is avaiable constructed of carbon steel, stainless steel AISI 304 or stainless steel AISI 316. 6.On request: ATEX certification, FDA GMP avaialable. More Questions,Please contact Shanghai Navector Team!

1.Circular screen Separator segregates solids from liquids or dry material into various particle sizes ranging from 51 mm to 0,018 mm (635 mesh)

2.Easy to install, can be equipped to separate up to 5 sizes with up to 4 screen decks incorporated in one Navector Vibro Sifter.

3.Standard models range in size from 400 mm to 1800 mm

4.Screens are easy and fast to change and can be equipped with various cleaning system as: balls, kleeners, starbrush, and the innovative ultrasonic cleaning system

5.The vibro sifter is avaiable constructed of carbon steel, stainless steel AISI 304 or stainless steel AISI 316.

6.On request: ATEX certification, FDA GMP avaialable.

More Questions,Please contact Shanghai Navector Team!


With 8 Years production of Screening More than 20 Countries clients loves our products * All of our products have passed the evaluation of ISO9001 and CE certification. * The Chinese leading screening products provider and the technology design center * meh size:5mm to 15 micro * World leading cleaning system:Swiss Artech Ultrasonic system

*With 8 Years production of Screening

* More than 20 Countries clients loves our products

* All of our products have passed the evaluation of ISO9001 and CE certification.

* The Chinese leading screening products provider and the technology design center

* meh size:5mm to 15 micro

* World leading cleaning system:Swiss Artech Ultrasonic system


1. What it does..????. a:Separate solids from liquids or segregate dry materials into various sizes. 2.What's the application ???? 2. How it works ??? Basically,Naector separator is a vibratory screening device that vibrates about its center of mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. 3. Any self-cleaning devices on the sieving machine ??? Yeah, Navector's Self Cleaning Kits aid in screen cleaning for increased screening efficiency. By reducing the amount of near-size particles lodged in the openings of the wire mesh (blinding), the Self Cleaning Kit improves dry sizing and liquid/solid separation. Navector offers several options with Self Cleaning Kits, including sliders, ball trays and power wipers 4. How many kinds of material are supported ??? A. All stainless steel (201, 304, 316L) B. All carbon steel Q235A C. Contact part Stainless steel. 5. About the phase 0.12-0.55 kw single phase and three phase are both supported. 0.55-2.2 kw Three phase is just supported. 6. About the voltage 110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ). 7. How long is the warranty ? The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life. 8. OEM order and labeling services are supported??? Yeah, OEM order and labeling services are supported. And we seek global partners. 9. Whether the site visits is supported or not??? Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported. half hour to both HongQiao international Airport and Pudong Airport. No Matter where you are located, Shanghai Navector will provide you with the best screening and separating service in the industry .

1. What it does..????.

a:Separate solids from liquids or segregate dry materials into various sizes.

2.What's the application ????

2. How it works ???

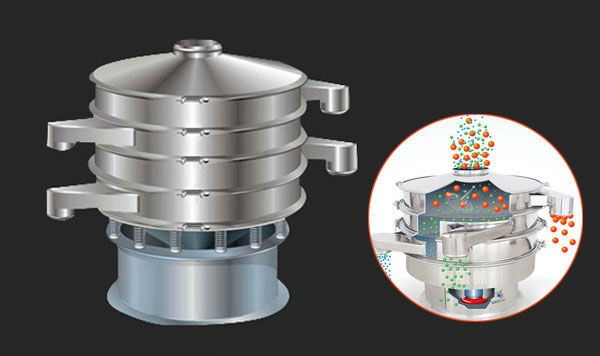

Basically,Naector separator is a vibratory screening device that vibrates about its center of mass. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery.

3. Any self-cleaning devices on the sieving machine ???
Yeah, Navector's Self Cleaning Kits aid in screen cleaning for increased screening efficiency. By reducing the amount of near-size particles lodged in the openings of the wire mesh (blinding), the Self Cleaning Kit improves dry sizing and liquid/solid separation. Navector offers several options with Self Cleaning Kits, including sliders, ball trays and power wipers

4. How many kinds of material are supported ???
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.

5. About the phase

0.12-0.55 kw single phase and three phase are both supported.
0.55-2.2 kw Three phase is just supported.

6. About the voltage

110V, 220V, 380V, 415V, 450V, 480V are supported. (50HZ OR 60 HZ).

7. How long is the warranty ?

The warranty is 12 month(except the wearing parts includes sealing strip, bounce ball and sieve mesh, etc.). Because different usage, the wearing parts will have different life.

8. OEM order and labeling services are supported???

Yeah, OEM order and labeling services are supported. And we seek global partners.

9. Whether the site visits is supported or not???

Yeah, site visits will be highly welcome. Airport picking up and hotel booking are both supported. half hour to both HongQiao international Airport and Pudong Airport.

No Matter where you are located,

Shanghai Navector will provide you

with the best screening and separating service in the industry .

Condition:	New	Type:	Circular	Application:	Filter equipment"> 48" inch filter equipment
Place of Origin:	Shanghai China (Mainland)	Brand Name:	shanghai Navector	Model Number:	UCS1200-AS
Voltage:	380V,415V,230V or customized	Power(W):	0.7KW	Dimension(LWH):	166012001060
Weight:	380kg	Certification:	CE&ISO	Warranty:	13 month
After-sales Service Provided:	Engineers available to service machinery overseas	Funtions:	Size controll/ Fractionating/ Dedusting	Deck No.:	4 decks available
Category:	Sieving Equipment	Band:	Navector (Shanghai)	Motor power:	0.7kw,3 phase,380V,50 HZ or customized
Sieve:	Stainless steel 304 or 316L,5mm -15 micro	constuction material:	Stainless steel 304 or 316L or carbon steel	lead time:	15-30 working days
Using range:	Grinding powder/Chemical power/Medicine powder/Battery powder	Package:	Standard wooden case for sizing pharmaceutical powders sieve
