coconut shell laser cutting and engraving machine

FOB Price:Price can be negotiated

Production Capacity:500 Set/Sets per Quarter

Payment Terms: US $2,000 - 4,000 / Set

Update Time:2023-09-25

Contact Supplier

Product Description

Coconut shell laser cutting and engraving machine :
1)stepper motor
2)40w/60w/80w
3)CE/FDA

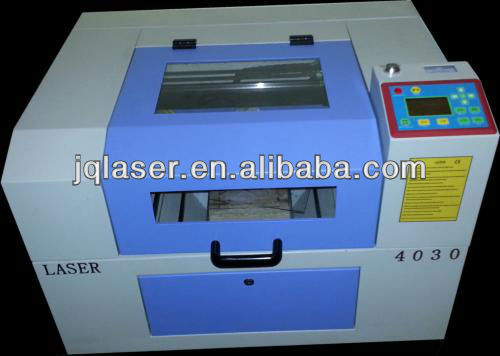

coconut shell laser cutting and engraving machine

Machine features:

1. Configure higher power laser tube.

2. DSP controlling system, rich functions, can affect cutting on wood

3. Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in CorelDraw, AutoCAD,photoshop etc.
5.Adopt international linear rail, more precision.

Technical Parameter

Item / Model	coconut shell laser cutting and engraving machine
Cutting area	400mm*300mm
Laser power	40w/60w/80w
Laser type	CO2 Laser tube,
engraving speed	0 - 70000mm/min
Resetting positioning accuracy	±0.01mm
Power supply	AC 110 - 220V ± 10%, 50 - 60Hz
Operating temperature	0 - 45°C
Operating humidity	5 - 95%
Min. shaping character	English 1 x 1mm
Graphic format supported	PLT, DXF,BMP, AI
Software supported	CorelDraw, Photoshop, AutoCAD, Tajima
Driving system	2 Phases Stepper Motor
Cooling mode	Water-cooling and protection system
Equipment Dimensions
Net Weight:	150kg
Optional Spare Parts	USB port
Recommended Spare Parts	Laser Tube and Lens

laser tube:

laser head:

controller card:

Applicable materials:

non-metal materials such as wood, bamboo, Organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic and other

Applicable industries:

Garments sampling, large width tailoring, wood cutting industry,leather, shoemaking, decoration, furniture, advertisement, packing and printing, molding and art craft industries.

Guarantee and after-sale service:

1.Two years guarantee for whole machine except of laser tube and lens

2.24 hours technical support by e-mail, calling or door-to-door service

3.English software, user manual and detailed Videos CD

on the exhibition:

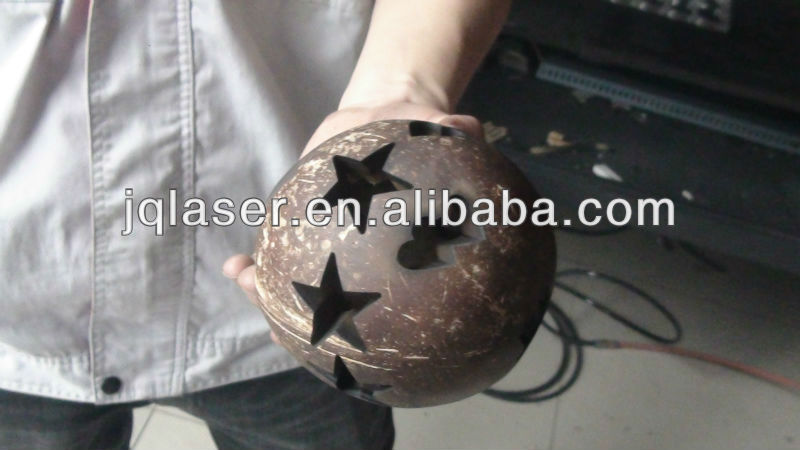

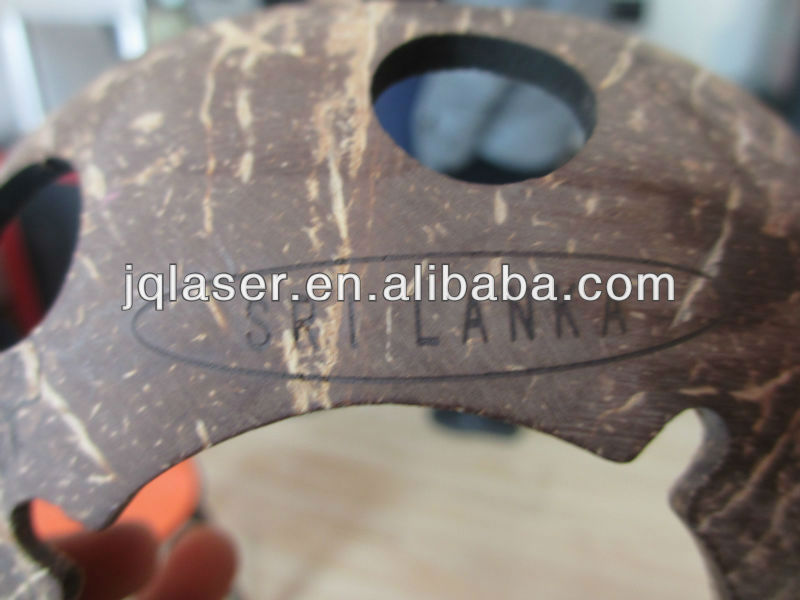

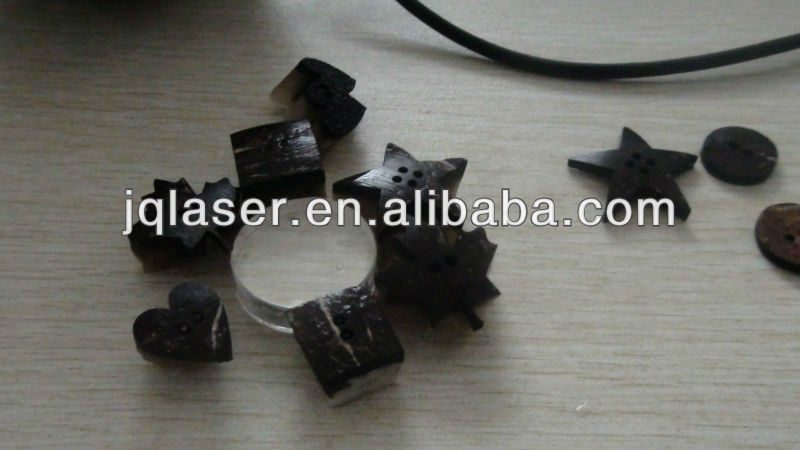

Samples:

Application:	Laser Engraving	Condition:	New	Laser Type:	CO2
Engraving Area:	400mm*300mm	Engraving Speed:	0-70000mm/min	CNC or Not:	Yes
Cooling Mode:	Water Cooling	Applicable Material:	Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood,coconut shell	Graphic Format Supported:	AI,PLT,DXF,BMP,DST,DXP
Place of Origin:	Shandong China (Mainland)	Brand Name:	JQ	Model Number:	JQ4030
Certification:	CE,ISO,FDA	After-sales Service Provided:	Engineers available to service machinery overseas	color:	blue/white red/black
software:	laser cut 5.3	operating system:	offline USB control system	laser tube:	40w/60w/80w
machine guarantee:	2 years
