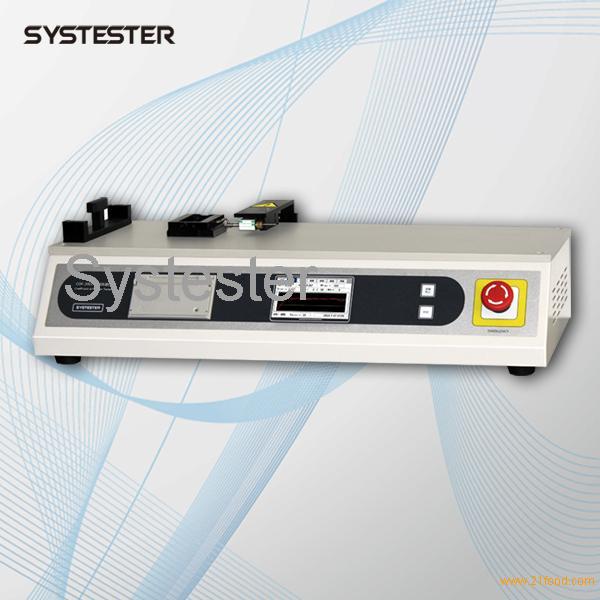

Coefficient of friction and peeling force tester of packaging materials apply to plastic films, laminated films, foils, sheets, rubber, paper, paperboard, wood, brake pad, tyre, windshield wiper, conveyor belt, hair, metal, carbon rod, catheter, artificial skin etc testing of static and dynamic coefficient, especially used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.
Main Features
1: Micro-printer built-in.
2: Designed based on ISO, GB standard.
3: Highly accurate load cell.
4: Test speed can be set freely through touch screen.
5: Keyboard + touch screen operation.
6:One touch to start a new test.
7: 2 patents and 2 counts of software copyright registration.
8: DB9 RS232 communication port.
9: Professional computer software supporter.
10: Wide range sample thickness test is available.
12: Overload, limit position protection.
.........................................................
Technical indexes
| load cell range
|
customization
|
| Accuracy
|
0.5
|
| Max travel distance
|
400mm
|
| Sled mass
|
200g,500g customization
|
| Test speed
|
0~300mm/min
|
| Sample thicknee
|
30mm optional
|
| Power supply
|
AC220V 60Hz
|
| Power consumption
|
21W
|
| Dimension
|
650mm(L) *340mm(B)* 210mm(H)
|
| Net weight
|
22kg
|
Standards
ISO 8295, GB 10006, GB/T 17200
Configuration
Delivery: main unit, sled 200g.
Optional: Professional computer software, communication cable, non-standard sled, calibration assemblies, LMIS system.
|
|
|
|
SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development. SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities as well as successful experience accumulation of over 20 years. SYSTESETER is a modern company with family kind culture, passion, innovation concept and scientific management.
