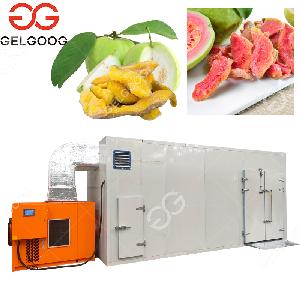

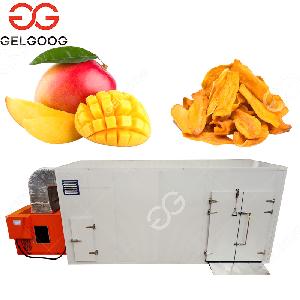

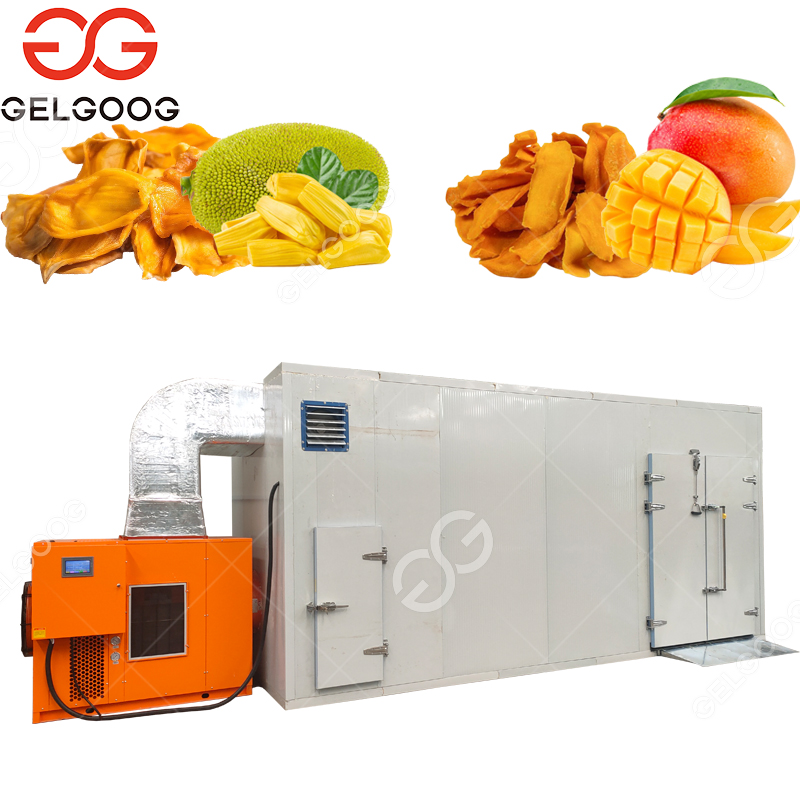

Industrial Mango Drying Machine Description
This Mango Drying Machine also called Heat Pump Fruit Drying Machine takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. The industrial fruit drying machine adopts medium and low temperature for drying, It is suitable for all materials that drying temperature lower than 80°C. such as fruits, dehydrated vegetables, Cereals, seafood,meat products, spices, wood, incense and so on. After drying, the fruit's original color, shape, and nutrient content can be completely retained.
Mango Drying Machine Parameter
| Item
|
Heat Pump Dryer Parameter
|
|||
| Model
|
GG-3P
|
GG-7P
|
GG-15P
|
Unit
|
| Environment temperature
|
-10-43
|
-15-43
|
-15-43
|
ºC
|
| Drying temperature range
|
30-75
|
30-75
|
30-75
|
ºC
|
| Rated power
|
4
|
12
|
21
|
Kw
|
| Maximum power
|
10
|
18
|
33
|
Kw
|
| Power supply form
|
380/3/50
|
380/3/50
|
380/3/50
|
V/Ph/Hz
|
| Temperature control accuracy
|
±1
|
±1
|
±1
|
ºC
|
| Electric heating power
|
6
|
6
|
12
|
Kw
|
| Controller
|
Single chip microcomputer/PLC+color screen control
|
|||
| Noise level
|
≤75
|
≤75
|
≤75
|
dB(A)
|
| Capacity
|
100-200
|
300-700
|
800-1500
|
Kg
|
| Dehydration capacity
|
9
|
21
|
43
|
Kg/h(=50ºC,80%)
|
Mango Drying Machine Advantages
1, Energy saving
Adopt heat pump technology, absorb heat from air and recovery waste heat at the same time
Adopt close dehumidify + circulating drying type, saving operating cost;
2, Exact control temperature and humidity
The drying temperature can be easily controlled by PLC +Touch Screen control system.
3, Uniform drying
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
4, The temperature: 20-80°C, Max 80°C, similar nature drying.
5, The baking plate dimensions and materials can customize as customer request.
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content;
7, Safe and reliable operation
Automatic intelligent control, 24-hour continuous drying; Without waste gas and waste heat pollution,low noise
GELGOOG, one leading professional provider of food processing and packaging equipment in China, is committed to provide competitive total full-process solutions, safe and reliable products and efficient professional services for global food industry users.
We insist on taking our customer as No1, GELGOOG owns a professional and passionate engineer team who always listen to customer’s needs and wants as well as provide them with pragmatical and personalized solutions. We always focus on investment cost reductions and greater value returns for our customers.We insist on aiming our core best business in which we have expertise and profession. Over recent 10 years of intensive cultivation, we have accumulated rich experience and strength in the processing fields of fruit & vegetable, nut, pastry and packaging equipment. Our products have served more than 2,000 users including Unilever, Mengniu Dairy and other global brands of which we have earned good words of mouths with our fine-quality products and services across 180 countries.
