Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted,China Jiacheng price supplier

Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted
FOB Price:Price can be negotiated
Production Capacity:3000 Set/Sets per Year
Payment Terms: US $1 - 3,000 / Set
Update Time:2021-06-02
Product Description

JS500 convenient ready mix concrete
1.Widely-used, Smooth operation
2.High efficiency,save labor
3,CE,SGS,ISO9001

  Welcome to visit our factory!



Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted

We are manufacturer of concrete Mixers over 20 years in China



Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted

Company Information

Jiangsu Xincheng Construction Machinery&manufacturing Co.,Ltd

Our main products are JZM350, 500 and 750 concrete mixers, JS500, 750, 1000 and 1500 forced mixers,

PL800, 1200, 1600 and 2400 batching machines, LSY160, 200 and 250 cement screw transfer machines

and concrete mixing plant series.All these products had been exported to Southeast Asia,Middle East,Africa,

Russia and so on Regions and Countries.

Our company will provide different engineering tasks and manufacture ideal construction machines with

advanced technology, excellent quality and high-quality service.

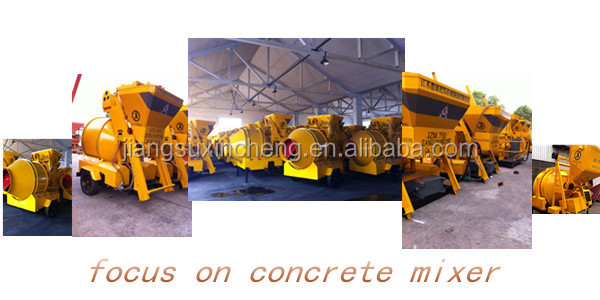

Our factory

Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted



Description of JS500 forced type concrete mixer

JS500 precast concrete slab making machine:

High efficiency

Good mixing quality

Low energy consumption

Low noise



JS500 concrete mixer is a kind of compulsory one with double axle.

It is suitable for medium and small-scale prefabrication plant and highways, bridges, water conservancy and other industrial and civil engineering construction sectors to mix dry hard, pasty, plastic, and light aggregate concrete.

It can be either used as the single machine or combined with concrete batching machine to make a simple mixing station.



  Main technical parameters of our concrete mixer

Model

JS500

Feed Capacity

800L

Discharge Capacity

500L

Maximum Productivity

25m³/h

Maximum Aggregate Size

80/60mm

Mixing Blades

Rotation Speed

35r/min

Number

7×2

Stirring Motor

Type

Y180M-4(B3)

Power

18.5kw

Lifting Motor

Type

YEZ32-4

Power

5.5kw

Pump Motor

Type

65DWB35-5

Power

1.1kw

Average Rate of Hopper Movement

0.3m/s

Unload Material Height

1500mm

Overall Dimensions(Length*Width*Height)

3000*2100*2800mm

Operating Mode

4260*3000*5380mm



Weight

4100kg

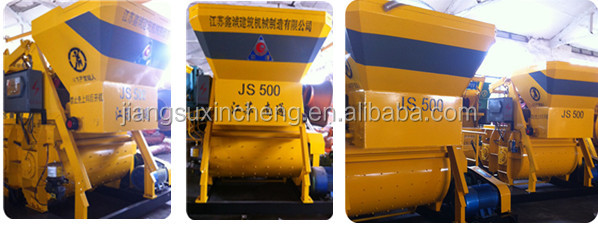

 Details of our products



   Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted

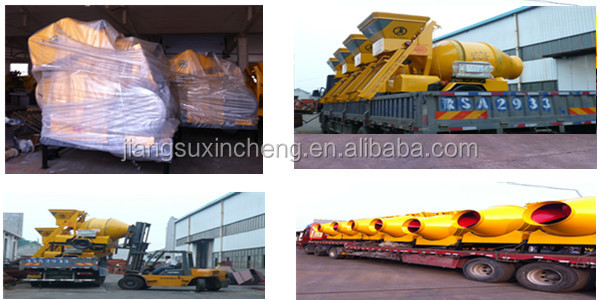

Packaging & Shipping



Standard package is nude packing



But we could do as your requirement with plastic film covered or pallet protection



Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted







Our Services



     Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted

                    As a professional exporter, our target is to serve worldwide clients with high-quality

     products, greatreliability, devoted responsibility,professional services and honorable credibility to meet

customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.



Our clients all over the world

Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted





FAQ about our concrete mixer



1.What about your International Market?

We have established overseas projects in 28 countries and regions. And we need your support to

introduce our high quality product and service to your honored company and country.



2.What are your main products?

Mixer(JZM series, JS series, JZC series,JZR series),
Concrete batching plant,
Station soil mixing station,
Batching machine,

Screw conveyor,
Cement  Silo,



3.What is your MOQ?

MOQ is 1set machine,anyway,special discount will be given on large scale



4.What is your payment terms?

You can pay by T/T,L/C or other ways.



5.What about the lead time for the JS mixer?

Usually we have stock and we can ship the goods at once,if not available in stock,it take about

7 working days.



6.What is the transportation method?

By sea or by train,or by truck.



7.Warm Tips for our concrete mixer

1- Checking before each operation
a). if you have put the machine level and steady, if the 4 legs fixed, and if the bolt bars have been fixed tightly.
b). check the tight extent of the triangle belt, and put the operation shaft of the cutting-speed box neutral
c). If the operation without material is normal



2- Safe operating and cautions
a). every time when adding material, shouldn’t overpass the prescribed amount
b). for avoiding pasting the drum, the order should be: aggregate-cement- grit, or girt-cement-aggregate
c). In the course of mixing, should add water in time, for cutting the mixing time and avoiding the flying of the dust.
d). No person should be allowed to stand or pass below the material container when it’s lifted. If you must repair something bellow the material container, you should lift it and stop it in a certain position and pull it with safe support shaft.
e). Non-operation persons shouldn’t move the operation shaft or operate the machine.
f).  When the mixer is dragging, the material container should be lifted to the up top position, and hook the safe chain. The dragging speed should not overpass 20km/hour.
g). In the course of operating, the grit etc. should not drop to the operation part avoiding jamming any operating part and break it.



Compulsory JS500 convenient ready mix concrete for sale saffron yellow painted




Condition:
New
Place of Origin:
JIA,Nantong,Jiangsu China (Mainland)
Brand Name:
Jiacheng
Model Number:
JS500
Motor Power:
5.5kw
Mixing Power:
18.5kw
Charging Capacity:
800L
Reclaiming capacity:
500L
Speed of Mixing Drum:
35r/min
Water Supply Mode:
Water pump
Working Cycle Period:
0.3m/s
Discharge Way:
Automatic
Outline Dimension:
3000*2100*2800mm
After-sales Service Provided:
Engineers available to service machinery overseas
Weight::
4100kg
Starting Mode:
Electric Starting
Company Profile
Name: Jiangsu Xincheng Construction Machinery & Manufacturing Co., Ltd.
Main Products: concrete mixer,concrete batching machine,cement screw transfer machine,mixing plant,construction machine
Business Type: Manufacturer, Trading Company
Total Employees: 101 - 200 People
Established Year: 2003
Main Markets: Domestic Market, Africa, Mid East, Eastern Asia, Southeast Asia
Address: Yuanqiao industry area
Jiangsu Xincheng Construction Machinery & Manufacturing Co., Ltd. is a fixed-point company of Ministry of Construction of China, engaged in construction machinery research, development and manufacture. Our main products are JZM350, 500 and 750 concrete mixers, JS500, 750, 1000 and 1500 forced mixers, PL800, 1200, 1600 and 2400 batching machines, LSY160, 200 and 250 cement screw transfer machines and concrete mixing plant series.

Our company has been awarded as "The Famous Brand" in Jiangsu market because of our Jiangcheng brand products, which have won the gold medal in the international exposition. We have had a number of national patents and have passed the test by Quality and Technical Supervision Bureau of Nantong. Our products are sold to domestic provinces, municipalities and autonomous regions and are also exported to Southeast Asia, the Middle East, Africa, Russia, etc.

Our company will provide different engineering tasks and manufacture ideal construction machines with advanced technology, excellent quality and high-quality service. more
