Food online >  Products >  Food Processing Machinery >  Other Food Processing Machinery >

concentration tomato sauce machine,China JNBAN price supplier

concentration tomato sauce machine
FOB Price:Price can be negotiated/Set
Min. Order: 1/Set/Set
Production Capacity:100 Set per Year
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Update Time:2023-09-07
Product Description
Application
concentration tomato sauce machine
concentration tomato sauce machine
concentration tomato sauce machine
concentration tomato sauce machine

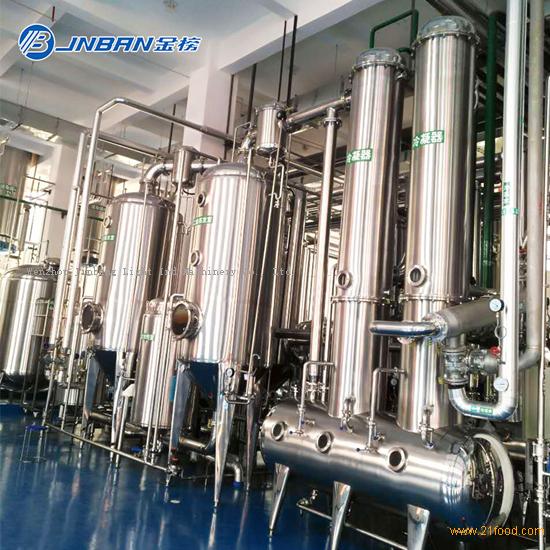

Hot Selling Concentration Machine High Quality Evaporator is suitable for the concentration of biochemistry, pharmacy, milk, juice, camel milk, goats milk, sheep milk,horse milk,flavoring, food additives etc. It is especially suitable for heat sensitive products. With the function of continuous feeding and discharging, the fall film evaporator is stable and easy to operate. When the system starts to work, it only needs to adjust various parameters as required in the initial feeding stage and ensure continuous and stable supply of materials at the same time, then it can concentrate the product continuously, stablely,efficiently to reach qualified gravity requirements. The solvent can be recovered at the same time. We can design and produce it as one effect type, two effect type and three effect type according to the different requirements of different customers. The more effects, the more energy saving. The whole system of the fall film evaporator can be automatically controlled by PLC.
concentration tomato sauce machine
FEATURES AT A GLANCE
concentration tomato sauce machine
Fuit juice syrup evaporator concentrator is a vertical sealing device with steam insulation and jacket, which has three parts:evaporation chamber, heating coil and separator.The feed liquid is sucked into the chamber from the upper part of the evaporation chamber.Heating coil is composed of three to five rows of circular stainless steel pipe, the heating steam within the space of coil, material liquid is heated in a multipolar pump and hydraulic ejector working under low temperature boiling evaporation,evaporation (secondary steam) by the separator separating secondary steam by hydraulic injector in multistage pump discharge under the action of condensation, and form a vacuum evaporation chamber, reduce the evaporation temperature, raised the speed of the evaporation, hydraulic ejector with multi-stage pump, through the pump pressure cooling water pressure into the nozzle, the formation of high speed jet formation of low pressure area in the mixing chamber, and inhalation of secondary steam and condensate together via diffusion tube discharge to water tank, part of the mixed waterIt can also be reused.
Product Paramenters
concentration tomato sauce machine
PRODUCT CONFIGURATION
concentration tomato sauce machine

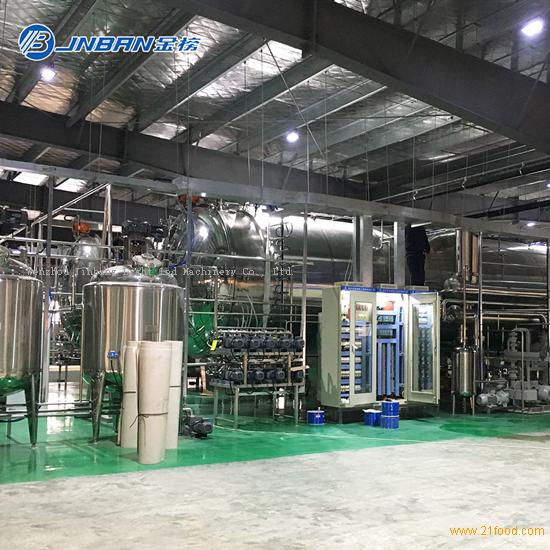

concentration tomato sauce machineSuccessful Project



concentration tomato sauce machine

Company Profile



concentration tomato sauce machine
concentration tomato sauce machine
concentration tomato sauce machine
Certifications
concentration tomato sauce machine
concentration tomato sauce machine
FAQ
Q1: who are we?
A1: We are a factory based in CN , Zhejiang , Wenzhou, No. 420 Binhai 23rd Road, Binhai Park, Economic Technological Development Zone, We are always welcome your visit.

Q2: How can we guarantee quality?
A2: We can provide the whole production process to you by video or live stream, we also have International Certification like CE,ISO9001, etc

Q3: What kind of products can evaporator process?
A3: All kinds of liquid material.

Q4: How to ship evaporator?
A4: Flat Rack+container

Q5: What is the delivery time?
A5: 45 days

Q6: What is the after-sales service type?
A6: Engineers onsite to guide installation, commissioning and training

Q7: What can you buy from us?
A7: Extractor, concentrator, evaporator, vacuum belt dryer and other stainless steel products.

Other Products
Company Profile
Name: Wenzhou Jinbang Light Ind Machinery Co., Ltd.Verified
Main Products: Vacuum Belt Dryer,Extraction Tank,Concentrator,Fermentation Tank,Mixing Liquid Tank.
Business Type: Manufacture
Total Employees: 100 ~ 500
Established Year: 1997
Total Annual Revenue: US$50 Million - US$100 Million
Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,
Address: No. 420 Binhai 23rd Road, Binhai Park, Economic & Technological Development Zone, Wenzhou, Zhejiang,

Founded in 1997, the company is now located in Wenzhou Binhai Industrial Park, with three production bases, covering an area of 60030 M2.
Wenzhou Jinbang Light Industry Machinery Co., Ltd. is a high-tech enterprise integrating R & D, manufacturing and sales. Professional in the production and sales of pharmaceutical, bioengineering machinery and equipment professional enterprises. The company mainly specializes in consulting, scheme design and manufacturing, budget, on-site installation and after-sale maintenance of traditional Chinese medicine extraction equipment, concentration equipment, separation and purification equipment, alcohol recovery equipment and drying equipment. The company now has a high-tech, high-quality professional staff team. At present, there are 28 senior and medium-level technical personnel, 4 guest professors and more than 300 employees. High tech enterprises have class A2 class III pressure vessel design qualification, D1, D2 class I and II pressure vessel manufacturing qualification, GC2 pressure pipeline installation qualification, and EU CE certification is used for the manufacturing, and the manufacturing meets CMP, FDA and ASMI standards.

Since its establishment, the company has been widely supported by all walks of life. With the joint efforts of all employees, the company has made rapid development. Jinbang machinery is now a famous brand with great influence in China, and it has been paid attention and affirmation by customers from both home and abroad. Adhering to the business philosophy of "service first, quality first", and adhering to the principle of "being a business and making a friend", the company has made the enterprise grow rapidly and has been widely recognized by the industry, and has become a first-class brand pharmaceutical equipment manufacturing enterprise in China. At present, we will work hard and sincerely look forward to working with you to create a better future together!
