corn starch line drying system

FOB Price:Price can be negotiated

Production Capacity:120 Set/Sets per Year

Payment Terms: US $100,000 - 600,000 / Set

Update Time:2025-02-23

Contact Supplier

Product Description

1.wide range of drying material
2.large amount of water evaporation
3.continually running with low power consumption

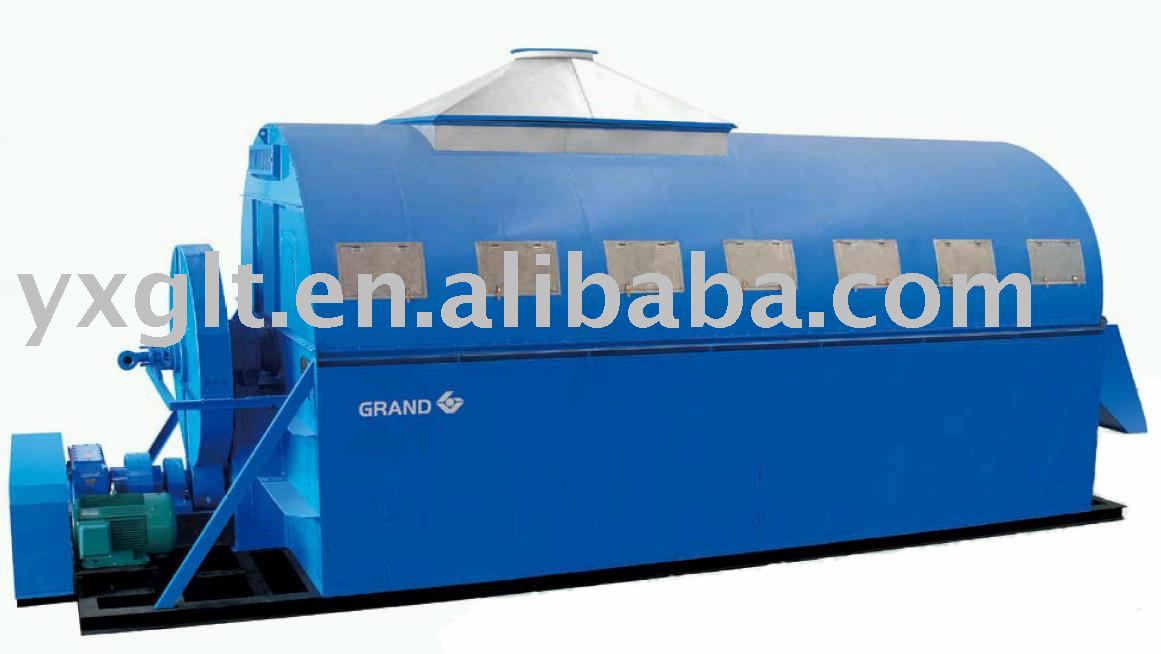

GZG tube bundle dryer is a indirect contact dryer. Its structure is the fixed shell with the built-in rotational heating tube bundle with material shovel. The steam enters the inside of tube and pass the heating through the rotational connection and becomes the condensing water then discharges. The moisture in material is heated outside the tube and become the steam and then is dispelled by the moisture extractor fan. The material in the tube bundle is lifted by the rotating shovel and evenly falls over the outer surface of heating tube,then it is pushed to the materail outlet from inlet and dried. It is characterized by the wide drying scope,the big amount of evaporated water,low power consumption and continuous production.

The efficient cyclone separator,high-performance steam trap and air preheater configuration by using the heat of condensaing water are available,according to the feature of material and customers's request.

Type	heating area(M ² )	capacity(T)	size(mm)××	power(KW)
GZG90	90	0.28-0.36	7647×1802×2628	7.5
GZG150	150	0.45-0.6	9078×1862×2680	15
GZG300	300	0.96-1.2	10520×2410×3150	22
GZG400	400	1.3-1.6	10805×2660×3665	30
GZG500	500	1.6-2	11380×2922×3994	37
GZG600	600	1.9-2.4	12450×2986×4006	55
GZG700	700	2.2-2.8	12306×3162×4584	75
GZG800	800	2.6-3.2	12860×3382×4430	90
GZG900	900	2.8-3.6	13810×3382×4430	90
GZG1000	1000	3.2-4	14310×3500×4206	110
GZG1200	1200	3.8-4.8	15480×3746×4900	132

material	inlet moisture	outlet moisture	drying capacityKg/m ²	Energy consumptionKJ/Kg
Germ	55	3-5	2.5-3	3500-3800KJ/KG 840-910Kcal/kg (equal to satured vapor 1.45-1.5Kg)
Corn fibre	60	10-12	4.80
gluten	40	12-13	4.70
Yam fiber	65	10-12	4.80
bear/wine husk	65	10-12	4.90
Fodder	16	6-8	4.20
Rapeseed	60	5-7	4.50
Coagulated pig's blood yeast+powder-p1.html" style="text-decoration:underline;font-weight:bold;" target='_blank'>yeast powder	35	10	4.40
Bone meal	40	10	4.60
Yeast fodder	40	10	4.50

Type:	Vacuum Drying Equipment	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Grand
Model Number:	GZG	heat source:	steam
