cost effective and functional Machines for can tuna case with high performance made in Japan

•  Production speed up to 50 cpm
• 80 - 90% dust removal for high quality clean cans

•  12 - 14m  machine length for 1 operator management

•  Noise Reduction  by rigid clean room frame
• Japan made quality, designed and manufactured by Sanyu Japan

Paneling, Flanging, Cleaning, and Seaming equipted in a compact and clean room conditioned body

frame for industrial 18L and Pail cans. An automatic height change for various can sizes is available.

This compact body enables one operator to manage the whole line.

<< Combined Processes >>

1. Orientation

Japanese high grade displacement sensor detects can surface asperity of welded line for precise orientation.

Unlike light detect sensors, it is not affected by environmental light changes and no need to adjust by

welded portion color difference.

2. Expanding

High quality heat treatment and strong titanium corner bars reduce can friction dramatically.

Generally a welded round shape can is enlarged by 3.0 - 3.5mm after the expansion ,

but our machine can expand it by less than 1.0mm enlargement.

By using grease-less metal parts, no grease maintenance for tools is required, so you do not

worry about the grease contamination.

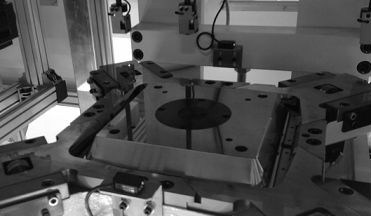

3. Paneling

8 forming tool movements, 4 sides and 4 corners, can be controlled by hydraulic pressure mechanism.

This enables various kinds of paneling patterns and is very effective for thin plates like 0.24mm.

No grease maintenance for tools with grease less metal parts.

4. Bottom Flanging

No grease maintenance is required at all. It is vey easy to adjust the flange length, and

its mechanism is extremely rigid for long usage.

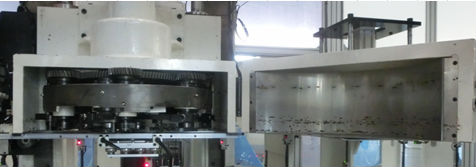

5. Bottom Seaming with Automatic End Feeder

Seaming unit has various moving parts, so this process is risky for oil contamination.

The head top moving portion is covered fully to prevent grease spattering and for safety purpose.

4 process seaming for the 1st operation is adapted to minimize the leaking defect risk.

Automatically grease supplied and no daily maintenace required.

6. Optional HEPA Cleaning (Patented)

"CleanPack" body is available as an option. With this option, the whole combination machine

can be adopted for highly clean can making machine.

The demand of clean cans has been increasing in the fields such as;

   - Automobile Paints

   - High Quality Engine Oil,

   - Lubrication for Precise Electrical Parts

   - Insulation Chemicals

   - Food Products such as oil, sauce, batter, etc

High quality filtered clean air (class approx. 1000 ) is not bedewed under minus 27 degree

Celsius and constantly supplied into the clean room body.

It maintains the machine inside pressure always possitive to shut down foreighn dusts.


For open spaces, high grade air curtains are equipped in entrance, exit, and 2 end supply windows.

7. Inspection and reject room with air conditioner

8. Top Flanging

9. Top Seaming with Automatic End Feeder

Advanced 3D Conveyor (Optional)

Sanyu's original "3D Conveyor" system carrys cans and brings  to the next process with high speed.

This new technology reduces metal poweder produced by can sliding.

Greeseless Parts for Easy Maintenace

Greaseless parts are used for most driving parts and grease required portions are fully sealed.

No need to worry about excessive grease sparking on cans.

Other Features

- Automatic can height adjustment from 9L to 20L

- Various paneling available upon request

- Fully automatic top and bottom end supply

  Within 8 - 10 months after receipt of firm order, down payment, and drawing approval.

Sanyu Machinery has been engaged in can making machinery business for more than

60 years in Japan. Sanyu has installed over 2,000 machines worldwide, and our

“Japan Made Quality” machines have been well recognized and used worldwide.
