DB-B5 ICE-CREAM Paper Cone Forming Machine,China price supplier

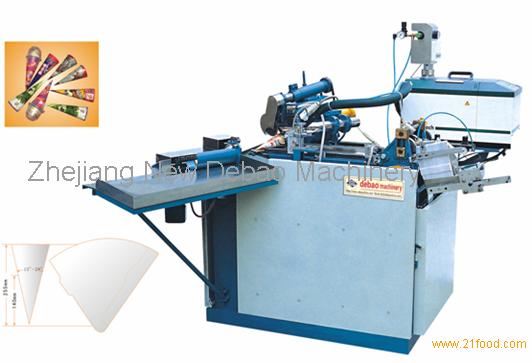

DB-B5 ICE-CREAM Paper Cone Forming Machine

FOB Price:Price can be negotiated

Update Time:2011-09-28

Product Description

DB-B5 Ice cream Paper Cone Forming Machine has a suction nozzle, which sucks the printed and shaped paper from paper shelf and then puts the paper onto delivery chains, which delivery paper to the forming mould. In this procedure, the paper will be coated with Heat Melt Adhesive, whose position, whose length and whose weight can be adjusted without stopping the machine if needed. The coated paper will be the ice cream cones after formed, which will be blown into collecting device, counted, gathered and transferred at certain amount which is preset automatically.

FEATURES

1) With high efficiency, it can make 200pcs/min.The products can count automatically.
2) With small overall, it can be equipped easily. (Overall Dimension: 1850*1750*1800mm)
3) With low load power, it can control variable-frequency with high precision. (Power: 5.5kw)
4) With the box-pattern and the high-quality steel, it has stable and precise transmission.
5) With high level of automatism, it’s easy and convenient to operate, adjust .

6) With two models. (Normal form model and Adjustable form model)

Model	DB-B5	Production capacity		150-200 pcs/min
Weight	1000 KG	Required paper	120-157gsm
Container capacities	1 minimum height 100mm 2 maximum height 255mm 3 angle 15 -28	Total power	380v 50hz 5.5kw
		Overall dimensions	2500 × 1800 × 2000mm
