DB-B5 Ice-cream paper cone forming machine,China DEBAO price supplier

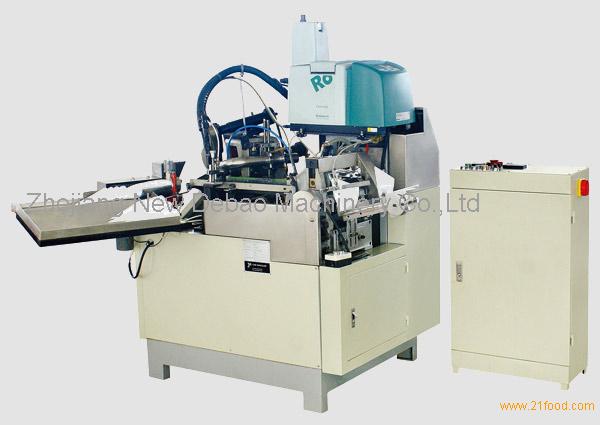

DB-B5 Ice-cream paper cone forming machine

FOB Price:Price can be negotiated

Production Capacity:20sets

Payment Terms: FOB , CIF

Update Time:2012-06-01

Contact Supplier

Product Description

Description:

DB-B5 Ice cream Paper Cone Forming Machine has a suction nozzle, which sucks the printed and shaped paper from the shelf and then puts the paper onto the delivery chains, which delivery the paper into the forming mould. In this procedure, the paper will be coated with Heat Melt Adhesive, whose position, whose length and whose weight can be adjusted without stopping the machine if needed. The finished cones will be blown into the collecting device,counted, gathered and transferred automatically.

Producing speed:

The highest speed is 200pcs per minute.

The raw materials:

Paper, Combined aluminum foil paper ,Less than 100g/m2 dry stencil paper

client should buy equipments by himself:air compression engine

Overall dimensions: (W×L×H):2500×1800×2000mm

Covering area: 2000×2000mm Weight:1000kg
Features:

1) With high efficiency, it can make fastest 200pcs/min.The products can count automatically.
2) With a small overall, it can be equipped easily. (Overall Dimension: 1850×1750×1800mm)
3) With low load-power,adjust speed by frequency conversion with high precision.(Power: 5.5kw)
4) With a box-pattern and the high-quality steel in drive system, it is stable and precise .
5) Filling oil by circulation lubricating system.
6) With high level of automatism, it is easy and convenient to operate, adjust and repair.
7) Low-cost, two models (Normal form model and Adjustable form model) for option.
DB-D5
1 、 100mm
2 、 255mm
3 、 15°-28°
4 、 DB-D5(ADJUSTABLE FORM)
1.The lowest height: 100 mm
2.The highest height: 255 mm 　
3.Angle:15°-28°
4.Other models can be customized
STANDARD FITTING:
1.complete electric-controlled case,including segment and non-segment speed regulating.
2. vacuum device and air-condensing device
3. heat melt adhesive device.
4. products piling device.
5. fin refusing collecting device.
6. a kit of forming mould.
7.ten fin knives.
