DB-L12 paper cup machine,China DEBAO price supplier

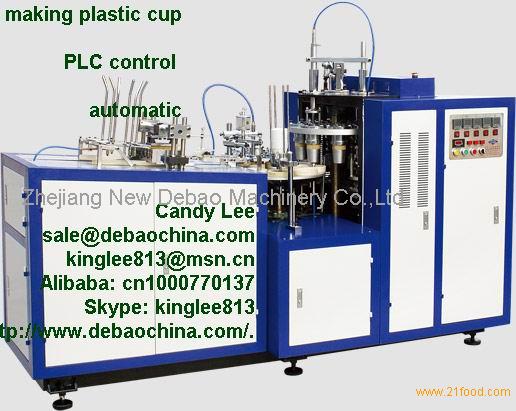

DB-L12 paper cup machine

FOB Price:Price can be negotiated

Production Capacity:20sets

Payment Terms: FOB , CIF

Update Time:2025-07-05

Contact Supplier

Product Description

DB-C12 Paper Cup Forming Machine is multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil -filling, washing, heating, knurling, curling,unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and beverage. If you want to make two-side ( double) PE coated paper cups, we recommend you to use DB-2L12, DB-2C18 or DB-2C22 ultrasonic paper cup forming machine.

Advantages

1) The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %.

2) The shape of the head is oblate, which can seal the cups easily. It is much better than that is round.

3) The machine sends the bottom paper up to the cup automatically and adjusts itself because of a spring.

Main technical parameter:

Model	DB-L12	DB-2L12	DB-C18	DB-2C18	DB-C22	DB-2C22	DB-2C22
production capacity	45-55pcs/min		40-50pcs/min		30-40pcs/min
required paper	150-250gsm one side PE coated paper	150-380gsm two side PE coated paper	150-250gsm one side PE coated paper	150-250gsm two side PE coated paper	150-250gsm one side PE coated paper		150-250gsm two side PE coated paper
container capacities	(A)Ф50-90mm;(B)45-115mm; (C)Ф35-64mm;(D)4.5-10mm		(A)Ф60-128mm;(B)45-135mm; (C)Ф50-97mm;(D)4.5-10mm		(A)Ф60-128mm;(B)45-180mm; (C)Ф50-97mm;(D)4.5-10mm
Air supply requirement(provided by customer)	working pressure:0.4-0.6Mpa gas volume:0.5m ³ /minute
total power	220v 50hz 3.8/8kw or 380v 50hz 3.8/8kw(variable-frequency control)
weight	1300kg		1550kg		1600kg
overall dimensions	2550×1260×1700mm		2800×1400×1900mm		3000×1600×1900mm

Other Products

DB-L12 paper cup machine

DEBAO-600A high speed paper cup machine

DB-B70 paper bowl machine

ZDM-1 Automatic indentation roll paper die cutting machine

Company Profile

Name: Zhejiang New Debao Machinery Co.,Ltd

Main Products: Paper cup machine,paper bowl machine,die cutting machine,printing machine, paper cup/bowl jacket forming machine,paper cup/bowl hollow machine,ice-cream paper cone forming machine

Business Type: Manufacture & Trade

Total Employees: 100 ~ 500

Established Year: 1999

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: NanAn Industrial Zone Feiyun Town Ruian City zhejiang China

DeBao, China paper tableware machine maker, we offer paper cup forming machine for making paper cup, paper bowls, KCF home packing bowls and take-out paper containers.

Zhejiang New Debao Machinery Co., Ltd. specializes in producing series of paper containers automatic forming machinery.

Our factory boasts advanced equipment, strong technological strength and rich manufacturing experience. We study current products and future trend to develop novel products such as single coating film paper cup forming machines, paper bowl forming machines, paste bowl machines, disk box machines, shower membrane machines, cutting machines and creasing and cutting machines.

These machines feature complete functions, steady performance, beautiful configuration and can produce 2.5 to 200 ounce (60ml/C 6, 000ml) paper cups, paper bowls, KCF home packing big bowls by changing their mould. They enjoys great popularity in this field because of their advanced technology.

Placing great importance to technology, our company cooperates closely with many universities, such as Tsinghua University and Shanghai Jiaotong University. We constantly improve ourselves to provide customers with quality products and first rate after-sales service.

If you are interested in any of our products, please feel free to contact us.
