Features & Specification:

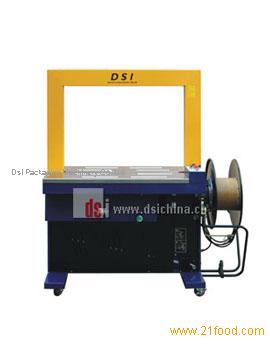

--- This Automatic Strapping machine is the most general-purpose type,featuring a high strapping speed and a low failure rate
--- The amount of strap storage can be freely adjusted based on the dimensions of the bow frame and the dimensions can also be selected freely according to the customer's needs
Applications:
--- Oiling is completely unnecessary,which simplifies maintenance
---Style of bundling:Single-and multiple-band parallel binding,both manual and automatic comtinuous bundling,spherical switch,foot switch
Specification:
Dimension: W1410 x D600 x H1540mm(arch W850 x H600)
Weight: Net.215kgs(shippping w't;250kgs)
Strap: Polypropylene Width;9,10,12,16,19mm
Power: 0.85KVA 1ph,100V-240V,50/60Hz
3ph,380V,50/60Hz
Speed: 2.3sec/min.a cycle (arch W850 x H600)
Arch: Width:550~2850mm Height:250~1800mm
Tension: 5~80kg
Table Height: 3″ 820mm/ 740mm
3″ 685mm/4″ 725mm/615mm
Clinck here to see a full range of strapping machines in our company:
Semi-Automatic Strapping Machine :
DSI,a company whose goal is beyond time limits,to become the world's leading manufacturer of strapping equipment and PP strap,for more than 60 countries to export its products, provides the top quality,superb performance and unparalleled service.
DSI,purpose is to provide satisfaction to its customers,to its shareholders and to its employees as the core ingredient of its strength. And at the same time,keeps true respect and genuine contribution for the safety of its environment.
|
|
|
|
|
|
|
|
|
|
|
|
