juice machine
1. carboanted juice with pulp
2. 3000-20000BPH
3. PET bottle with plastic scew cap
4. full-auto 4 in 1 monoblo

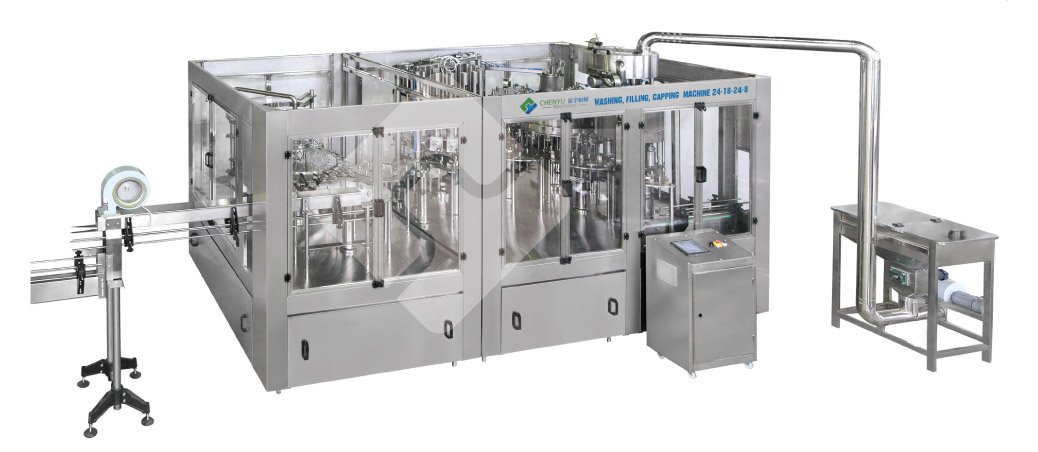

DCGFB Carbonated pulp juice machine
It is used for filling carbonated juice with pulp in PET bottle with plastic screw cap. we can supply the turnkey and installation running service.
Characteristics:
1. it can carry out washing pulp filling, carbonated juice filling and capping in one machine.
2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
4. Main electronic components are all from famous international enterprises, such as OMRON, Mitsubishi.
Technical parameters:
| Model |
DCGFB18-12-18-6 |
DCGFB24-18-24-8 |
DCGFB32-24-32-12 |
DCGFB40-32-40-12 |
| Production Capacity:500ml(B/h) |
5000 |
8000 |
12000 |
15000 |
| Suitable Bottle Types(mm): |
Round or square square shaped bottle |
|||
| PET Bottle Dimension: (mm) |
Bottle diameter:50-110 Height :150-330mm |
|||
| Suitable Cap Standard: |
plastic screw Cap |
|||
| Filling Precision |
≤±5mm |
|||
| Filling Pressure(Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
| Rinsing Precision:(Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
| Installed Capacity:(L) |
4.3 |
6.5 |
10 |
12 |
| Overall Size(mm)(L×W×H) |
3170×2070×2400 |
4070×2350×2400 |
5100×2600×2400 |
6250×3050×2400 |
| Total Weight: (kg) |
4000 |
5000 | 6000 |
7000 |
| Product Type: Juice, FRUIT JUICE | Brand Name: CHENYU | Model Number: DCGFB |
| Place of Origin: Jiangsu China (Mainland) | Primary Ingredient: apple | Type: Concentrate |
| Processing Type: Flavored, Sterilized | Feature: Low-Fat | Certification: FDA, QS |
| Packaging: Bottle, Can (Tinned) | Certificate: CE ISO9001 | Material: SUS304 |
