CHARACTERISTICS:

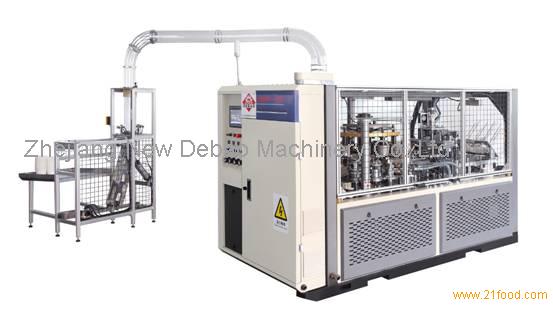

Our DEBAO-1250 middle speed paper bowl making machine is designed based on our traditional single -turnplate type paper cup forming machine. DEBAO-1250 series newly-designed paper bowl forming machine optimizes its transmission system and enables each independent functional-system to operate smoothly. Thus we can greatly reduce machine-wear caused by machine's inertial movement. By adopting photoelectric failure-detection system, our paper cup machine's reliable performance is guaranteed, thus offering a high speed and stable operation. This middle speed paper cup forming machine will auto-stop working when there is a failure. Thus it can greatly improve operation safety standard and help reduce labor force. It simplifies paper cup forming process. This machine can finish paper feeding, gluing, cup-bottom feeding, heating, knurling, cup-mouth curling, cup-collecting efficiently. It is especially suitable for making paper bowls with a height of 50-110mm.
ADVANTAGES:
4. Switzerland Leister heating device is equipped on cup body and bottom adhesion step .Cup-bottoms are heated at first before they are fed ,thus improving heating effect and helping guarantee knurling quality.
5.Machine use box type structure design, filling the oil by spray lubrication system, to make machine running fast .
Main technical parameter
|
Model
|
DEBAO-1250B
|
|
production capacity
|
50-70pcs/min
|
|
Paper thickness
|
230-400gsm
|
|
Paper cup specification
|
(A)Ф90-150mm;(B)50-135mm;(C)Ф60-115mm;(D)5-12mm
|
|
Air soure request(double PE)
|
0.5-0.8Mpa
|
|
Air consumption
|
0.4m 3 /min
|
|
Power source
|
three-phase 380V 18KW |
|
weight
|
4000kg
|
|
overall dimensions
|
3050×1600×2000mm
|
1. It is designed with drum-type cam indexing and positioning, which offers high precision indexing and positioning as a result of its good inertia-resistance capability.
2.Mechanical transmission parts use gear of longitudinal axis to ensure continuity of action and machine stability, to prevent machine collisions
3. Photoelectric failure-detecting system is available. PLC control system for the whole cup forming process . Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery.Zhejiang New Debao Machinery Co., Ltd. specializes in producing series of paper containers automatic forming machinery.
Our factory boasts advanced equipment, strong technological strength and rich manufacturing experience. We study current products and future trend to develop novel products such as single coating film paper cup forming machines, paper bowl forming machines, paste bowl machines, disk box machines, shower membrane machines, cutting machines and creasing and cutting machines.
These machines feature complete functions, steady performance, beautiful configuration and can produce 2.5 to 200 ounce (60ml/C 6, 000ml) paper cups, paper bowls, KCF home packing big bowls by changing their mould. They enjoys great popularity in this field because of their advanced technology.
Placing great importance to technology, our company cooperates closely with many universities, such as Tsinghua University and Shanghai Jiaotong University. We constantly improve ourselves to provide customers with quality products and first rate after-sales service.
If you are interested in any of our products, please feel free to contact us.
|
|
|
|
|
|
|
|
|
|
|
|
