Desiccated coconut processing line

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $10,000 - 100,000 / Set

Update Time:2023-10-06

Contact Supplier

Product Description

1,Large handling capacity
2, low energy consumption
3,free freight
4,design according to customer's request

desiccated coconut processing line" ori-width="800" ori-height="450" />

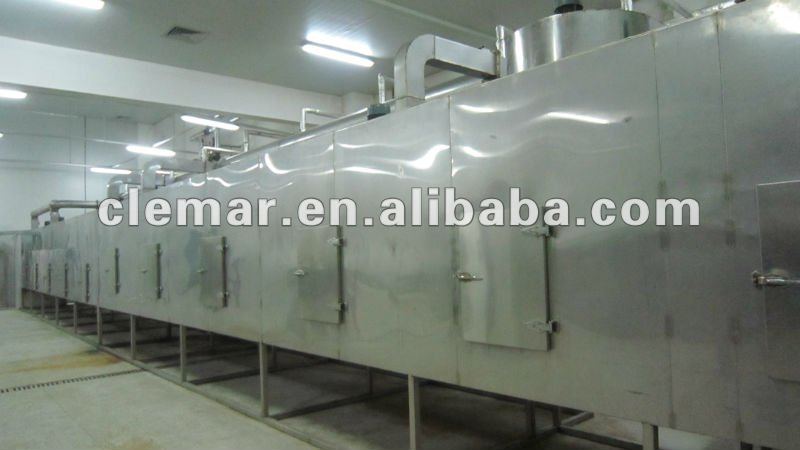

Description of desiccated coconut processing line

The raw materials to be treated should distribute on the conveyer belt through suitable mechanism such as star distributor, swing belt, Crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to low or from low to up. In this way raw materials can be dried evenly.

Application of desiccated coconut processing line

The belt dryer is an ordinary continuous drying equipment. It is widely used for chemical industry, foodstuff industry, pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.

Features of desiccated coconut processing line

1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.

2,The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.

3,Most air is recycled to realize saving energy

4,The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.

5,Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.

Technical parameters of desiccated coconut processing line

Type		DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Quantity of unit		4	5	4	5	4	5	10
Belt width(m)		1.2		1.6		2
Length of drying section(m)		8	10	8	10	8	10	20
Thickness of raw material(mm)		≤60
Operation temperature(°C)		50-140
Steam pressure(MPa)		0.2-0.8
Steam consume(kg/h)		120-300	150-375	150-375	170-470	180-500	225-600	450-1200
Drying time(h)		0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
Drying strength(kg/h)		60-160	80-220	75-220	95-250	100-260	120-300	240-600
Power equipped(kw)		11.4	13.6	11.4	13.6	14.7	15.8	36.8
Overall dimensions	L(m)	9.56	11.56	9.56	11.56	9.56	11.56	21.56
	W(m)	1.49	1.49	1.9	1.9	2.32	2.32	2.32
	H(m)	2.3	2.3	2.4	2.4	2.5	2.5	2.5
weight(kg)		4500	5600	5300	6400	6200	7500	14000

Type:	Tray Dryer	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Lemar
Model Number:	DW	Packing:	wooden case	Material:	Stainless steel
