DLF-2 Continuous Vacuum Packaging Machine,China Xiaokang price supplier

l  Bonner color sensor, light film color film can be used。

l  MITSUBISHI servo motor controls box walking, accurate positioning

l  Japan MITSUBISHI computer control

l  Pneumatic parts adopt Japanese SMC valve terminal type pneumatic system.

l  Equipped with imported automatic recycle system for wasted and scrap.

l  The nitrogen displacement rate can reach more than 99.5。

l   Packaging efficiency 600-720 boxes / hour（According to the box and type）。

l  Stainless steel chain and aluminum alloy mould

l   Servo motor control, adjustable at any speed。

l   Vacuum nitrogen filling device。

l  Vacuum pumps use Germany's best Busch brand。

l  The main material uses 304 stainless steel and aluminum alloy。

3. Working Principle Of Equipment

First put the product in the tray, and then put the tray into the discharge area of the equipment. The tray enters the sealing mold as the chain moves forward, the die rises, and the upper film is attached to the tray in the sealing die，vacuum first（It can be packed with nitrogen or mixed gas on the basis of vacuum packaging on the basis of user's product packaging requirements） seal、（The upper membrane and the tray are sealed together）die cutting，Finally, exhaust and die reduction，The packaged products with the chain continue to run forward, discharge from the discharge port. The equipment also added a photoelectric tracking color film alignment system, cost savings for users, improve production efficiency and packaging grades. Configuration of waste material recycling system, keep the environment clean. Our company has first-class customer service ability, to solve the user's menace from the rear.

4. Equipment Requirement

The equipment needs three-phase 380V power supply. The user with the compressed air is larger than 0.6MPa, with the volume of about 0.3 cubic meters / minute. Ordinary tap water cooling pressure more than 0.15Mpa (recycled)

5. Working Capacity

Such as: boxes within 220x140 mm, the height of the box is generally not more than 60 millimeters, each step into 2 boxes of packaging:

Vacuum works 6 times a minute, packed 12 boxes per minute, packed 720 boxes per hour。

After vacuum, nitrogen is packed 5 times per minute, packed 10 boxes per minute, packed 600 boxes per hour。

6. Range Of Application

It is suitable for all kinds of food, meat products, dry fruits, seafood, eggs, fruits and vegetables, pickles, cooling meat, pharmaceutical products, hardware components, medical equipment and so on.

7. Price

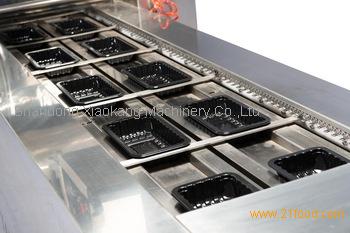

8. Picture
