Dog food pellet making machine,China PX price supplier

Dog food  pellet machine

1. Description

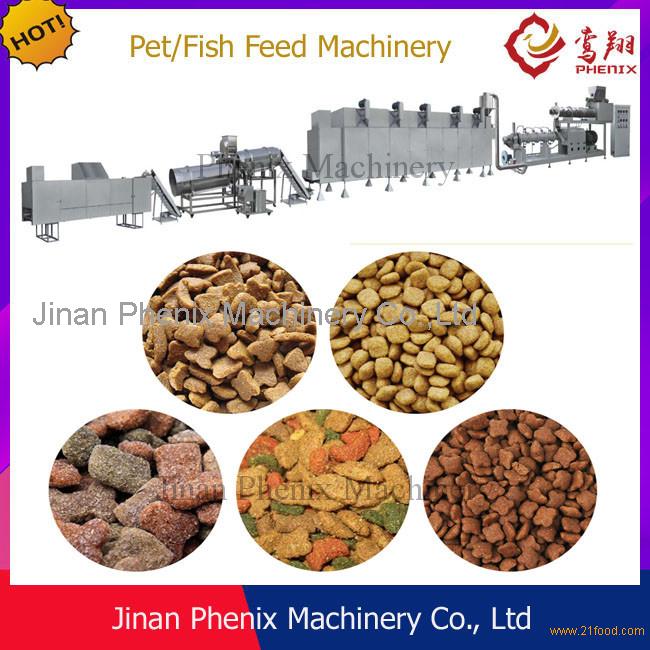

Dog food pellet machine is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. Pet food line mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.

This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.

2. Raw materials: adopts  soya flour, corn flour, fish meal etc. as raw materials

3. Products:Variety shapes are available by adjusting the die in the extruder

4. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton/h, 2ton/h

5. Flow chart:Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials:All the machines are made by stainless steel

8. Technical Parameters

Model     Installed power      Real power     Output    Dimension

PX65      81.5kw    53kw      100-150kg/h   21000x1200x2200mm

PX70      115kw     76kw      200-240kg/h   23000x1500x2200mm

PX85      181kw     117kw     400-500kg/h   28000x3500x4300mm

PX95      135kw     100kw     1000kg/h     30000x3500x4300mm

PX115     165kw     115kw     2000kg/h     30000x3500x4300mm

9. Outside package: Standard export wooden case. Inner package: stretch film
