Double automatic Rotating Retort hot water spray retort

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Day

Payment Terms: US $100 - 10,000 / Set

Update Time:2021-10-10

Contact Supplier

Product Description

1.hot water circulating sterilizing
2.suitable for different size of packaging
3.F value can be use

Product Description

suitable for all kinds of package

with heat exchanger
heat directly,
full automatic control
Food Processing Machinery

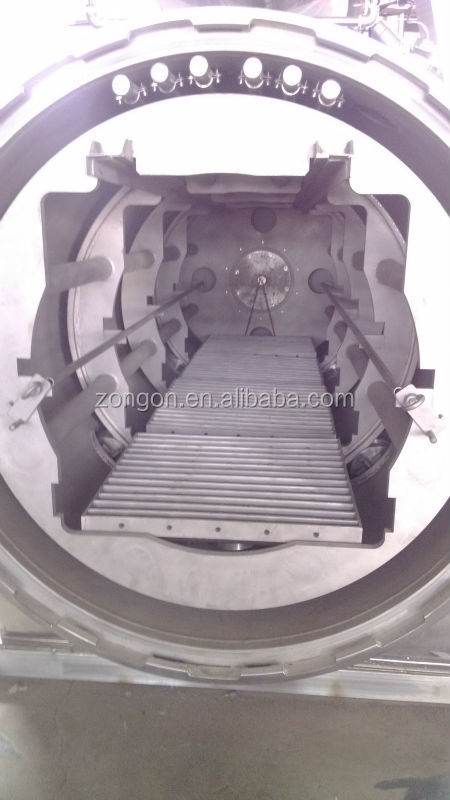

The feature of the rotary type autoclave

Items rotating in the pot as a whole could fully utilize heat inside without blind angle and sterilize accurately and rapidly. This autoclave is especially applicable to items with heavy solid in liquid and different density can food with viscidity. In this pot rotate them during the Sterilization to remains even in shelf life.

The overview of the rotary type autoclave

Food rotated in the device continually and slowly which makes the heat spread fast and in average. The sterilization time is reduced and avoid food overcooked and burned phenomenon. Temperature control system automatically adjusts the pressure in line with standard model to avoid container deformation and damage and increase rate of final product. Pre-setting sterilization effect (F value) could be adopted to control the whole sterilization process, which makes the sterilization effect visual and controllable and also guarantees the consistency of sterilization effect on the same batch without influence by temperature rise speed and product volume.

revolvable autoclave/ revolvable autoclave

The wide applicable scope:

Jam, eight treasure congee, Juice milk, milk beverage( corn mile, walnut milk, peanut milk, items with deposit) ect.

food processing machinery

The size and the specification:

Outside measurement(mm)			total installed power(kw)	air consumption(m3/Min)	coolant water consumption (m3/batch)	coolant consumption pressure(Mpa)	steam consumption(Kg/batch)	steam pressure(Mpa)	Max working temperature(°C)	max working pressure(Mpa)	basket number	The diameter of the sterilizer(mm)
length	width	high	total installed power(kw)	air consumption(m3/Min)	coolant water consumption (m3/batch)	coolant consumption pressure(Mpa)	steam consumption(Kg/batch)	steam pressure(Mpa)	Max working temperature(°C)	max working pressure(Mpa)	basket number	The diameter of the sterilizer(mm)
5800	1900	3600	18	0.6-0.8	4-6	0.3	300	0.6	147	0.35	4	1100
5800	2000	4000	26	0.6-0.8	5-8	0.3	400	0.6	147	0.35	4	1300
5800	2200	4400	30	0.8-1.2	8-12	0.3	500	0.6	147	0.35	4	1500

The material:

You can choose the following 2 kinds of material as your demand:

1. stainless steel SUS304

2. Carbon steel Q235- B

Our Services

Packaging & Shipping

export standard packing .

Condition:	New	Place of Origin:	Shandong China (Mainland)	Brand Name:	Zongon
Model Number:	1200X3600	Usage:	Canned Food"> Canned Food	Type:	Autoclave
Warranty:	3year	After-sales Service Provided:	Overseas service center available	Material:	All sus steel

Company Profile

Name: Zhucheng Zongon Machinery Co., Ltd.

Main Products: retort,sterilization retort,jacket pot,Mixer pot,Full automatic spray retort

Business Type: Manufacturer, Trading Company

Total Employees: 51 - 100 People

Established Year: 2002

Main Markets: Eastern Europe, Eastern Asia, Northern Europe, Western Europe, South America

Address: zhucheng

Our company was established in 2002, and we are committed to engaging in food fully automatic new atmosphere retorts, automatic universal cooking pot, new gas modulation nitrogen machine, new modified atmosphere packaging machines, new modified atmosphere food technology, conventional high-temperature sterilization pot sandwich pot research, design, manufacturing, modern services in one company, and our company has a national pressure vessel manufacturing license qualification(Certificate Number: TS2237350-2013), and successfully passed the food safety regulator's Shandong Province, the KYL type retorts Open the door security chain device identification(ID: SY-WT-2010-0019), and the products have passed the ISO9001 international management system certification, and our company has independent import and export operation rights.

We introduced Japanese original atmosphere sterilization technology, combined with the actual needs of the domestic food companies, developed a new atmosphere sterilization products, and set a precedent for the domestic food companies, which is limited to the high temperature and high pressure sterilization mode, completely replaced imported sterilization equipment, and our company has with the Chinese Academy of Agricultural Sciences, Dalian Ocean University, Beijing days Ballad of food and other tertiary institutions with well-known food companies, for food innovation sterilization process, to solve the high-temperature sterilization shelf life preservation, not to the taste of the ills through new technology and new gas tone combination of equipment, won a huge market for the enterprise. Our company has an independent high standard of food laboratories of the new atmosphere, thermal sterilization of laboratory and sterilization testing laboratories, and all products meet the certification standards of the U.S. FDA, and heat distribution test with F0 value of the test site to ensure that each customer can experience the entire food process and equipment operating status. The products are sold to various provinces and municipalities, and exported to Japan, Europe and the United States, Vietnam, Malaysia, Mongolia, Germany, Russia and other countries.

Our company has a sound service system, to provide users with professional, fast, quality service, after-sales personnel arrived at the scene within 48 hours after received telephone to ensure that the user no worries. Innovative quality services has become the congregation work one of the core competencies of our company.

We advocate the "integrity, pragmatic, innovative and efficient" business philosophy, adhere to the "people-oriented, and quality win" Zhichang does not seek the best, just better" is our unswerving pursuit, and we will be "The class corporate image, class design, first-class product quality" to create a new image of the public industrial enterprises.
