Sterilization machine specifications:
Short process times
Optimum temperature distribution and accurate pressure control.
Double Layer Sterilization Machine for Plastic Bottle&Glass Bottle s uitable for all kinds of packaging:
Plastic container: PP bottle,HDPE bottle
Soft bags: aluminium bags, transparent bags, vacuum bags, HRP
Tin cans
Double Layer Sterilization Machine for Plastic Bottle&Glass Bottle Features:
1. Direct steam heating with spray; optional indirect heating available upon request , The cooling water and process water are not mixed, avoiding the secondary pollution.
2. Direct steam injection and pressurized air combine in a robust process delivery system using a small volume of water circulated through efficiently distributed spray nozzles.
3. Static, oscillating and rotary systems available .
4. The most energy efficient & flexible batch system .
5. Vessels and piping in 304L stainless steel .
6. Automatic door and manual door are available.
7. Steam sterilization (option)
8. Advanced SIMMENS control system, easy operation.
Double Layer Sterilization Machine for Plastic Bottle&Glass Bottle Specifications:
Item | Unit | 1000# | 1200# | 1300# | 1500# | |||||
Chamber Length | mm | 2400 | 2400 | 3200 | 3600 | 4000 | 3600 | 4500 | 4000 | 5000 |
Total Length | mm | 3900 | 4400 | 5200 | 5600 | 6000 | 6200 | 6700 | 6200 | 7200 |
Total Width | mm | 3400 | 4400 | 4400 | 4400 | 4700 | 4500 | 5200 | 4900 | 5900 |
Total Height | mm | 1900 | 2100 | 2100 | 2100 | 2100 | 2300 | 2300 | 2700 | 2700 |
Capacity | m ³ | 2.2 × 2 | 3.2 × 2 | 4 × 2 | 4.6 × 2 | 4.9 × 2 | 5.3 × 2 | 6.5 × 2 | 7.8 × 2 | 9.6 × 2 |
Weight | kg | 2000 | 2200 | 2400 | 2500 | 2600 | 2700 | 3000 | 3200 | 3800 |
Basket Capacity | 3 × 2 | 3 × 2 | 4 × 2 | 4 × 2 | 5 × 2 | 4 × 2 | 5 × 2 | 4 × 2 | 5 × 2 | |
Steam Consumption | IT 30°C | 390 | 570 | 710 | 815 | 870 | 940 | 1150 | 1380 | 1700 |
IT110°C | 45 | 65 | 80 | 90 | 95 | 105 | 130 | 155 | 190 | |
Total Power | KW | 12 | 20 | 20 | 20 | 20 | 28 | 28 | 46 | 46 |
Design Temperature
|
145° | |||||||||
Test Pressure | 0.44Mpa | |||||||||
Design Pressure | 0.35Mpa |

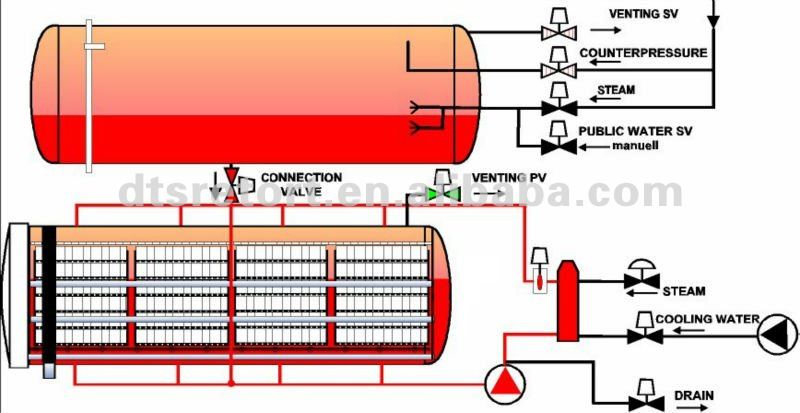

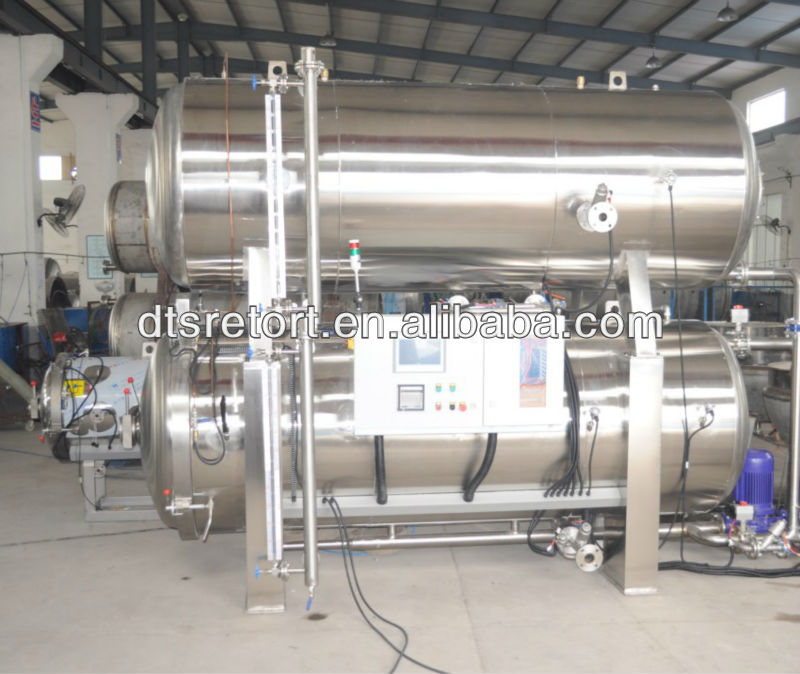

Pictures of Double Layer Sterilization Machine for Plastic Bottle&Glass Bottle :
If any new inquiry, you're welcome to reach us here and we will try our best to satisfy you well with competitive price.
Condition: |
New
|
Place of Origin: |
Shandong China (Mainland)
|
Brand Name: |
DTS
|
Model Number: |
1300#
|
Usage: |
canned food&beverages&vegetables&meat&pet food&milk etc.
|
Type: |
Autoclave
|
Voltage: |
made to order
|
Power(W): |
9-31KW
|
Weight: |
3t
|
Dimension(L*W*H): |
3600*1900*3500
|
Warranty: |
12 Months
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
material: |
304L stainless steel
|
