double layer stretch film making machine for automatic ball lollipop wrapping machine,China Aoxiang price supplier

double layer stretch film making machine for automatic ball lollipop wrapping machine

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month

Payment Terms: US $75,000 - 80,000 / Set

Update Time:2014-09-25

Contact Supplier

Product Description

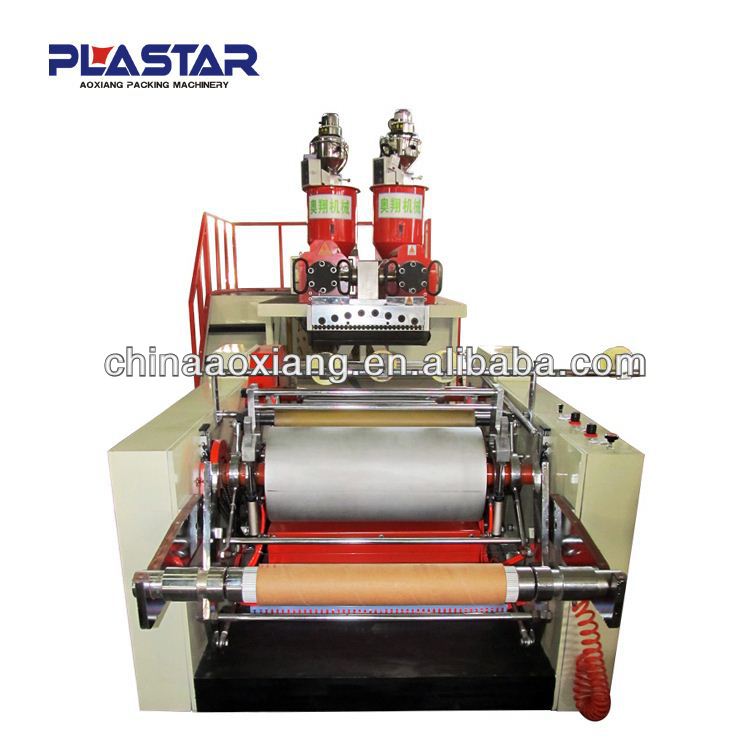

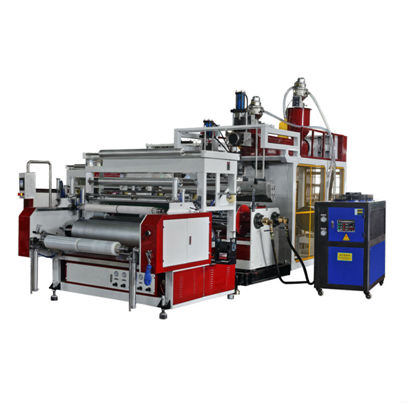

Co-extrusion Stretch Film Making Machine:
1.Single or double can be acceptable.
2.Film Width is according to your requirements

automatic ball lollipop wrapping machine:

Main technical variables:

Name	Three Layers Stretch Film Machine A/B/C
Model	AX-55-55- 90 -1500
Configuration	High standard
Rewinder width	1500mm/500mm × 3rolls
Output	1 50 Kg/h
Working Principle	Salivation Extrusion Method
Suitable Material	LLDPE

NO.	Name	Data
1	Screw Diameter(mm)	Φ5 5 *2 9 0 x1
2	L/D ratio of screw	30:1
3	G ear box	173/173/180
4	Thinkness of film	0.015-0.05 (mm)
5	Width of film	1 5 00 (mm)
6	Width of die head	1750(mm)
7	Speed of screw	50 - 10 0rpm
8	Main motor power	37KW/18.5KW/18.5KW
9	Traction motor	2.2 KW
10	Rewinding motor	7.5 KW
1 2	Total power	92 KW
1 3	Out P ut	180KG/H
1 5	Overall dimensions(LWH)	8 * 4.5 * 2 .5 (M)

Condition:	New	Application:	Film	Plastic Processed:	PE,LLDPE
Screw Design:	three screw co-extrusion	Automatic Grade:	full automatic	Place of Origin:	Zhejiang China (Mainland)
Brand Name:	Aoxiang	Model Number:	DF-65/75	Voltage:	380V/50HZ
Power(W):	122KW	Dimension(LWH):	84.52.5M	Weight:	7T
Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas	Blow Moulding Type:	Stretch Blow Moulding
Automatic:	Yes	Product Type:	Pe Film CPP FILM	Processing Type:	Extruding Machine
Rewinder:	Control by PLC	Die head:	T die head	Roller:	450mm Roller
service:	one year guarantee

Other Products

marshmallow making machine

marshmallow wrapping machinery for stretch film machine

marshmallow for stretch film machine

lollipop stick extruder

Company Profile

Name: Ruian Aoxiang Packing Machine Co., Ltd.

Main Products: Film Blowing Machine,Stretch Film Machine,Slitting and Rewinding Machine,Socks Boarding Machine

Business Type: Manufacturer

Total Employees: 51 - 100 People

Established Year: 2008

Main Markets: Southeast Asia, Domestic Market, Northern Europe, Eastern Asia, North America

Address: Fuqiang South Road Xincheng Industrial Area, Ruian City

Located in Rui'an, Zhejiang, where is at the shore of East Sea with beautiful scenery, Ruian Aoxiang Packing Machine Co., Ltd. With a long historical story is a professional manufacturer specialized in producing various packing machines based on advanced technologies. With the help of advanced technology, practical enterprise spirit and full quality management, our company is well known in the whole packing machine market due to our completed equipment and well-deserved reputation.

Our main products cover wrapping film machine, inflation film manufacturing machine, bag machine, printing machine, bubble wrap machine, multifunction coating machine, and completed plastic packing machine.

Our products have been sold to worldwide countries and areas, and enjoy good reputations in the Southeast Asia, the Middle East, Central Asia, Russia, Africa and other countries.

Since our establishment, based on "Credit by Quality, Brand by Credit and Market by Brand" and the tenet of "Competitive Product by Technology, Market Guidance by Service", our company would like to provide our customers with reliable and excellent products through technical innovation and customer satisfaction. We also try our best to make contribution for entire society through high quality and perfect service.

Let's work together to achieve the goal of mutual success! more
