Dough Mixer Machine,China HYWELL price supplier

1.Dough Mixer Machine reach GMP

2.Dough Mixer Machine is one kinds of dough mixer machine

3.Dough Mixer Machine made by all stainless steel

Dough Mixer Machine Features:

1. Solid and liquid mixer is suitable for liquid and powder.
2. The flour special mixing machine owns high efficiency and uniformity.
3. Our process of flour mixer has achieved GMP.
4. This paste material blender is easy to clean.

Use and Feature of Dough Mixer Machine:

CH Series Dough Mixer Machine is wide used for mixing powder or damp material and can mix main and auxiliary material with different ration uniformly. Main use to mix liquid and powder and to get the wet materials and use swing granulator to make the wet materials into wet granules ,for example: chicken essence granules manufacturing line.

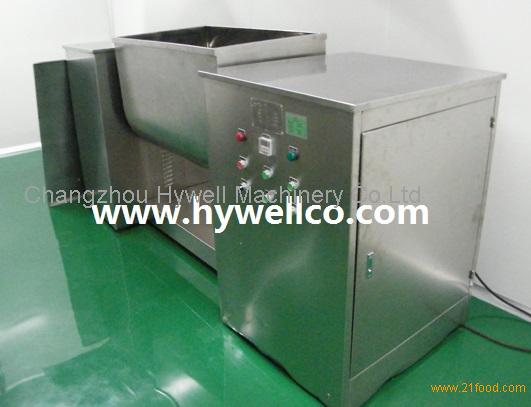

The Hywell Machinery CH series Sigma Mixer, which is also known as the Double Arm Mixers, or Z Blade Mixer, is used for the mixing-kneading of materials with very viscosity With its unique design of Z-shaped mixing tools installed in two semi-cylinders, the Hywell Machinery Guttered Mixer is able to provide a combined functions of compressing, stretching, folding, kneading & mixing.

Sigma Mixer Introduction

CH series Blade Mixers are constructed from either 304 stainless steel or 316L Stainless Steel in sizes ranging 100L to 400L. Products may be discharged via  tilt discharge. This kinds paste mixing machine widely used in the chemical, food, sealing compound and paint industries, among others. The Z blade wet mixer is usually used as the front-end mixing equipment of the instant granulation production line. It is used in conjunction with the swing granulator or the rotary granulator and the vibrating fluidized bed dryer of our company. Welcome to consult Hywell Machinery.

Sigma Mixers Working Principles

The mixing elements of paste mixer are one or two Z type steel casted blades. They contra rotate inward fitted at close or specified clearance with the container to give thorough and uniform mixing. The mixing action is a combination of bulk movement, shearing, stretching, folding, dividing, and recombining as the material is pulled and squeezed against blades, saddle, and side walls. Continually new layers of material are compressed and folded over one another and are subjected to shearing forces. New surfaces are formed and the components can penetrate. The blades, which are ground and polished, successively sweep all points of the trough surface during each revolution, at the same time dividing the batch continuously across the saddle piece and thereby achieving a perfect mix.
