| Product Name
|

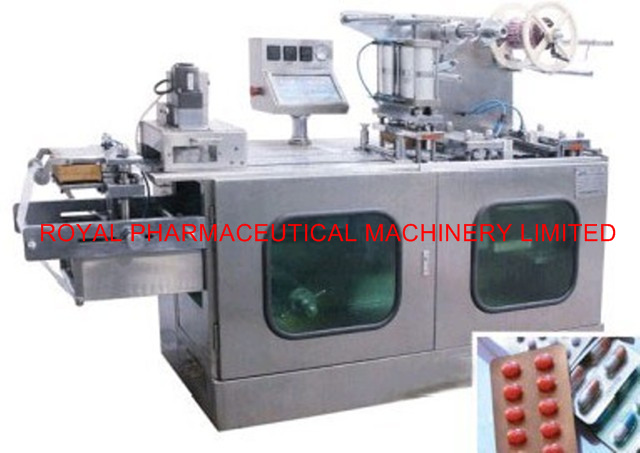

Flat Plate Automatic Blister Packing machine
|
| Product model
|
DPB-140
|
| Product specify
|
It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
|
Instruction and features:
It is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and dosage room of hospital, especially, small batch and many kinds. The machine is adopted with micro-computer PLC, frequency converter, touch panel operation. It can automatically finish the processed of feeding, molding, heat-sealing, impressing, stamping and so on. It is the ideal packaging equipment convenience operation, full purpose function. The product passed the provincial science and technology appraisal.
Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
Heat-sealing station fixed, forming, impressing and cutting etc spare parts can move freely to adjust the distance and easy to change dies.
Manipulator towing, adjustable stroke, it can be suited for the packaging of various size and print plates.
Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape etc liquid, paste and injector.
Notes:
It can optional add opposite sealing device with cursor trace.
It can optional Plexiglas Cover.
It can optional add ink-jet printer.
Main technical parameters
| Cutting Frequency(Times/min)
|
6-50
|
| Production Capacity (ten thous pics/h)
|
39855
|
| Max. Forming Area and Depth(mm)
|
130*130*26 (Standard Depth 14mm)
|
| Stroke(mm)
|
40-140 (Can Be Manufactured As User's Requirements)
|
| Standard Plate(mm)
|
80×57(Can Be Manufactured As User's Requirements)
|
| Air Pressure(Mpa)
|
0.4-0.6
|
| Air Supply
|
≥0.2m3/min
|
| Total Power
|
380V/220V 50Hz 3.6KW
|
| Main Motor Power (KW)
|
0.75
|
| PVC Hard Pieces(mm)
|
0.15-0.5*140
|
| PTP Aluminum Foil(mm)
|
0.02-0.035*140
|
| Dialysis Paper(mm)
|
50-100g*140
|
| Mould Cooling
|
Tap Water Or Circulating Water
|
| Overall Dimensions(mm)
|
2300*560*1410(L*W*H)
|
| Weight(Kg)
|
750
|
Royal Pharmaceutical Machinery Limited is a specially factory mainly for produce pharmaceutical machinery , such as tablet press, capsule filling machine, High-speed pill machine, blister packing machine, given bag packing machine, tea bag packing machine, cartoning packing machine and mult- function labeling machine ,etc. And we have a branch factory mainly for produce: heat seal filter papers, non heat seal filter papers and coffee filter papers. Our filter papers had been passed American standard FDA, European standard SGS, Quality COC certificate, ISO, LFGB, analysis report, etc.
We have many users in aboard, they all benefit from our machines and packing material high quality and competitive price, welcome all the clients come to our factory to visit and send a inquiry to us. We are sure to give u a satisfied answer!
|
|
|
|
|
|
|
|
|
|
|
|
|
|
