DPB-140B Self-checking Aluminum-Aluminum Blister Packing Machine,China price supplier

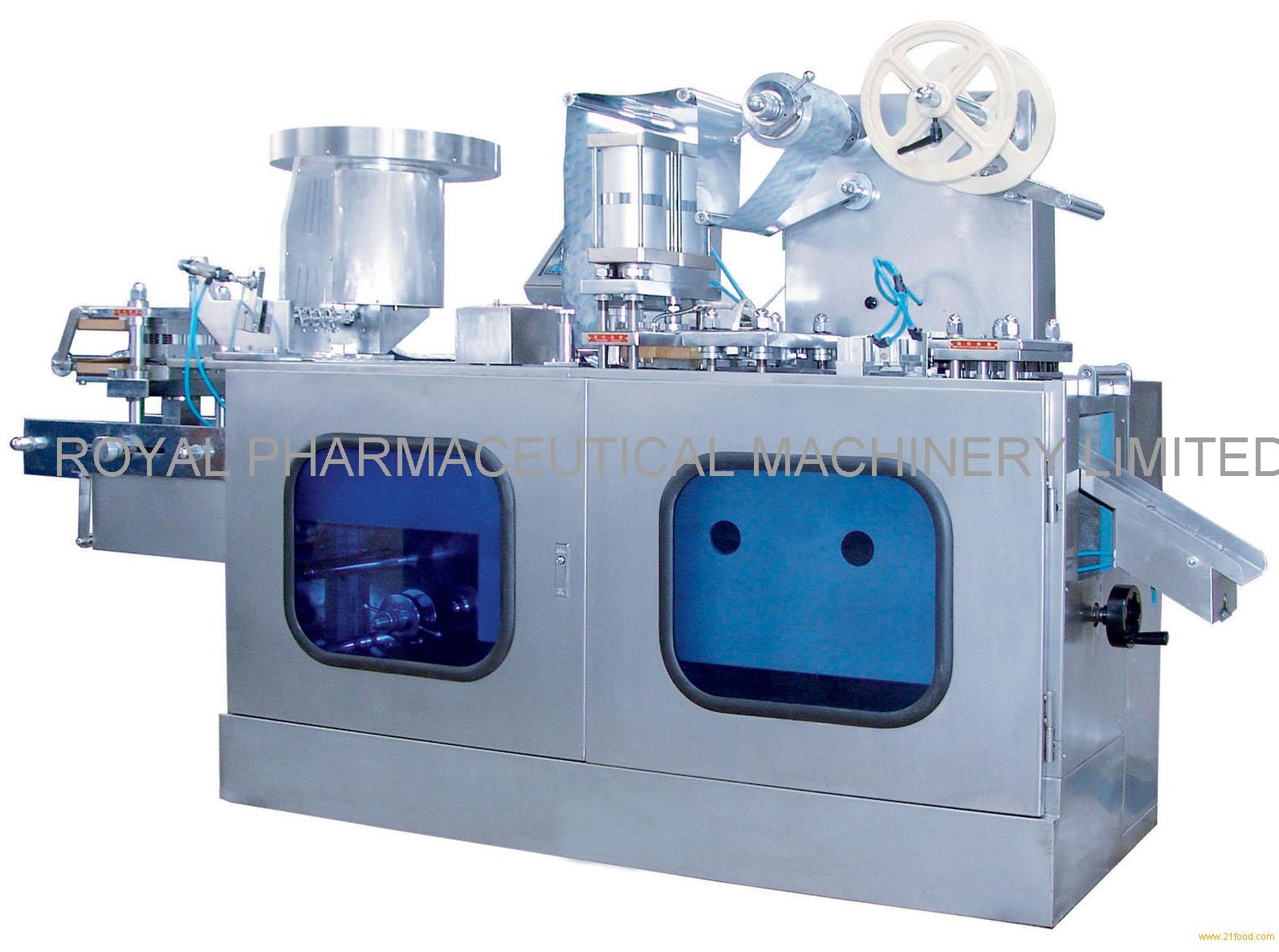

DPB-140B Self-checking Aluminum-Aluminum Blister Packing Machine

FOB Price:Price can be negotiated

Update Time:2021-08-27

Product Description

Product Name	Self-checking Aluminum-Aluminum Blister Packing machine
Product model	DPB-140B
Product specify	It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packaging in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

Instruction and features:

It is the latest scientific products for pharmaceutical factory and healthcare factory as well as foodstuff factory; it can check on-line and eliminate the waste plate by itself. The machine adopts frequency converter and the whole system was controlled by PLC, which can be operated in man-machine interface. It is an ideal and popular packing equipment with high automation, easy for operation, advanced technology, full purpose, long durability and in accordance with GMP requirement. The products have passed the provincial science and technology appraisal.

Equipped with fiber-optic or inductive checking mechanism, which can eliminate by itself the waste plate with lack of tablet or other packed material, with recovery rate of 100%.

Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, low noise and long service life.

Forming mould, hot-sealing mould and pressing mould adopt bolt orientation, with exact orientation, easy to change moulds and material saving.

Heat-sealing station fixed, forming, pressing and cutting spare parts can move freely to adjust the distance and easy to change moulds.

Manipulator towing, adjustable travel range, it can be suited for blister packing of various sizes. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape etc.

The machine conforms to GMP requirement and is suitable for aluminum-aluminum, aluminum-plastic, paper-plastic packing.

Notes:
· Eye marking sealing device with sensor trace can be added for option.

· Plexiglas Cover can be added for option.

Main technical parameters:

Cutting Time(t/min)	Al-AL 6-25
	Al-plastic 6-50
	Paper-plastic 6-50
Max. Production Capacity ??? pcs/h ???	Al-Al ≤45000
Max. Production Capacity ??? pcs/h ???	Al-plastic ≤110000
Max Forming Area And Depth(mm)	Al-Al 13013014
Max Forming Area And Depth(mm)	Al-plastic 13013026
Travel Range (mm)	40-140 (Can be manufactured as user's requirements)
Standard Plate (mm)	80*57(Can be manufactured as user's requirements)
Air Pressure (Mpa)	0.4-0.6
Air Supply	≥0.2m3/min
Total Power	380V/220V 50Hz 3.6kw
Main Motor Power (kw)	0.75
Forming Aluminum (mm)	0.1-0.15*140
PVC Sheet (mm)	0.15-0.5*140
PTP Aluminum Foil (mm)	0.02-0.035*140
Dialysis Paper (mm)	50-100g*140
Mould Cooling	Tap Water or Circulating Water
Overall Dimensions (mm)	23005601410 ( LWH )
Weight (kg)	750
