Instruction and features:

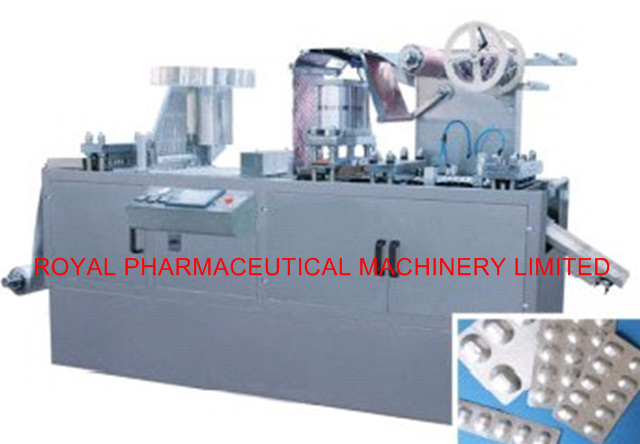

The machine is the latest generation product in our company adopting micro-computer PLC, frequency converter, and man-machine interface. It can check on-line and eliminate the waste plate by itself. In accordance with GMP rule requirement, it is an ideal blister packaging machine for aluminum-aluminum, aluminum-plastic, paper-plastic. And it has got high popularity. The products have been appraised as the provincial science and technology accomplishments.
Collocated fiber-optic checking mechanism, which can eliminate by itself the waste plate with lack of particle, with finished product rate of 100%.
Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt mandrel orientation, each can move freely in the mandrel when shaking the hand wheel, and the machine equipped with a measuring stick and solid bear nuts, ease of calibration and positioning.
Forming dies, hot-sealing dies and impressing dies adopt bolt orientation, with exact orientation, easy to change dies and material saving.
Flat structure, registration heating, mechanic forming, up and down moire, air cylinder heating sealing, manipulator draw, adjustable stroke, ease of operation., which can fit for medicine-card packaging of different sizes.
Main transmission part adopts parallel axis and bevel wheel speed reducer, with stable running, low noise and. long longevity.
The molding hard Aluminum of other factories adopts the concave-convex coordination to lock the mold. And it can leave behind a scoop channel on the plate. The stroke will be prolonged above 2mm, so that the scoop channel will be cut for waste side. The waste material amounts to several hundred thousand Yuan for a year. The molding hard Aluminum of this equipment adopts the import& specially rubber lock mold. The surface of the molding is smooth. Each time for cutting all can save above 2mm the material approximately is2.5%. Because of the price of molding aluminum is expensive. This company's equipment may save the massive materials every year for you, the economic efficiency is remarkable.
The body can be manufactured separately in order to easily transport the machine into workshop.
Notes:
It can optional add opposite sealing device with cursor trace.
It can optional Plexiglas Cover.
It can optional add ink-jet printer.
Main technical parameters:
| Cutting Time(t/min)
|
Al-AL 6-25
|
| Al-plastic 6-50
|
|
| Paper-plastic 6-50
|
|
| Max Production Capacity(ten thous pics/h)
|
Al-Al ≤ 11.Al-plastic ≤ 23
|
| Max Forming Area And Depth(mm)
|
Al-Al 240*150*15.Al-plastic 240*150*26
|
| Stroke(mm)
|
40-160 (Can Be Manufactured As User's Requirements)
|
| Standard Plate (mm)
|
80*57 (Can Be Manufactured As User's Requirements)
|
| Air Pressure(Mpa)
|
0.4-0.6
|
| Air Supply
|
≥ 0.3m3/min
|
| Total Power
|
380V/220V 50Hz 6.2kw
|
| Main Motor Power(KW)
|
1.5
|
| Forming Aluminum(mm)
|
0.085-0.1*250
|
| PVC Hard Pieces (mm)
|
0.15-0.5*250
|
| PTP Aluminum Foil(mm)
|
0.02-0.035*250
|
| Weight(Kg)
|
1600
|
Royal Pharmaceutical Machinery Limited is a specially factory mainly for produce pharmaceutical machinery , such as tablet press, capsule filling machine, High-speed pill machine, blister packing machine, given bag packing machine, tea bag packing machine, cartoning packing machine and mult- function labeling machine ,etc. And we have a branch factory mainly for produce: heat seal filter papers, non heat seal filter papers and coffee filter papers. Our filter papers had been passed American standard FDA, European standard SGS, Quality COC certificate, ISO, LFGB, analysis report, etc.
We have many users in aboard, they all benefit from our machines and packing material high quality and competitive price, welcome all the clients come to our factory to visit and send a inquiry to us. We are sure to give u a satisfied answer!
|
|
|
|
|
|
|
|
|
|
|
|
|
