DW/DWT Hot Air Circulating Mesh Belt Dryer Conveyor Dryer Dehydrator for balsam pear/Momordica chara,China haomaidrying price supplier

DW/DWT Hot Air Circulating Mesh Belt Dryer Conveyor Dryer Dehydrator for balsam pear/Momordica chara

FOB Price:Price can be negotiated/set/sets

Min. Order: 1/set/sets/set/sets

Production Capacity:20 set/sets per Month

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Update Time:2024-01-02

Contact Supplier

Product Description

Product Description

Product Application
 The mesh belt dryer is a common continuous drying equipment, it is widely applied in chemical, foodstuff, pharmacy, construction material, and electronic industry, and particularly it is adapt to dry the raw materials which have good air permeability and shaped in sheet, strip or granule. For ointment stuff, the wisest way to dry it are: shaped those stuff first, then drying it.

Main Features

In the mesh belt dryer system, the following data can be a special set and adjusted in order to achieve the best drying effect: heating temperature, air flow, staying time.

Agility specified: we can add mesh belt washing system and product cooling system in mesh belt dryer system.

Agility operating: after conveying on mesh belt, wet material is dried in a totally sealed chamber during the whole drying process. Working condition is good because the system does not have powder leaking outside.

When wet material loaded in conveying belt, the relative position between every single material is quite stable. So for every single material, drying time is almost the same. This is especially suitable for drying that product that needs good color and uninformed water content. Additionally, during a drying process, the product will not be heavily shocked and vibrated, so granule size of granule will not break down. So this kind of mesh belt dryer is especially suitable for that product that should keep the good shape.

Haomai mesh belt dryer can also bake, cook and cooling raw material besides other than drying function.

Haomai mesh belt dryer designed intelligent air distribute construction in order to separate hot air into every single material uninformed.

Total construction is not complicated by Rank design. Through our human design principle, mesh belt dryer is easy for assembly, each for maintenance and transportation.

Model Item	DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Drying Unit(Qty)	4	5	4	5	4	5	10
Mesh Belt(m)	1.2		1.6		2
Drying Length(m)	8	10	8	10	8	10	20
Material Thickness（mm）	10-80
Drying Temperature (oC)	50-140
Steam Pressure(MPa)	0.2-0.8
Steam Consumption (kg/h)	120-300	150-375	150-400	180-500	180-500	225-600	450-1200
Drying Time (h)	0.2-1.2	1.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
Evaporation Capacity (kg/h2o/h)	60-160	80-200	85-220	100-260	100-260	120-300	240-600
Total Power (kw)	11.4	13.6	14.6	18.7	19.7	24.5	51
Total Weight (kg)	4500	5600	5300	6400	6200	7500	14000

Certifications

Detailed Images

Machine Parts

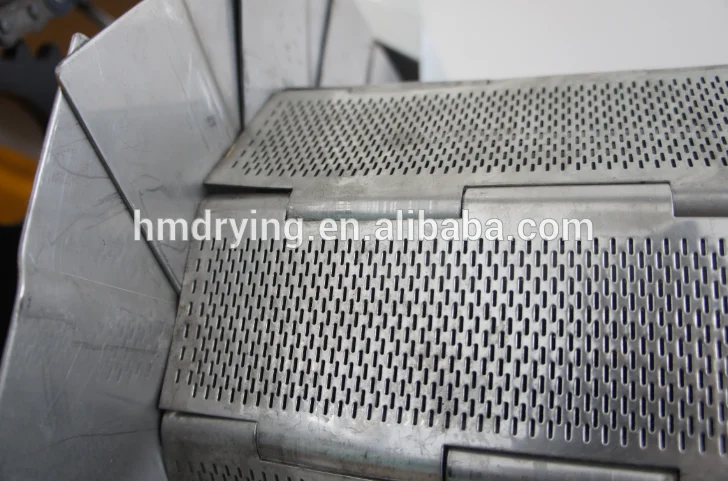

Name: the perforated plate
 Brand: Haomai
 Original: Jiangsu, China
 The perforated plate is more suitable for more granular materials, with high ventilation rate and high thermal efficiency.

Main Features

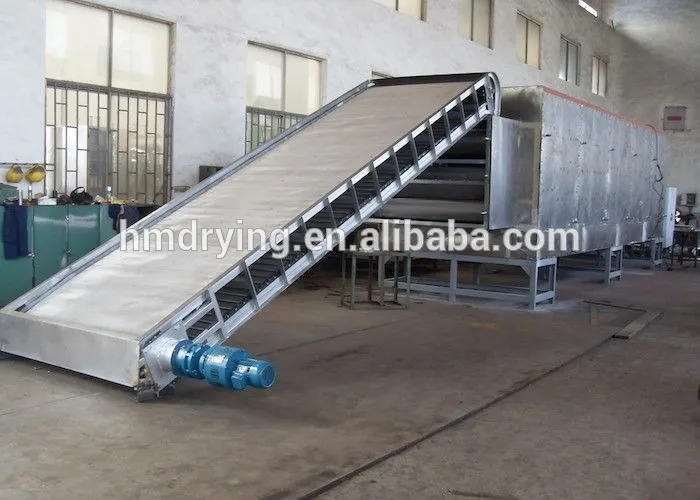

Name: Belt conveyor

 Brand: Haomai

 Original: Jiangsu, China

 Transporting materials is more efficient and faster.

Machine Parts

Name: Exhaust moisture pipe
 Brand: Haomai
 Original: Jiangsu, China
 With cyclone separator, cloth bag dust remover, make the exhaust emissions clean and meet environmental requirements.

Main Features

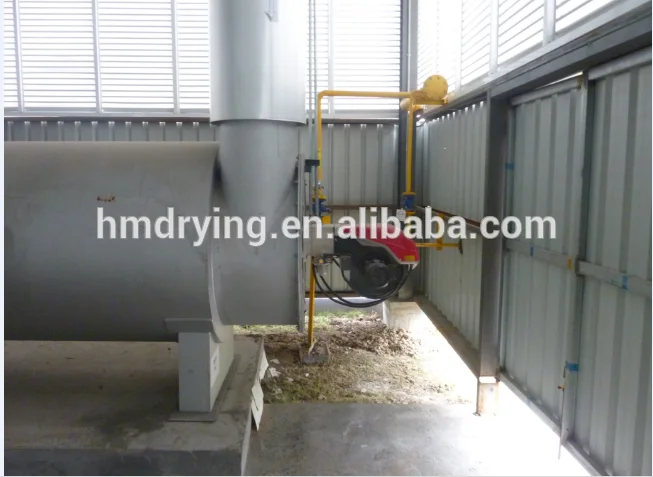

Name: Burner & hot air furnace
 Brand: RIELLO and Haomai
 Original: Italy & Jiangsu, China
 Heat source: Electricity, steam, Hot water, heat conduction oil, natural gas.
 Furnace: Gas fuel furnace, Coal fuel furnace, Oil fuel furnace

Our Service

Pre-Sales Service

* Inquiry and consulting support.
 * Sample testing support.
 * View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
 * Engineers available to service machinery overseas.

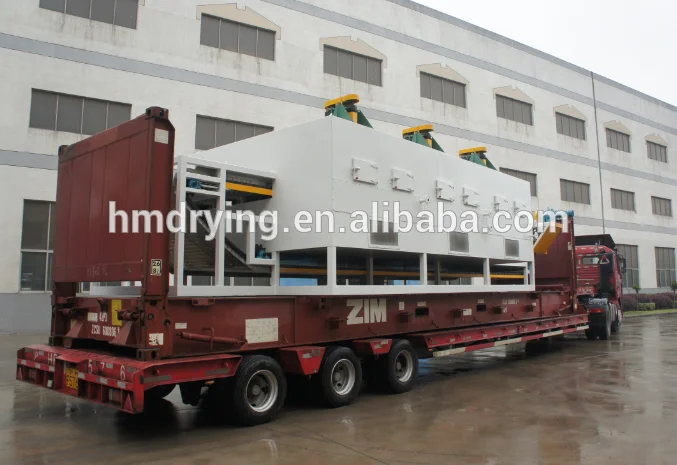

Packing & Delivery

Packaging
Size	Frame container
Weight	7 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers' special request.

Packaging
GPSize	40' GP, HP, 20' container
Weight	3-8T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

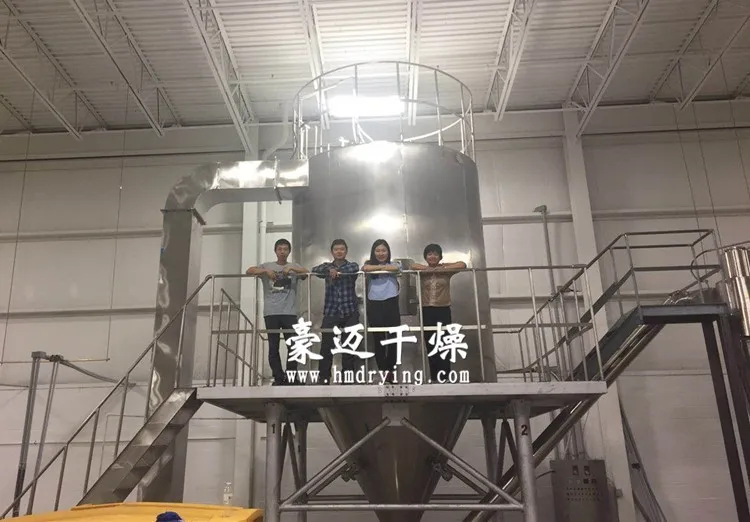

Spray dryer


91.8% Response Rate

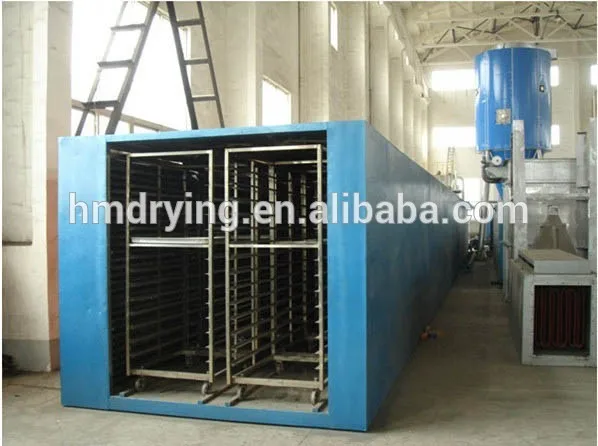

Tunnel oven

91.8% Response Rate

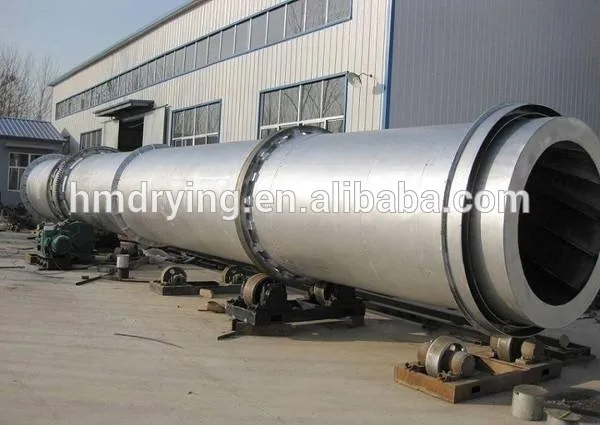

Rotary drum dryer


91.8% Response Rate

      FQA Q: Where is your factory? A: We are located in Changzhou City which about 150km away from Shanghai. Q: What’s the quality control procedure? A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality. Q: What is the warranty period? A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods. Q: What is the payment term? A: Our regular payment term is: 30% TT in advance, 70% TT before shipment. Q: Does your price include freight? A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
