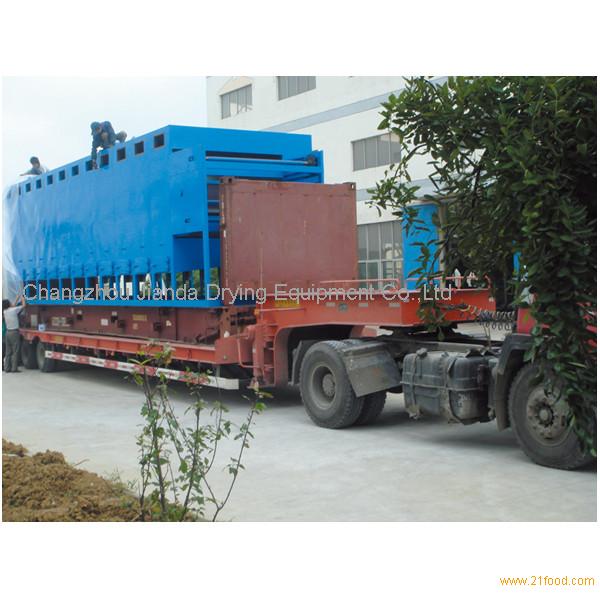

DW Series Multiple Layers Mesh-belt Drier

FOB Price:Price can be negotiated

Payment Terms: T/T, L/C, D/P,D/A

Update Time:2013-06-04

Contact Supplier

Product Description

Descriptions

It is chamber constructed drying machine. In drying chamber, we equipped with multiple conveying belt. Those conveying belts moves in drying chamber. Wet material will uniformly separated on first layer of mesh belt. After the action of chains, wet material transferred from first layer to second layer. After conveying and heat exchanging in different layer, wet material is dried and finally drop on the last layer.

Air flow is counter current: high temperature and low moist air is blowing from bottom layer to upper layer and contact with wet material. When hot air contact with material, it will absorb moist inside and remove the moisture out of drying chamber by exhaust fan.

It is full automatic and continuous operating drying machine, in which raw material will turn over during falling down to next conveying belt that will ensure of uniformly drying result.

Low labor consumption and good working condition. This type of mesh belt dryer is also easy for maintenance.

Skech of Strucrure

TECHNICAL PARAMETERS

Model	DW3-1.2-8	DW3-1.2-10	DW3-1.6-8	DW3-1.6-10	DW3-2-8	DW3-2-10
Unit number	4×3	5×3	4×3	5×3	4×3	5×3
Belt width (m)	1.2		1.6		2
Drying section length (m)	8×3	10×3	8×3	10×3	8×3	10×3
Thickness of the material to be covered (mm)	10-80
Temperature (°C)	50~150
Steam pressure (Mpa)	0.2~0.8
Steam consumption (kg/h)	360~600	420~720	450~840	480-960	1510-1080	630-1350
Heat exchange area(m ² )	816	1020	1056	1320	1344	1680
Drying strength (kgH2O/h)	150-450	240-650	220-600	280-750	300-600	350-850
Fan amount	14	17	14	17	14	17
Total power of the blower (kw)	30.8	32.6	30.8	32.6	54.2	56
Total power of the equipment (kw)	35.3	37.1	35.3	37.1	58.7	60.5
Overall dimensions (L×W×H)	9.77×2.2×4.7	11.7×2.2×4.7	9.77×2.6×4.7	11.7×2.6×4.7	9.77×3.06×4.7	11.77×3.06×4.9
Weight (kg)	4800×3	5780×3	5400×3	6550×3	6350×3	7800×3
