DWD Series Mesh-belt Drier,China Jianda price supplier

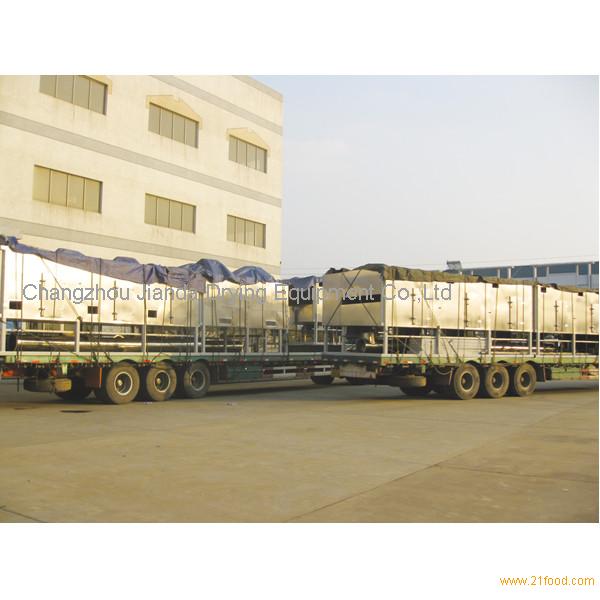

DWD Series Mesh-belt Drier
FOB Price:Price can be negotiated
Payment Terms: T/T, L/C, D/A, D/P
Update Time:2022-05-22
Product Description
Descriptions
DWD series belt drier is a new belt drier, it’s technology is more advanced. The machine has widely used feilds, because of more reasonable struction, high heating effect , steady operation. It is widely used in chemical industry, organic pigment, dystuff, slag products, feed, food and so on..
Principle
The raw material can be spread on the conveyer belt through suitable feeding mechanism. When drying, the hot air is foced into the system from both the up side and under side of the belt and material. It makes the surface of every particle become surface to be heated .The area contact with hot air is increased and the heat conduct area is increased remarkably. The diffused distance of moisture in raw material is shortened. Therefore the effective drying operation can be carried out. Particularly it is suitable for drying raw material that has been pre-formed. In a word ,if choose the series drier, it has high stability and energy saving.
Application
 It is suitable for drying for pre-shapping Paste raw materials,such as pigment ,dystuff and so on.
 It is suitable for drying for high molecular polymer, ferric oxide, ferrite, fluor, medicine, flavoring, agar, and other chemical products, fertilizer, feed and so on.
Features
The mount of air ,temperature of heat ,stay time of raw material can be adjusted in order to get the best effect.
The customer can set the moistrue of finished product through adjusting the mount and stay time of material.
The raw material is relative static in belt, and so the shape of material will be keeped., and the dust can be collected through setting breeze on the pipe or dust Filter with cloth bag.
The belt’s type will be choose , such as metallic mesh or viberated plate.
The belt can be clean,because of the heating room  is seperated from drying room.
Accoding to request, the low plate can be equipped cleaning equipment to remove a little raw materials to outlet.
 According the moisture of raw material,customer can choose multi-set to establish.
TECHNICAL PARAMETERS


Model
DWD-1.2×8
DWD-1.2×10
DWD-1.6×8
DWD-1.6×10
DWD-2×8
DWD-2×10
Item
Area of dry (m 2 )
9.6
12
12.8
16
16
20
Drying section length x belt width (m)
1.2×8
1.2×10
1.6×8
1.6×10
2×8
2×10
Quantity of unit
4
5
4
5
4
5
Tem. of operation(°C)
50-150
Steam pressure(Mpa)
0.2-0.6
Steam consumption(Kg/h)
120-250
150-375
150-375
170-470
225-600
450-1200
Drying time (h)
0.2-1.5
0.25-1.5
0.2-1.5
0.25-1.5
0.2-1.5
0.25-1.5
Evaporating capacity (Kg/H2O)
60-160
80-220
75-220
95-250
100-260
120-300
Power (kW)
11.4
13.6
11.4
13.6
19.7
21.7
Overall dim.(LxWxH) (m)
9.77×1.5×2.83
11.77×1.5×2.83
9.77×2.44×2.83
11.77×2.24×2.83
9.77×2.66×3.50
11.77×2.66×3.50
Weight (Kg)
4800
5780
5400
6550
6350
7800
