Food online > Products > Food Processing Machinery > Packaging Machine >

DXD-520C Fully-Automatic Combiner Measuring Packaging Machine,China price supplier

DXD-520C Fully-Automatic Combiner Measuring Packaging Machine

FOB Price:Price can be negotiated

Update Time:2024-08-13

Contact Supplier

Product Description

Name: Mary Zhu

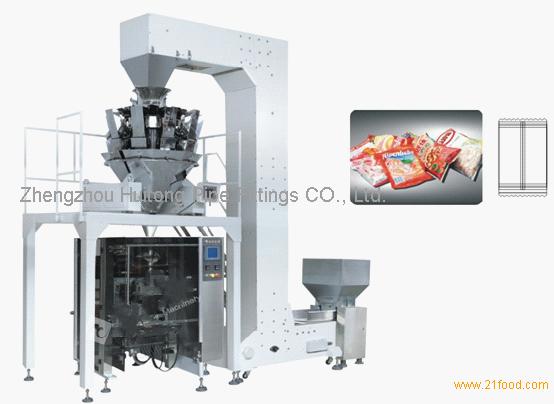

DXD-520C Fully-Automatic Combiner Measuring packaging machine

Use:

Suitable for automatic packaging particle materials like all kinds of fried food, potato chips, shrimp, sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee beans, lima beans, tea, jelly, frozen food, chicken essence, sugar, salt.

Feature:

1. Imported PLC control system, simple-operating, visual touch screw.

2. Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation.

3. Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.

4. Perfect automatic alarming protective function, reduce the consumption up to the lowest.

5. When the machine is combined with metering equipments, full packaging process including automatic feeding , metering, bag filling, date printing and automatic counting is completed.

6. Type of bag making: according to customer's demand, the machine can produce pillow bags, punched hanging bags.

Main Technical Parameter

Model	DXD-520C	DXD-620C
Packing speed(bags/min)	15-70 bags/min	15-60 bags/min
Bag-making size(mm)	(L) 80-350mm (W) 80-250mm	(L) 80-400mm (W) 80-280mm
Filling range(g)	10-2000g	50-5000g
Packing material	OPP/CPP PET/ PE PET-AL/PE	OPP/CPP PET/ PE PET-AL/PE
Film width(mm)	180-520mm	180-600mm
Film thickness(mm)	0.04-0.08mm	0.04-0.08mm
Air consumption	0.36m³/min 0.6MPa	0.6m³/min 0.6MPa
Power supply(V-Hz-kw)	AC220V/380V 50/60Hz 3.5kw	AC220V/380V 50/60Hz 3.5kw
Machine dimensions(mm)	(L)1750(W)1350(H)1650+2000mm	(L)2150(W)1400(H)1750+2000mm
Machine weight(kg)	650kg	800kg

Other Products

HDLY series of high-capacity oil filling machine

SJIII-S series of automatic semiliquid packing machine

DXD-420A Automatic Paticles Packaging Machine

DXD-420C Fully- Automatic Combiner Measuring Packaging Machine
