triangle Tea bag packing machine
1.sealing by ultrasonic
2.Capability: 30-60bag/min
3.Filling rang:2-10ml
4.PLC controller
Application:
This machine is suitable for automatically packing tea in Triangle bags.
Characters:
1.Using Ultrasonic sealing,can packing teabag with good look.
2.Packaging capacity :3000bags/h (Determined by packing material).
3.Can be used in packing teabag with line label.
4.Cylinder Push-pull material feeding

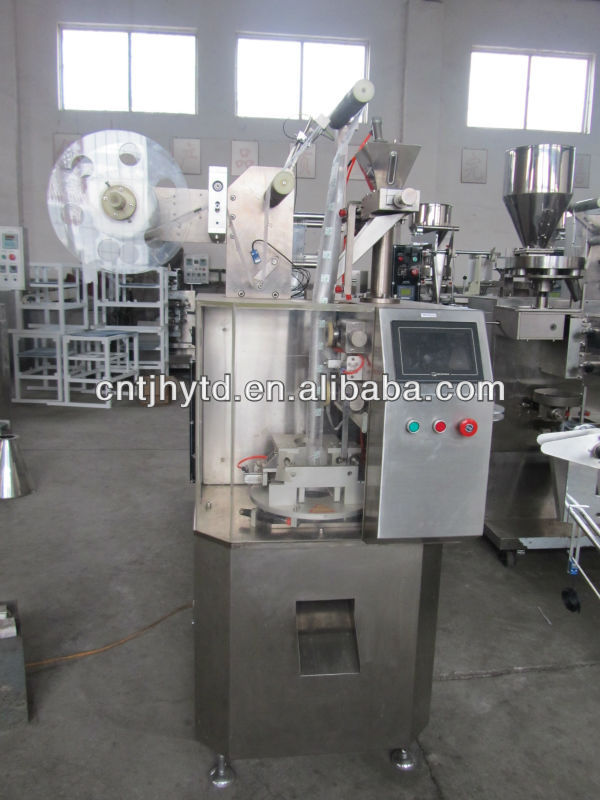

DXDK-40WZM machine
Optional device: the bucket type feeder, four head electric scale

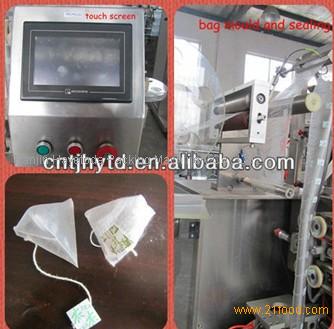

sample bag
| Serial No. |
Item |
Indicators and notes |
| 1 |
The production rat |
40-50bas/min |
| 2 |
Measurement methods |
Skateboard-style volume method |
| 3 |
Sealing the form |
Seal & cut in three direction by ultrasonic wave |
| 4 |
Packaging shape |
Glide volumetric metering (standard installment) or load cell weight measurement. |
| 5 |
Packaging material |
Nylon, polyester mesh, non-woven fabrics, ultrasonic sealing materials. |
| 6 |
Size of the teabag |
Broach: 50-80mm Even bag: 60-90(W)*40-80(L)mm Use packing material width: 120mm, 140mm, 160mm, and 180mm |
| 7 |
Machine size |
(W*L*H)700*850*1800mm |
| 8 |
Volume let diameter |
less 350mm |
| 9 |
Particle content |
2±0.5g/bag (other specifications can be customized) |
| 10 |
Rolls diameter paper core |
76mm |
| 11 |
Built-in electric pressure |
more 0.6Mpa(by the custom side with 3Kw motor, V-0.36/7 to the air compressor) |
| 12 |
operators |
1 |
| 13 |
Machine weight |
450Kg |
Packing(fumigation wooden case):
Sale-after service:
Warranty: One year since the date of delivery. with the free damaged spare parts.
Test: to test the machine first when the machin already ready.
Other: The English manual book, and operation steps video to make sure you can easy to use the machine.
Welcome to visit our factory, then test the machine and learn how to operate the machine at any time.

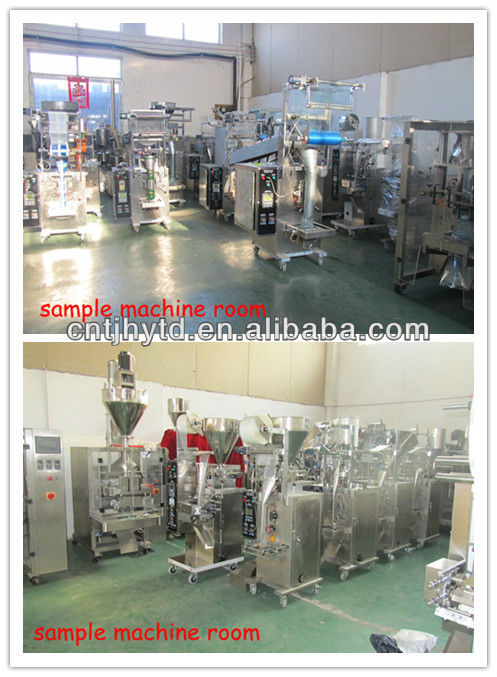

Our work room:
Our clients from all over the world:
Tianjin Hayetoda Packing Machinery Co., Ltd. is located in the Beichen Technology Industrial Park in Tianjin, which is the home to one of the main deepwater harbors in northern China. Therefore, we enjoy convenient transportation and can ship your goods in a timely manner after confirmation.
Since the establishment in 1999, we have rapidly grown from a small enterprise into a main supplier of packing machinery. Boasting an expert R&D team, we are continually developing new models according to the latest market needs. We now specialize in the supply of granular, powder, sauce and liquid packing as well as tea bags.
