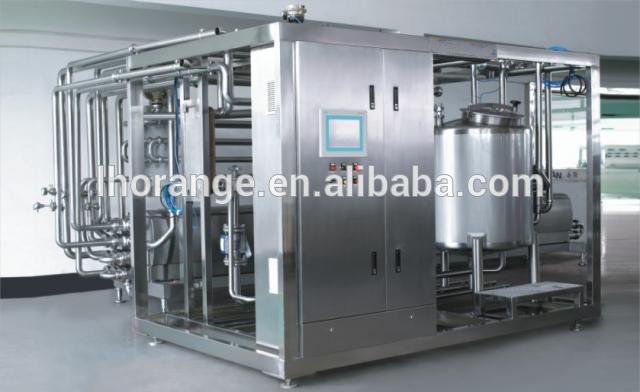

Full automatic Tubular UHT disinfestion Machine
1.Simple operation&high production efficiency
2.High reliability
3, CE ISO
Full automatic Tubular UHT disinfestion machine
Brief introduction:
1.High reliability
2.High quality finished products
3.Reasonable structure design,high pressure resistance and simple and convenient maintenance
4.Long operation time.
5.Simple operation and high production efficiency
6.Self-provided CIP cleaning system,which can realize automatic clear sight in the process at any time.
7.Simple and convenient maintenance.
8.The manufacturing materials are completely in accordance with GMP standard for food factories and GTAW welding standard.
9.The equipment can be designed into electrical appliance controlled type according to customers ’ requirements of sterilizing temperature of products.
Technical Parameters:
Model |
OR-1T |
OR-2T |
OR-3T |
OR-4T |
OR-5T |
OR-6T |
OR-8T |
OR-10T |
Production capacity (T/H) |
1 |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
Heat exchanging area (m2) |
20 |
28 |
35 |
45 |
52 |
60 |
75 |
88 |
Material inlet temperature ( ° C) |
≤ 15 |
≤ 15 |
≤ 15 |
≤ 15 |
≤ 15 |
≤ 15 |
≤ 15 |
≤ 15 |
Material outlet temperature ( ° C) |
≤ 25 |
≤ 25 |
≤ 25 |
≤ 25 |
≤ 25 |
≤ 25 |
≤ 25 |
≤ 25 |
Designed temperature ( ° C) |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
Heat preservation time |
5s |
5s |
5s |
5s |
5s |
5s |
5s |
5s |
Inlet temperature of ice water ( ° C) |
≤ 2 |
≤ 2 |
≤ 2 |
≤ 2 |
≤ 2 |
≤ 2 |
≤ 2 |
≤ 2 |
Multiple of ice water |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
Multiple of cooling water |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
Multiple of hot water |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Steam inlet pressure (Mpa) |
≥ 0.5 |
≥ 0.5 |
≥ 0.5 |
≥ 0.5 |
≥ 0.5 |
≥ 0.5 |
≥ 0.5 |
≥ 0.5 |
Maximum steam consumption (kg/h) |
200 |
250 |
330 |
410 |
480 |
550 |
650 |
780 |
Weight (kg) |
1600 |
2000 |
2400 |
2600 |
2800 |
3000 |
3800 |
4200 |
Processing: |
Sterilizer,standard
|
Condition: |
New
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
Orange"> orange
|
Model Number: |
OR
|
Processing Types: |
Juice Beverage"> milk juice Beverage
|
Voltage: |
220v
|
Power(W): |
7.5
|
Weight: |
1600
|
Dimension(L*W*H): |
600*700*1200
|
Certification: |
iso,CE ISO
|
Warranty: |
one year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
TYPE: |
Full automatic Tubular UHT disinfestion machine
|
original place: |
henan china
|
