Easy Open End,Easy Open Lid Production Line,China price supplier

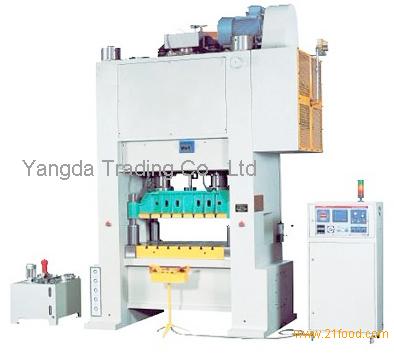

Easy Open End,Easy Open Lid Production Line

FOB Price:Price can be negotiated

Update Time:2021-08-29

Product Description

Features:
Crank Transmission
Welded steel plate Integral body with high rigidity
Hydraulic-pressure overload protection device
Precision straight rail
Digital mode adjusting and displaying
Lift balancing cylinder device
Japanese dual valve
Imported pneumatic units
Imported PLC
Imported button, indicator light, AC contactor, air switch, etc.
Imported cam gear
*Optional for the transducer, so that to adjust the stroke frequency

Production process:
1. Make Base End
2. Make Ring
3. Wash Ring
4. Connect the End and Ring
5. Lining and Drying
6. 200-2,200 pcs/Min.

Specifications Code Mark (R) Unit TY-125
Nominal Capacity Pe KN 1250
Nominal Force Stroke Sp mm 3
Side Stroke S mm 30
Stroke Frequency n Times/min 200-500
Motor Power Kw 30
Pressure of air supply Mpa 0.5
Max. die set height mm 400
Die set height adjustment mm 50
Worktable dimensions (F. B*L. R) mm 11,400*1,300
Hole dimensions in pouch (F. B*L. R) mm 200*1,000
Feeding height mm 180 ± 15
Outline dimension mm 2,800*1,900*3,200
Approx. Weight Kg 22,000
