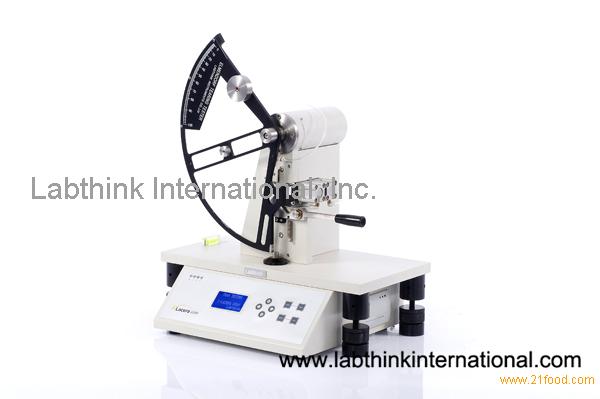

Elmendorf Tear Strength Tester ASTM D1922,China Labthink price supplier

Elmendorf Tear Strength Tester ASTM D1922  is designed for determination of tearing resistance properties of flexible PVC, POF, PET, composite films, sheets, paper or paper board, textiles and non-woven and etc. It could not be used to test nylon, extensional films and other rigid materials.

Elmendorf Tear Strength Tester ASTM D1922 can be used with our advanced Online Data Management System for packaging testing, which comes with two versions to meet distinct needs of our clients: The Cloud Version & The Intranet Version

Features:
1.Adjustable test range and electronic measurement make it possible to perform tests at various test conditions.
2.Pneumatic specimen clamping, pendulum release mechanism and horizontal adjustment system effectively reduce the errors caused by human operation.
3.Automatic statistics of testing data for clients convenient viewing.
4.Elmendorf Tear Strength Tester ASTM D1922  is easily controlled by micro-computer with menu interface, PVC operation panel and large LCD display.
5.Equipped with micro printer for convenient data transmission.

Application：
1.PVC, POF, polyester, composite films and sheets
2.Paper and paperboard
3.Textiles and non-woven fabrics
4.Aluminum foils and aluminum composite films
5.Waterproof composite materials

Technical Specification:
Pendulum Capacity 200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400g f
Gas Supply Pressure 0.6 MPa (outside of supply scope)
Energy Analysis Accuracy ±0.5%

Test Principle:
Elmendorf Tear Strength Tester ASTM D1922 conforms to the following standards:ASTM D1922, ASTM D1424, ASTM D689, ISO 6383-1-1983, ISO 6383-2-1983, ISO 1974, GB/T 16578.2-2009, GB/T 455-2002, TAPPI T414
