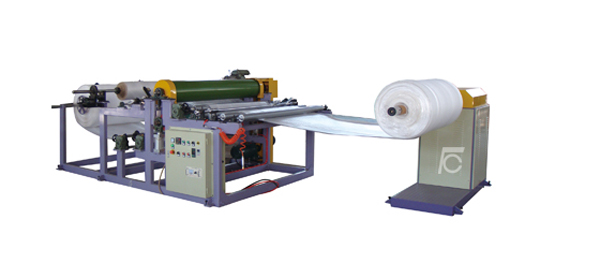

EPE Foam Sheet Laminating Machine(FC-1200)

FOB Price:Price can be negotiated

Production Capacity:100 set per year

Payment Terms: FOB

Update Time:2025-02-20

Contact Supplier

Product Description

EPE Foam Sheet Laminating MachineIntroduction:

FC-FM EPE Foam Sheet Laminating Machine is a kind of deeply-processed equipment for EPE foam sheet. It is to make laminated product with PE film or aluminum foil. The EPE laminated foamed sheet can improve the intensity with the features of damp proofing, waterproofing and good surface. Furthermore, it can print words and pictures on surface, and further improve the quality and applications. It can be used in the packing of inner, precision instrument, top-grade porcelain and so on.

FC-FM laminating machine is mainly use heat conducting oil as heat transfer medium, symport sheets and films. It has the strengths of good effects of ginning and laminating, high efficiency, easy to operate.

Structural Properties of EPE Foam Sheet Laminating Machine

1 . The laminating machine made by four parts: Roll-placer, Expand, Heat laminate, Winder;

2. The main part of EPE Foam Sheet Laminating Machine is controlled by frequency, the power is 1.5KW;

3. Material of heating roll: STPG steel, coat Teflon on the surface. It is durable and not adhesions film; The size of roll surface is 1600mm*270 diameter. Tempreture of roll is 120-150centigrade, thickness 1mm-50mm.

4. Heating Roller includes 6 heating pipe which ensure the roller heating evenly by heating oil.

5. The winder controlled by torque motor and pneumatic shaft

Machine Unit of EPE Foam Sheet Laminating Machine:

1: Heating roller:

Size: Size of laminating— Heating roller: 270mm× 1600mm

Laminating— Roller Pressure: 3-7kg/cm2

Laminating material: Surface treatment by teflon

Heating Method: Electric heating

There is conducting hot oil inside laminating roller, the conducting effect is very good.

Temperature of hot roller: 90-130

Heating power: 18KW

2: Rubber Roller:

Size of rubber roller: 270mm*1600mm

Rubber hardness: HS-A700

Drive power: 1.5KW

3: Winding motor: 8N. M

4: Expending roller:

100mm× 1600mm× 1set

5: Winding unit torque motor control

Driving method: Gear box driven by motor, direct transmission, easy operation, safety and beauty.

6: Control unit:

Electric control cabinet one set

For temperature control: Adopt high accuracy intelligent temperature controller, set PID controller inside, guarantee the working temperature control accuracy for motor control: Adopt inveter control it. Adjust and choose rotating speed by working condition

Equipped with meter counter. Length can be freely set as needed. After reaching the set length, meter counter will give signal. Signal ringing.

Light curtain protection unit one set, if the body or something will enter into the gap of heating roller carelessly, the curtain will send a signal to make the rollers separate to ensure body safe and equipment undamaged.

Structural Properties of EPE Foam Sheet Laminating Machine

1. The laminating machine made by four parts: Roll-placer, Expand, Heat laminate, Winder;

2.T he main part of EPE Foam Sheet Laminating Machine is controlled by frequency, the power is 1.5KW;

3. Material of heating roll：STPG steel, coat Teflon on the surface. It is durable and not adhesions film; the size of roll surface is 1600mm*270 diameter. tempreture of roll is 120-150centigrade，thickness 1mm-50mm。

4. Heating roller includes 6 heating pipe which ensure the roller heating evenly by heating oil.

5. The winder controlled by torque motor and pneumatic shaft

products of EPE Foam Sheet Laminating Machine：

EPE Foam Sheet Laminating Machine：

The main products of EPE Foam Sheet Laminating Machine：

Please contact me:My name is Lewis and I work with Longkou FuChang Packing Machinery Co.,Ltd. .We are factory specializing in the manufacture and export of paper pulp moulding machine ,Egg tray machine, epe foam sheet extruder ,epe foam fruit net/pipe extruder etc since 1995.Our egg tray machine and epe extruder machine have acquired the CE Certification

Main Technical Parametersof EPE Foam Sheet Laminating Machine:

Model		FC-1200	FC - 1500	FC - 1800
Product W idth	mm	1200	1500	1800
Heating Method		Electrical heating
Driving P ower	kw	1.5	2.2	2.2
Installed P ower	kw	15	18	20
Dimension	m	4 .5x1.8x1.8	4 .5x 2 . 2 x2.0	5 .0x2.4x2.2
Total W eight	t	2	2	2.5
