etp/tinplate sheet/tinplate coil made in china,China kemao price supplier

Technical Standard

GB/T2520-2008, JIS G3303-2008

Steel Type

SPCC

Thickness

0.15 to 0.5mm

Coil Inner Diameter

508 mm

Roll width

600 to 980 mm

Cutting length

600 to 1200 mm

Tin coating weight

2.8/2.8, 2.8/5.6, 5.6/5.6 gr/m² or according to customer's requirement

Temper and Annealing

T2, T2.5, T3, T3.5, T4,T5 ,DR8,DR9 BA

Surface Treatment

Bright/Stone/Silver finish with passivation treatment; DOS oil

Quality

Prime; Pinhole-free

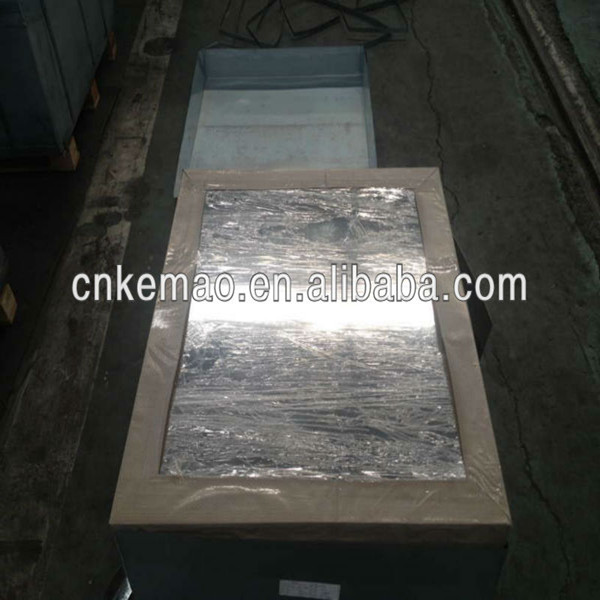

Packaging Details:

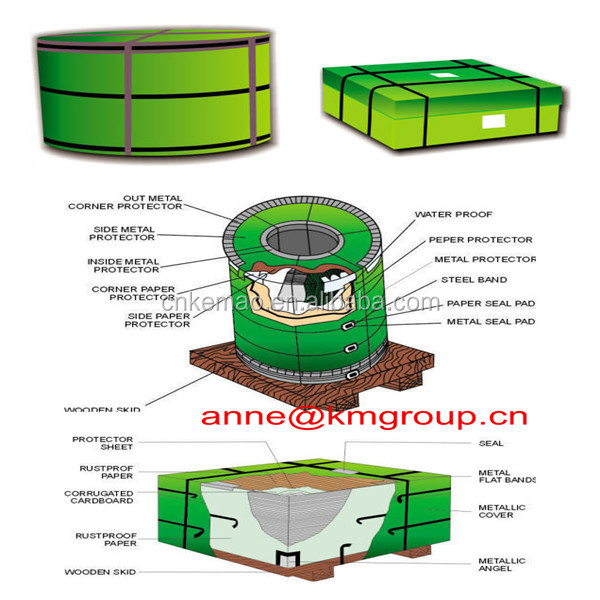

Thin plastic film+rust-proof paper+metal cover+metal angles+straps+pallet
Loaded in 20 feet container with max weight of 25 tons.

Application:
Widely used for metal packaging industry.

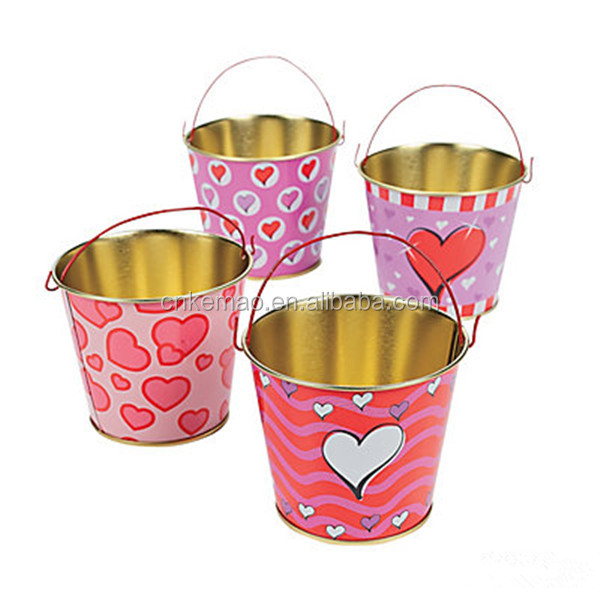

Such as making cans for food, tea, oil, paints, chemicals, aerosol, gifts, printing and other purpose.

Standard for temper

Chinese Standard

Japanese Standard

American Standard

European Standard

GB/T 2520-2008

JIS G3303-2008

ASTM A623M-06a

DIN EN10202-2001

T-1

T-1

T-1 (T49)

TS230

T1.5

—

—

—

T-2

T-2

T-2 (T53)

TS245

T-2.5

T-2.5

TS260

T-3

T-3

T-3 (T57)

TS275

T-3.5

—

—

TS290

T-4

T-4

T-4 (T61)

TH415

T-5

T-5

T-1 (T65)

TH435

DR-7M

—

DR-7.5

TH520

DR-8

DR-8

DR-8

TH550

DR-8M

—

DR-8.5

TH580

DR-9

DR-9

DR-9

TH620

Tin coating weight

Type

Designation of tin       coating weight

Min.average tin coating weight(g/m2)

Former Coating Designation

Equal tin coating

1.4/1.4

1.2/1.2

#15

2.2/2.2

2.0/2.0

#20

2.8/2.8

2.45/2.45

#25

5.6/5.6

5.05/5.05

#50

8.4/8.4

7.55/7.55

#75

11.2/11.2

10.1/10.1

#100

Differentially Coating

1.4/2.8

1.2/2.45

#15/25

2.2/2.8

2.2/2.45

#20/25

2.8/5.6

2.45/5.05

#25/50

2.8/8.4

2.45/7.55

#25/75

2.8/11.2

2.45/10.1

#25/100

5.6/8.4

5.05/7.55

#50/75

5.6/11.2

5.05/10.1

#50/100

8.4/11.2

7.55/10.1

#75/100
