Fabric Thickness Tester Labthink,China Labthink price supplier

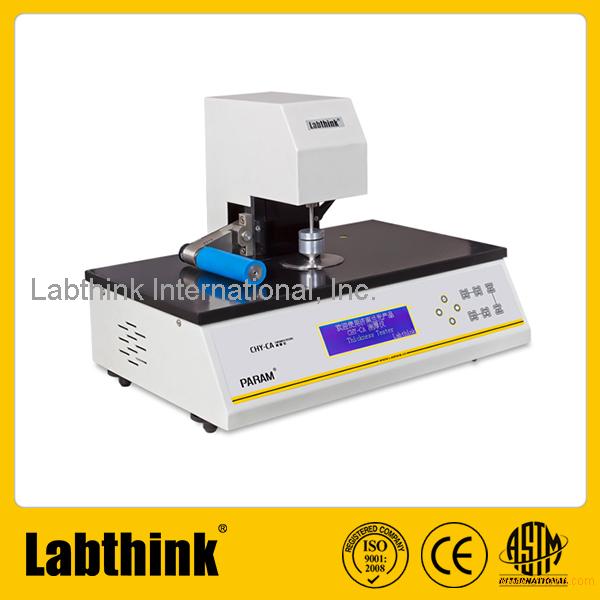

Fabric Thickness Tester Labthink  is designed based on the mechanical contacting method, which effectively ensures standard and accurate test data and applicable to thickness test of plastic films, sheets, diaphragms, paper, foils, silicon wafers and other materials within specified range.

Fabric Thickness Tester Labthink is applicable to the determination of thickness of:

• Contact area and pressure are strictly designed according to standard requirements, while customization is also available
• Automatic lifting presser foot facilitates to minimize system errors that caused by human factors during the test
• Manual or automatic operating mode for convenient test
• Automatic specimen feeding, specimen feeding interval, number of testing points and specimen feeding speed could be preset by the user.

• Specifications	CHY-CA
  Test Range	0~2 mm (standard) 0~6 mm, 12 mm (optional)
  Resolution	0.1 μm
  Test Speed	10 times/min (adjustable)
  Test Pressure	17.5±1 KPa (film) 50±1 KPa (paper)
  Contact Area	50 mm 2 (film) 200 mm 2 (paper) Note: Select one presser foot for film or paper; Customization is available
  Specimen Feeding Interval	0 ~ 1000 mm
  Specimen Feeding Speed	0.1 ~ 99.9 mm/s
  Instrument Dimension	461 mm (L) x 334 mm (W) x 357 mm (H)
  Power Supply	AC 220V 50Hz
  Net Weight	32 kg




Labthink instruments have been widely used and recognized by more than 6,000 scientific institutional laboratories, inspection organizations, and universities and corporate quality control departments.

Labthink is dedicated to providing professional consulting, testing instruments, support services, and quality assurance solutions for packaging in various fields.
