1.Certification:CE ISO
2.The speed of filling is fast
3.The liquid amount is controlled accurately
4.Its automation is high
The customer is supreme,
honest to win the world
Manufacturer with beverage production line
for more than 20 years
alibaba china supplier of beverage machine !!!
zhangjiagang keyuan filling Machine/beverage production line
*High quality machine
*Best price for customer
*design according your requirement
*one year warranty for whole system
*free equipment installation and debugging
Products Description
Model: |
RGF18/12/6 |
RGF18/18/6 |
RGF24/24/8 |
RGF32/32/10 |
RGF40/40/12 |
RGF48/48/12 |
|
Production Capacity:500ml(B/h) |
4000 |
6000 |
10000 |
14000 |
17000 |
20000 |
|
Suitable Bottle Standard:(mm) |
150-300 |
150-340 |
150-340 |
150-340 |
150-340 |
150-340 |
|
Suitable Cap Standard:(mm) |
φ 50- φ 110 |
||||||
Filling Pressure:(Mpa) |
0.2-0.3 |
||||||
Filling Model: |
by Gravity Constant pressure filling |
||||||
Installed Capacity:(L) |
3.13 |
3.84 |
3.84 |
5.6 |
6.3 |
7.3 |
|
Overall SizeL × W × H(mm) |
2400 × 1670 |
2470 × 1970 |
2865 × 2170 |
3700 × 2570 |
3800 × 2950 |
4500 × 3400 |
|
Total Weight:(kg) |
2500 |
3000 |
4000 |
5000 |
6000 |
7000 |
Sample Exhibition
1.)These series of machines integrate washing,filling and capping into one unit,
2.) can be used for different kinds of fruit juices/tea hot drink production.
3.)With only a few parts changed,the machine can also be used for mineral water and pure water filling.

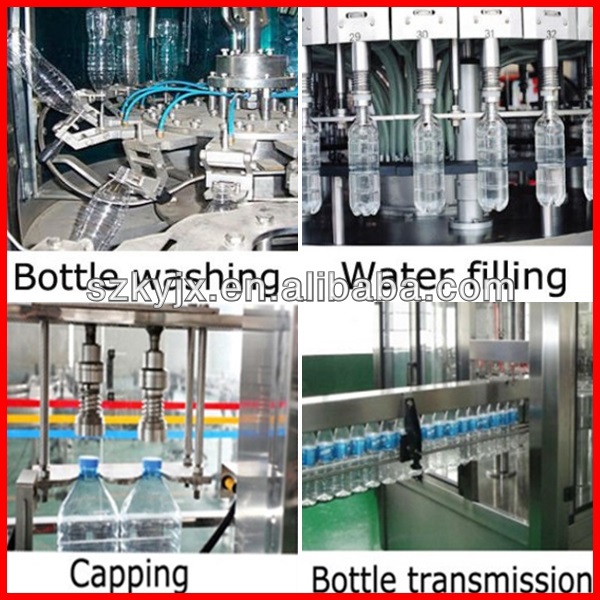

a. Washing part:

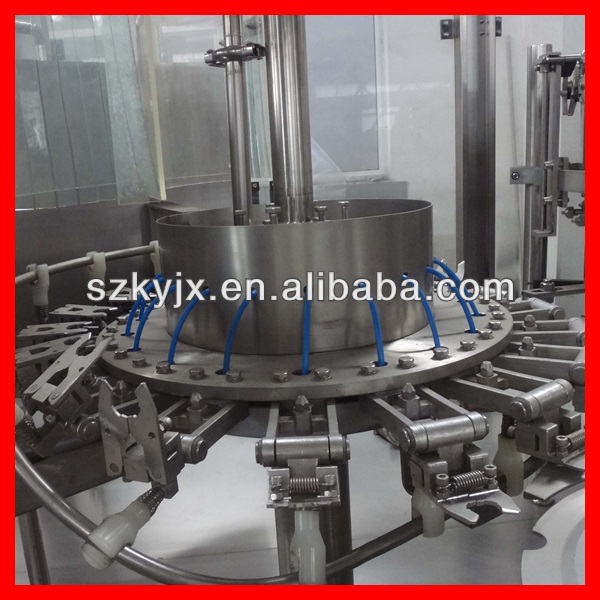

This machine adopts rotany waching method,mainly used for water new bottle rinsing purpose,and then sent the bottles to filling part.
Filling Machine with more than 20years of experience" ori-width="600" ori-height="600" />

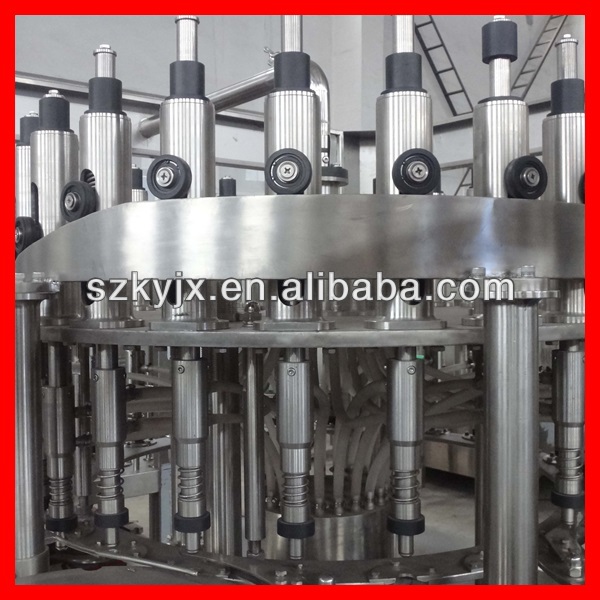

b . Filling part:
This part is mainly used for filling water after finishing bottle rinse.

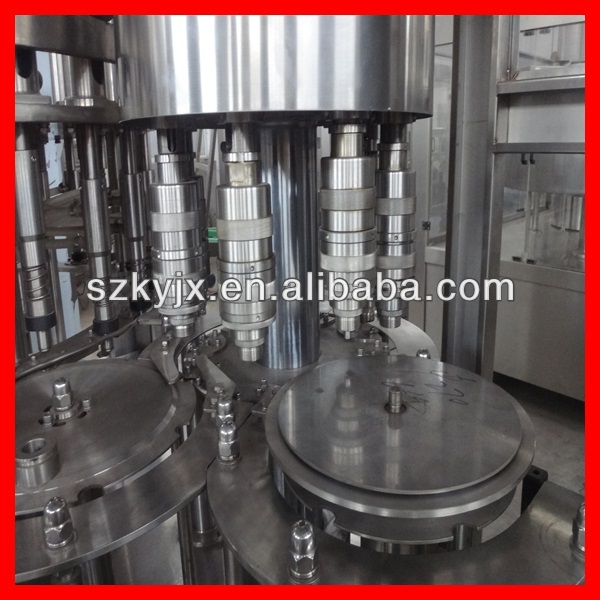

c. Capping part:
This part is mainy use the cap that ordering in cap unscrambler,and capping on the finished fill bottle,and then deliver to the followed procedure
Sample Exhibition

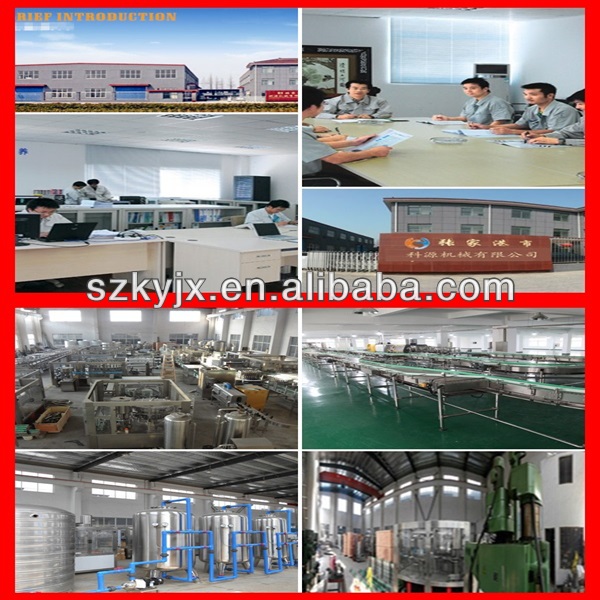

our Factory and workshop
Our Partner
Packing and Loading
Quality Degree
Trade & Market
Main market:
North America/South America/Southeast Asia/
Africa/Mid East/South Asia
Main customers:
Mexico/ Brazil/ USA/ Egypt/
Morocco/ Colombia/ Vietnam/Venezuela
Our Service and Working Process
Pre- sales Phase: we have sales representative to communicate with our client to understand client needs and based on our experience, capacity to initiate the draft proposal for our client review. With the proposal review, analysis and improvement, we will finalize our proposal with our clients.
Production Phase: We have very strong filing machine business experience and downstream/upstream partnership. Under the criteria of customized quality, our good production scheduling will make sure our client filling machine will be delivered in time.
After sales service :
1.one year warranty for the whole system ,
2.free equipment installation and debugging ,
3.we can provide internship service and help you train the operator and mechanic ,
4.we can help you to design the product line,workshop and provide turn-key project ,
5.24 hours technical support by email .
Company Information
We specialize in manufacturing beverage production line, including packaging machinery, beverage processing machinery, filling machine, Water treatment equipment, packing machine, beverage machine, bottling machine, Blowing machinery and so on.A nd the production line with more than 20years of experience .
If you have any special needs,our manufacture also can design the machines according your requirement!!!!
Type: |
Filling Machine
|
Condition: |
New
|
Application: |
Beverage
|
Packaging Type: |
Cans,Bottles
|
Packaging Material: |
Wood
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Place of Origin: |
Jiangsu China (Mainland)
|
Brand Name: |
keyuan filling machine
|
Model Number: |
RCGF filling machine
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
