factory price automatic bottled mineral water /pure water/coconut water filling machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month KEYUAN Filling M

Update Time:2023-04-19

Contact Supplier

Product Description

automatic bottled Mineral Water
Fast delivery
Hot sale
Good quality

Specifications

1) Speed: 3000-36000
2) Rinsing-Filling-Capping 3 in 1

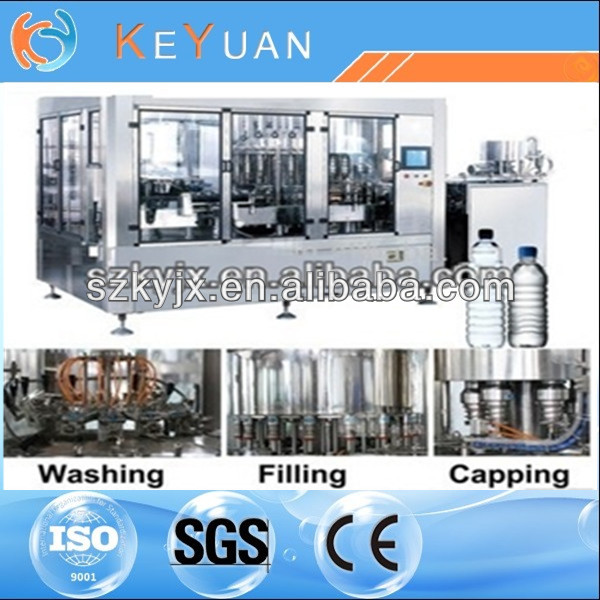

Automatic 3 in 1 Monobloc Water Filling Machine

Keyuan QGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. keyuan QGF mineral water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the mineral water filling production line.

1) Feature

The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
Spring type rinsing catcher can wash both inside and outside of the bottle
High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
Magnetic powered cap device ensures tightness and prevents damage of the caps
Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
Built-in safeguard mechanism ensures the safety of operator and machine.
High efficient air clean filter system ensures high sanitary requirements
Low overall machine noise
Self-lubricating system imported from America provides continuous smooth operation

2) Technical Parameter

	QGF-3000	QGF-6000	QGF-12000	QGF-15000	QGF-18000	QGF-24000
Productivity	1500-4000 BPH	3000-8000 BPH	3000-12000 BPH	4000-18000 BPH	6000-18000 BPH	8000-24000 BPH
Rinsing Head	18	18	24	32	40	50
Liquid Filling Head	12	18	24	32	40	50
Capping Head	6	6	8	10	12	15
Bottle Volume	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml	350ml~2000ml±10ml
Bottle Diameter	φ50-90 mm	φ50-90 mm	φ50-90 mm	φ50-90 mm	φ50-90 mm	φ50-90 mm
Bottle Height	150-310 mm	150-310 mm	150-310 mm	150-310 mm	150-310 mm	150-310 mm
Filling Tolerance	±2%	±2%	±2%	±2%	±2%	±2%
Cap Size	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps	28mm and 30mm PE Standard Caps
Air Pressure	0.5 MPa	0.5 MPa	0.5 MPa	0.5 MPa	0.6 MPa	0.5 MPa
Air Consumption	500 L/min	500 L/min	500 L/min	500 L/min	500 L/min	500 L/min
Filling Water Consumption	1.5 m ³ /h	3 m ³ /h	6 m ³ /h	7.5 m ³ /h	9 m ³ /h	9 m ³ /h
Rinsing Water Consumption	0.5 m ³ /h	1 m ³ /h	2 m ³ /h	2.5 m ³ /h	3 m ³ /h	3 m ³ /h
Motor Power	3.5kW	3.5kW	4kW	7.5kW	7.5kW	7.5kW
Voltage	380V	380V	380V	380V	380V	380V
Dimension	(L×W×H) 2640×1520×2340mm	(L×W×H) 2816×1883×2340mm	(L×W×H) 3194×2054×2560mm	(L×W×H) 3937×2846×2560mm	(L×W×H) 4940×3755×3200mm	(L×W×H) 4940×3840×3200mm
Weight	2500kg	3000kg	5300kg	8000kg	12000kg	13000kg
Filling Principle	Gravity Filling	Gravity Filling	Gravity Filling	Gravity Filling	Gravity Filling	Gravity Filling

Rinsing-Filling-Capping 3 in 1 Water Filling Machine

WELCOME TO ZHANGJIAGANG KEYUAN MACHINERY

If you are looking filling machine,don't hesite to connect us please !!! We will offer you more infomation about our factory~~

Type:	Filling Machine	Condition:	New	Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
Packaging Type:	Cartons,Cans,Bottles,Barrel,Stand-up Pouch,Bags,Pouch,Capsule,Case	Packaging Material:	Plastic,Paper,Metal,Glass,Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	110V 220V 380V	Power:	9.78KW
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	KEYUAN Filling Machine	Model Number:	QGF
Dimension(LWH):	220020002200	Weight:	4500kg	Certification:	CE ISO
After-sales Service Provided:	Engineers available to service machinery overseas	Model:	Filling Machine	Guarantee:	1 Year
Feature:	Fruit juice/pure water/soy and so on
