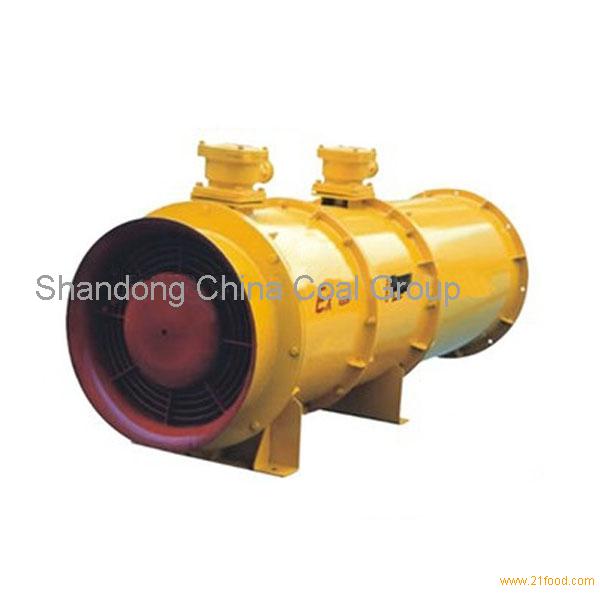

FBD Series explosion-proof Axial Fan for Tunnel and Coal Mine
· Application: Best choice ventilation fan for under mining coal, deep tunnel/ metal mining/ engineering tunnel
Chinacoal05
· Function: far distance ventilation, big power ventilation, low noisy, high efficiency, energy-saving, various style available
· Temperature range:-20°C~+40°C
FBD Series explosion-proof Axial Fan for Tunnel and Coal Mine Feature:
1. The product is composed of explosion-proof motor, vanes, air duct and others;
2. It's in low noise, low consumption and perfect performance;
3. Besides being used for ventilation and exhausting, it also can be installed in series to improve the pressure in pipe;
4. The enclosure material can be armor plate or Fiber fl o ss reinforced plastic;
5. Wiring with cable.
| NO.
|
Rotate /min
|
Motor model
|
Power kW
|
Pressure( V)
|
DC current (A)
|
Air capacit y m3/min
|
Pressure (Pa)
|
Highest efficiency(%)
|
A sound Level(dB)
|
| 4.0
|
2900
|
YBF2-90L-2
|
2×2.2
|
380/660
|
4.85/2.79
|
136~89
|
256~2050
|
≥75
|
≤30
|
|
|
|
YBF2-100L-2
|
2×3
|
380/660
|
6.4/3.7
|
150~100
|
325~2500
|
≥75
|
≤30
|
|
|
|
YBF2-112M-2
|
2×4
|
380/660
|
8.1/4.7
|
165~109
|
375~3040
|
≥75
|
≤30
|
| 5.0
|
2900
|
YBF2-112M-2
|
2×4
|
380/660
|
8.1/4.7
|
217~145
|
275~2060
|
≥75
|
≤30
|
|
|
|
YBF2-132S1-2
|
2×5.5
|
380/660/1140
|
11.1/6.4/3.7
|
240~161
|
325~2540
|
≥75
|
≤30
|
|
|
|
YBF2-132S2-2
|
2×7.5
|
380/660/1140
|
14.8/8.66/4.97
|
266~178
|
400~3155
|
≥75
|
≤30
|
| 5.6
|
2900
|
YBF2-132S2-2
|
2×7.5
|
380/660/1140
|
14.8/8.66/4.97
|
286~188
|
275~2850
|
≥80
|
≤25
|
|
|
|
YBF2-160M1-2
|
2×11
|
380/660/1140
|
21.6/12.6/7.2
|
324~215
|
375~3690
|
≥80
|
≤25
|
|
|
|
YBF2-160M2-2
|
2×15
|
380/660/1140
|
28.8/17.0/9.6
|
400~236
|
1107~4500
|
≥80
|
≤25
|
| 6.3
|
2900
|
YBF2-160M2-2
|
2×15
|
380/660/1140
|
28.8/17.0/9.6
|
410~237
|
400~4775
|
≥80
|
≤25
|
|
|
|
YBF2-160L-2
|
2×18.5
|
380/660/1140
|
35.5/20.5/11.8
|
442~256
|
460~5475
|
≥80
|
≤25
|
|
|
|
YBF2-180M-2
|
2×22
|
380/660/1140
|
41.0/24.4/13.67
|
468~274
|
525~6125
|
≥80
|
≤25
|
|
|
|
YBF2-200L1-2
|
2×30
|
380/660/1140
|
56.9/32.9/18.5
|
518~318
|
640~7310
|
≥80
|
≤25
|
| 7.1
|
2900
|
YBF2-200L1-2
|
2×30
|
380/660/1140
|
56.9/32.9/18.5
|
608~352
|
523~6228
|
≥80
|
≤25
|
|
|
|
YBF2-200L2-2
|
2×37
|
380/660/1140
|
67.9/40.3/22.6
|
650~350
|
608~7100
|
≥80
|
≤25
|
|
|
|
YBF2-225M-2
|
2×45
|
380/660/1140
|
82.1/48.4/27.4
|
696~402
|
686~8161
|
≥80
|
≤25
|
| 8..2
|
2900
|
YBF2-225M-2
|
2×45
|
380/660/1140
|
82.1/48.4/27.4
|
817~473
|
605~7200
|
≥80
|
≤25
|
|
|
|
YBF2-250M-2
|
2×55
|
380/660/1140
|
102.6/59.3/34.3
|
874~506
|
692~8230
|
≥80
|
≤25
|
| 8.2
|
2900
|
YBF2-280S-2
|
2×75
|
380/660/1140
|
56.8/77/44.5
|
960~540
|
750~8600
|
≥80
|
|
Shandong China Coal Industrial&Mining Supplies Group Co.,Ltd (hereinafter referred to as china coal) is a group company, which is a collection of e-commerce, machinery manufacturing, software, research and development, modern logistics of large diversified industrial group. The group has 100 million yuan registered capital , with more than 1100 employees.
China coal is a professional manufacturing base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment, lifting equipment and other products, as well as research and development new product and mine construction products with advanced high technology.
