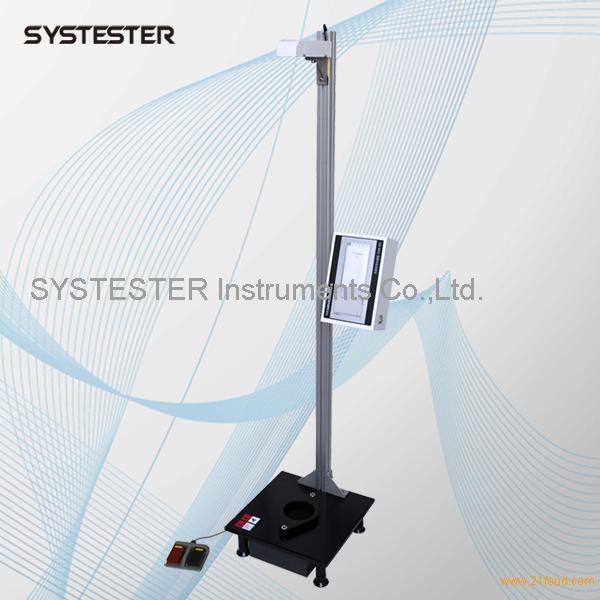

FDI-8001 Free-falling Dart Impact Tester applies to measure impact resistance properties of plastic films, paper, sheets and other relevant packaging materials using falling dart or ball method.
Standard:
ASTM D1709 --- standard test methods for Impact Resistance of Plastic Film by the Free-falling Dart Method.
JIS K 7124-1:1999 ---- Plastics Film And Sheeting - Determination Of Impact Resistance By The Free-falling Dart Method - Part 1: Staircase Methods
Main Features about FDI-8001:
1. Method A, method B, falling ball test available
2. Pneumatic clamp, foot pedal operation can be protected people from damage
3. Electromagnetic suspension and auto release of the falling ball/dart reduce results errors
4. Touch screen operation and TFT screen display curves are easy for the user to operate, as well as micro-printer built-in.
5. Historical data statistic and query function.
Falling dart impact tester Technical indexes:
| Test method
|
Method A, method B, others
|
| Result accuracy
|
0.1g(J)
|
| Sample clamp
|
Pneumatic
|
| Dart mass
|
Method A: 50~ 2000g
|
| Method B: 300~2000g
|
|
| Contour dimension
|
Method A: 450mm(L)*450mm(B)*1365mm(H)
|
| Method B: 450mm(L)*450mm(B)*2160mm(H)
|
|
| Gas source
|
less than 1.1MPa(provided for yourself)
|
| Sample size
|
not less 150mm*150mm
|
| Power supply
|
AC 220V 50Hz
|
| Net weight
|
55kg
|
Other product :
Universal tensile tester, Water vapor permeability tester, Gas transmission rate tester, Oxygen permeability tester, Coefficient of friction tester, thickness tester, Hest seal tester, Leakage tester
SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development. SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities as well as successful experience accumulation over 20 years. SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
SYSTESTER always make it as our strategic mission, that is “Your goal is just our goal”.
